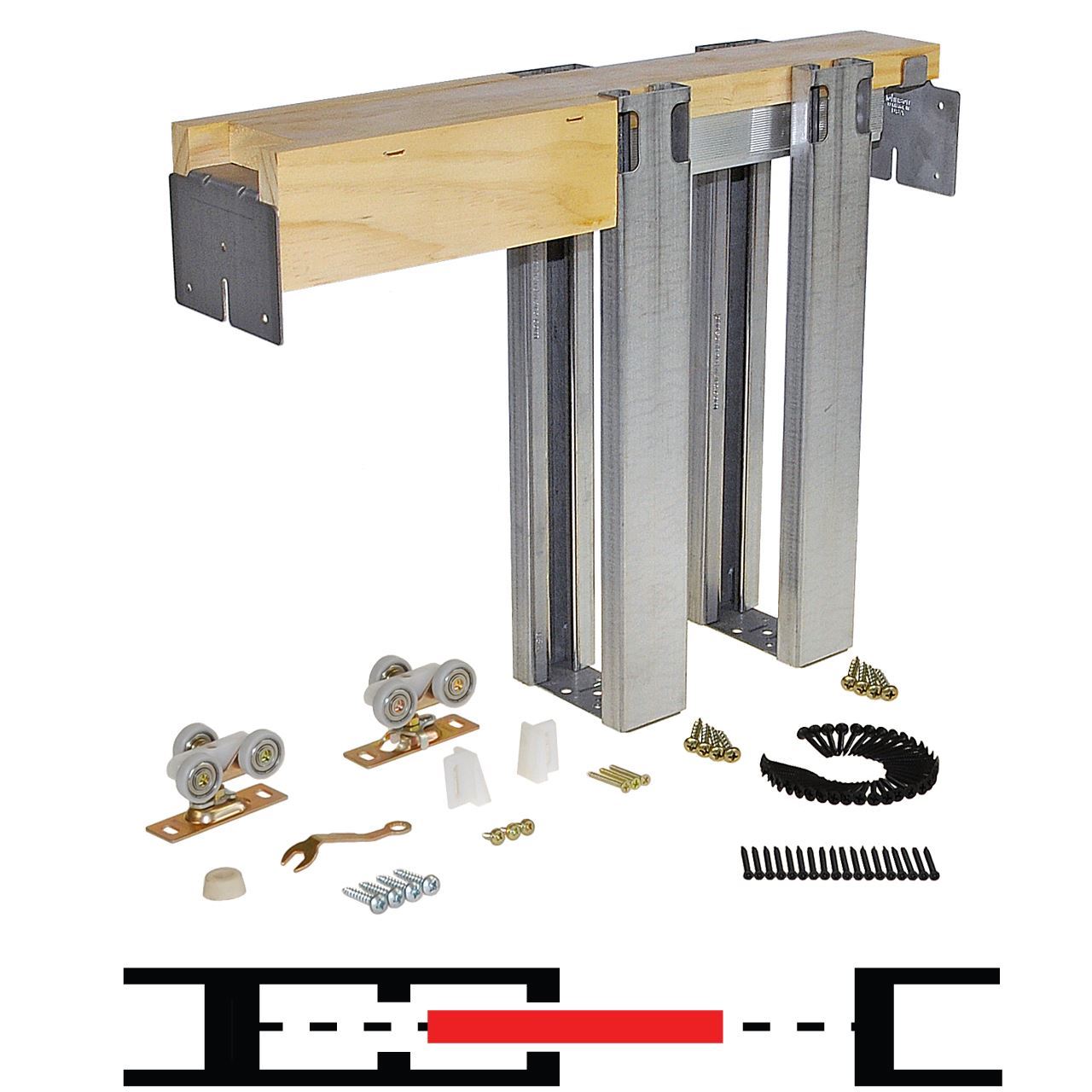

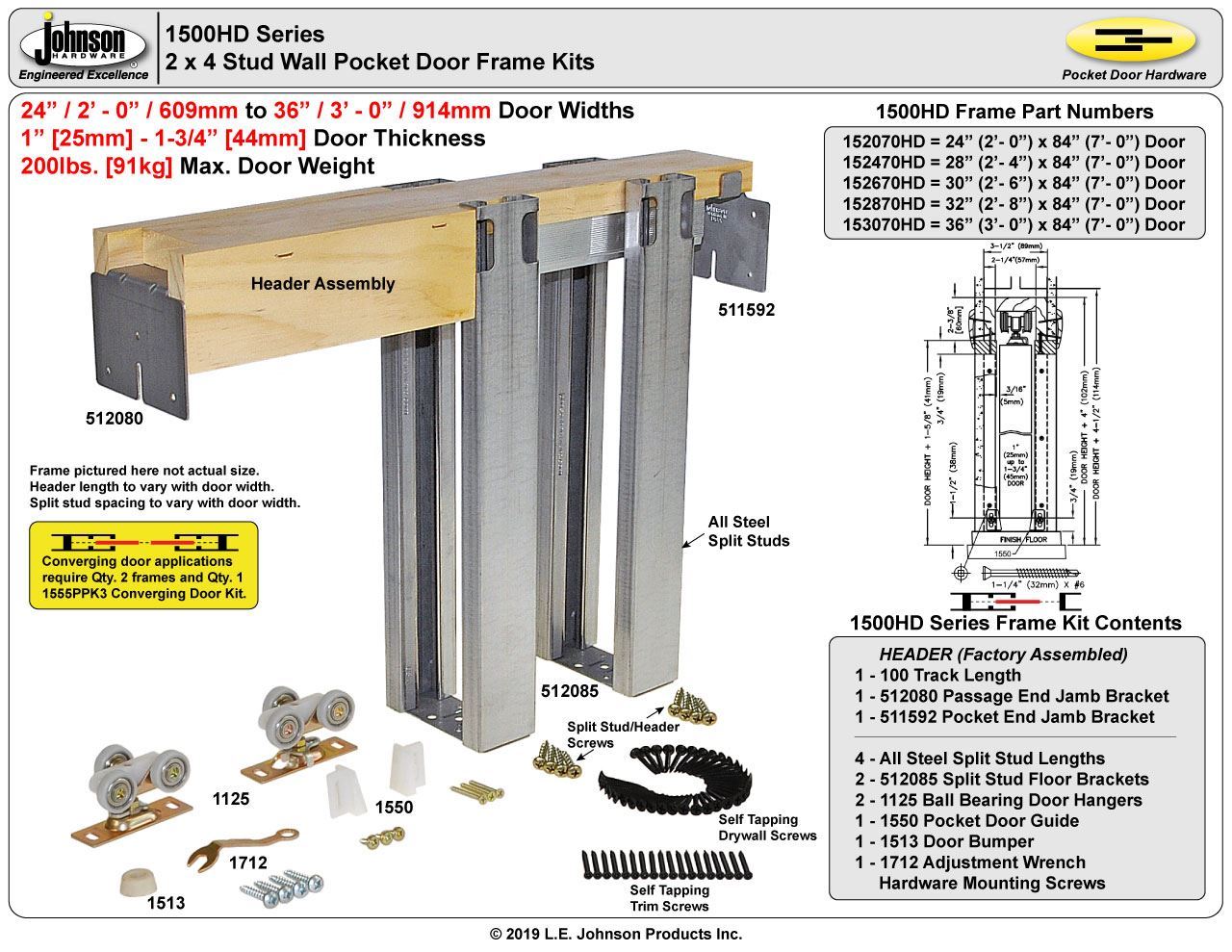

Picture of 1500HD Series 28" x 84" Pocket Door Frame
Picture of 1500HD Series 28" x 84" Pocket Door Frame Picture of 1500HD Series 28" x 84" Pocket Door Frame

1500HD Series 28" x 84" Pocket Door Frame

$174.89
  • 200lbs [91kg] Max. Per Door

  • 28" 2/4 [711mm] x 84" 7/0 [2134mm] Max. Door Size

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

    • Manufacturer part number: 152470HD
    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    Max. Door Width28" (2'- 4") [711mm]
    Max. Door Height84" (7'-0") [2134mm]
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    Max. Door Width28" (2'- 4") [711mm]
    Max. Door Height84" (7'-0") [2134mm]
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
