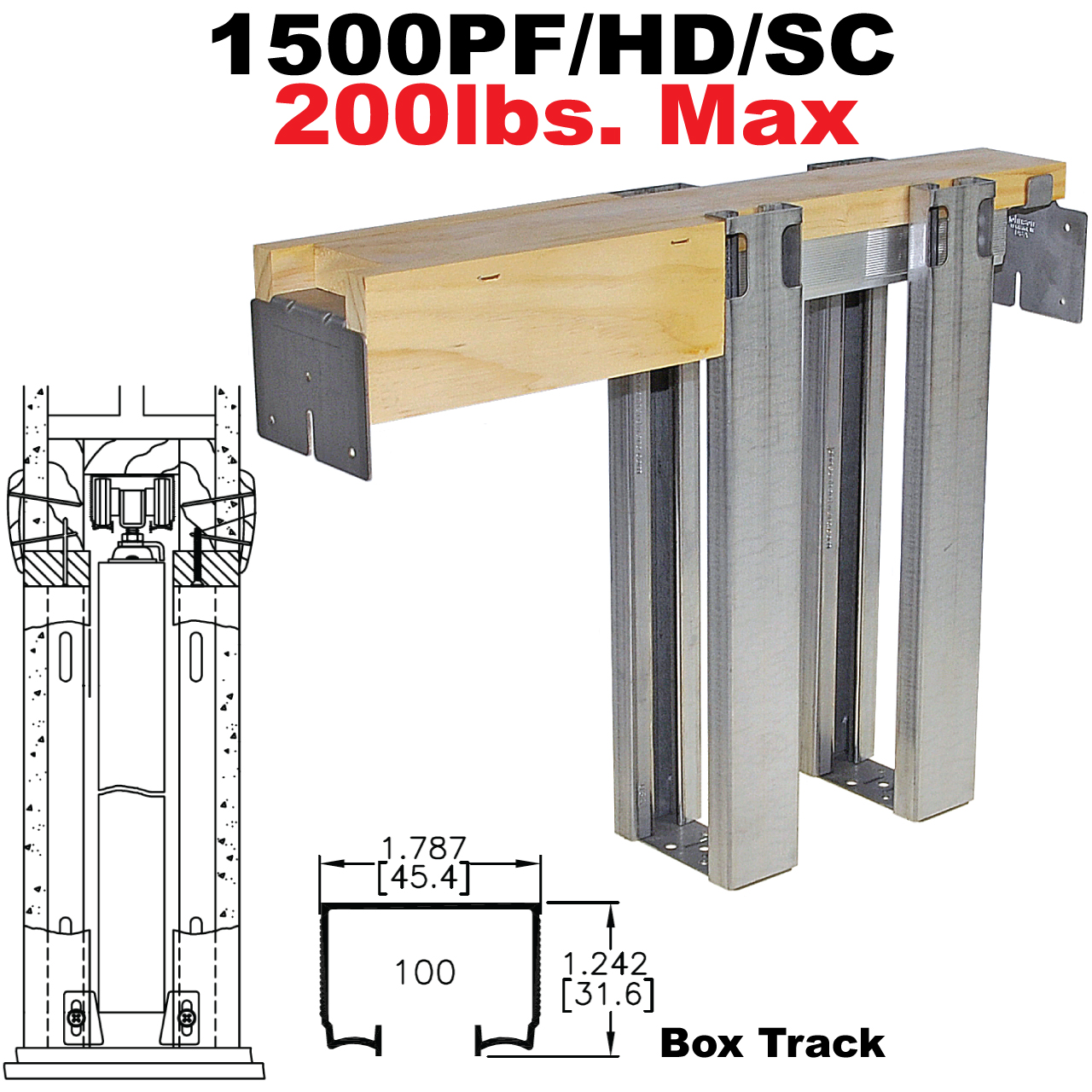

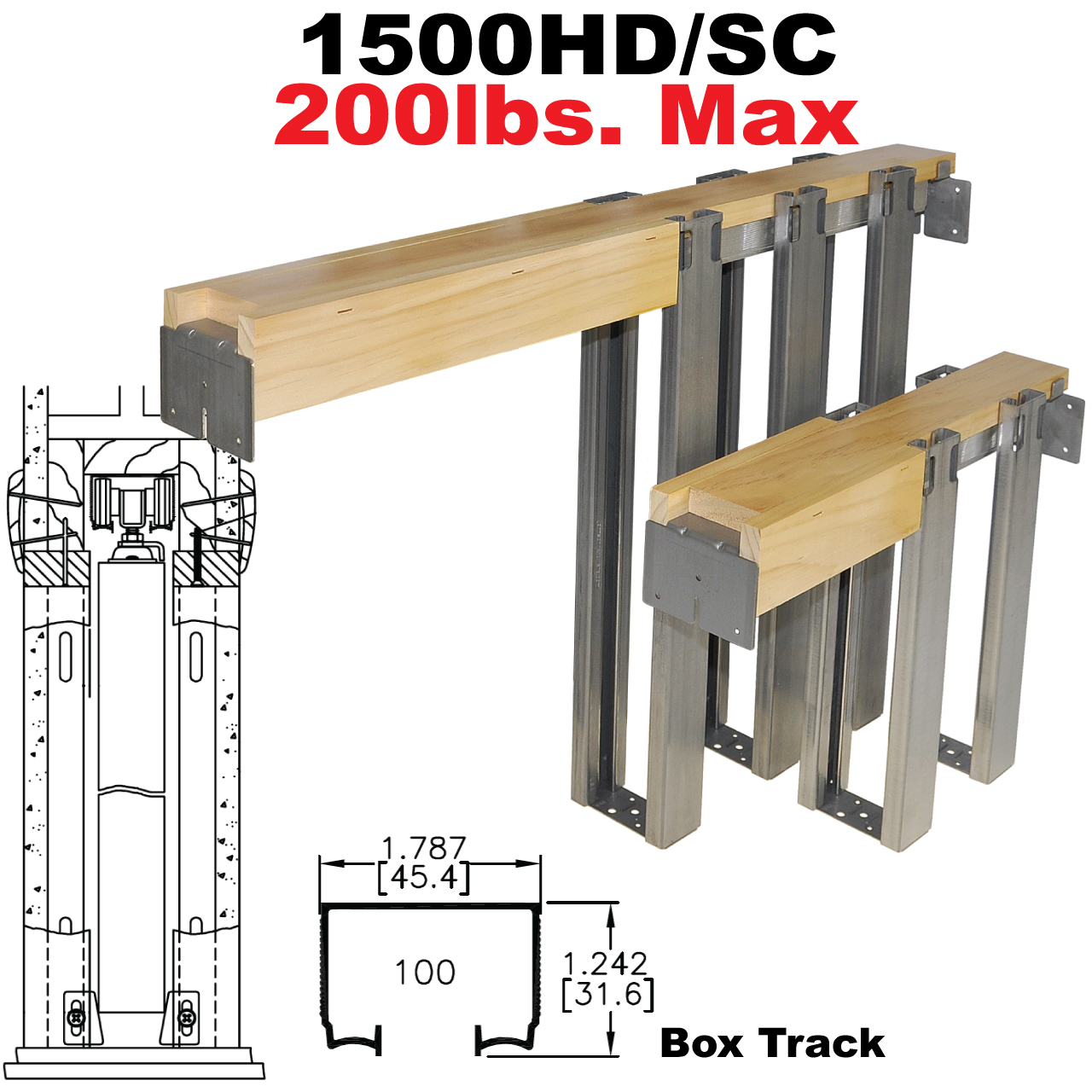

1500 Series Pocket Door Frames

  • 125lbs [57kg] Max. per door PF standard wheel hanger

  • 165lbs [75kg] Max. per door SC soft operation hanger

  • 200lbs [91kg] Max. per door HD ball bearing wheel hanger

  • 48" 4/0 [1219mm] x 96" 8/0 [2438mm] Max. Door Size

  • 1" [25mm] - 1-3/4 [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Operation Available

    • 1500HD Installation Instructions
    *
    *
    *
    *
    *
    *
    *

    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Max. Door Width60" (5'- 0") [1524mm]
    Max. Door Height96" (8'-0") [2438mm]
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    Split Stud Construction18 Gauge Cold Rolled Galvanized Steel
    Track ProfileBox Track
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    ApplicationInterior Residential/Commercial
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    Min. Wall Structure Thickness3-1/2" (2 x 4) [89mm]
    Max. Door Width60" (5'- 0") [1524mm]
    Max. Door Height96" (8'-0") [2438mm]
    Door Thickness1" [25mm] to 1-3/4" [44mm]
    Frame Header MaterialSpruce, Pine or Fir (#3 or better)
    Split Stud Construction18 Gauge Cold Rolled Galvanized Steel
    Track ProfileBox Track
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Components12-14 Gauge
    Steel Component FinishZinc Trivalent Plated
    ApplicationInterior Residential/Commercial
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
