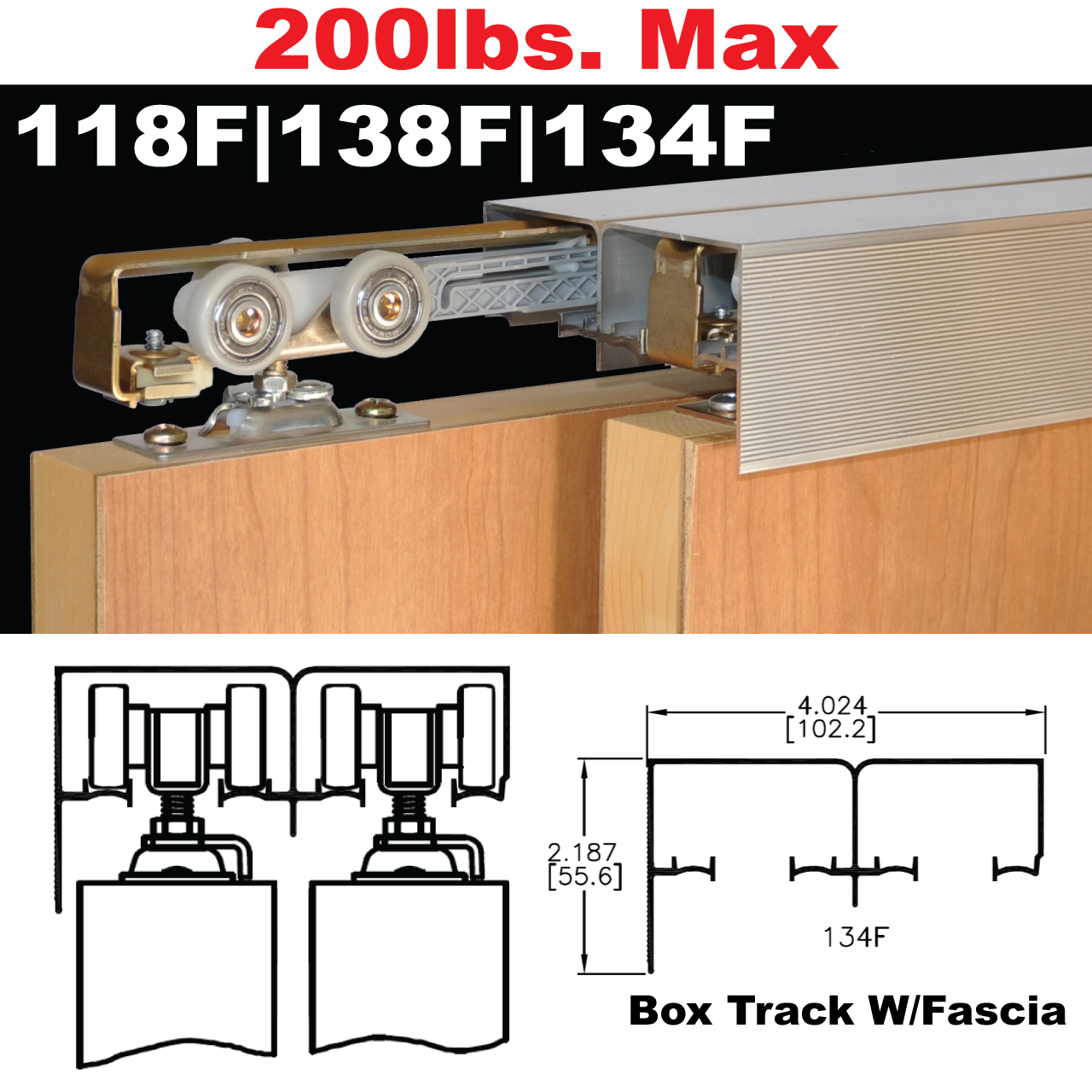

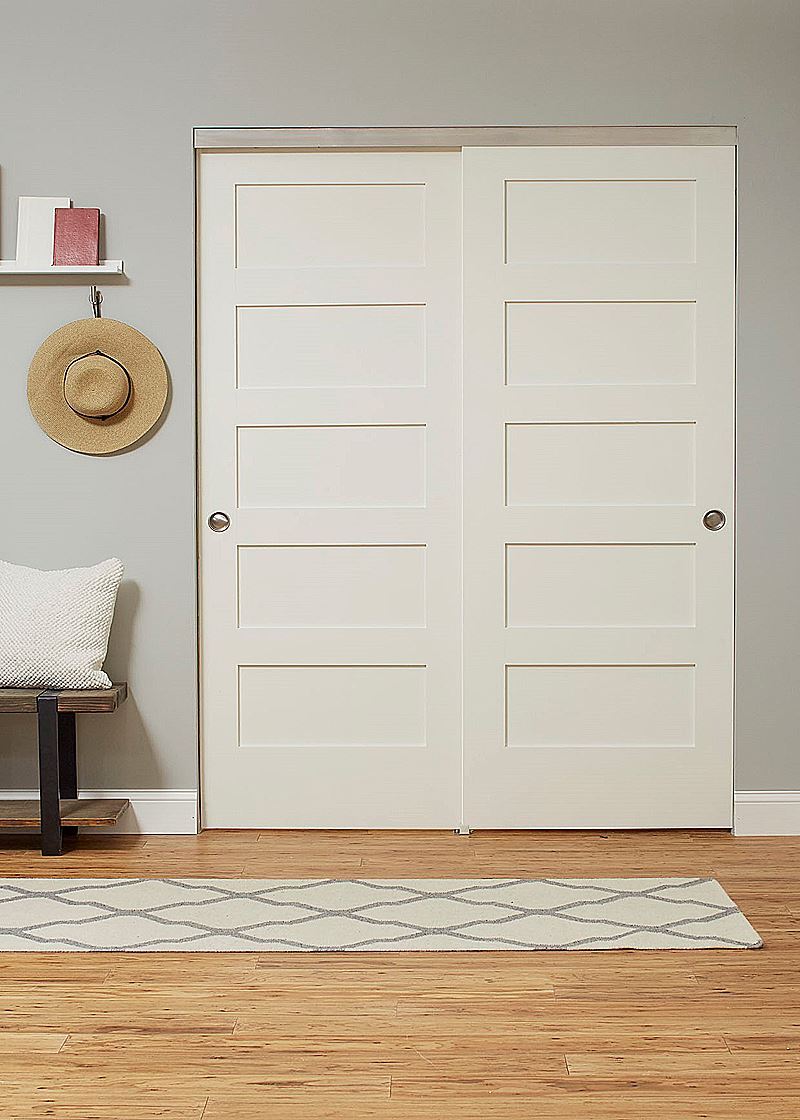

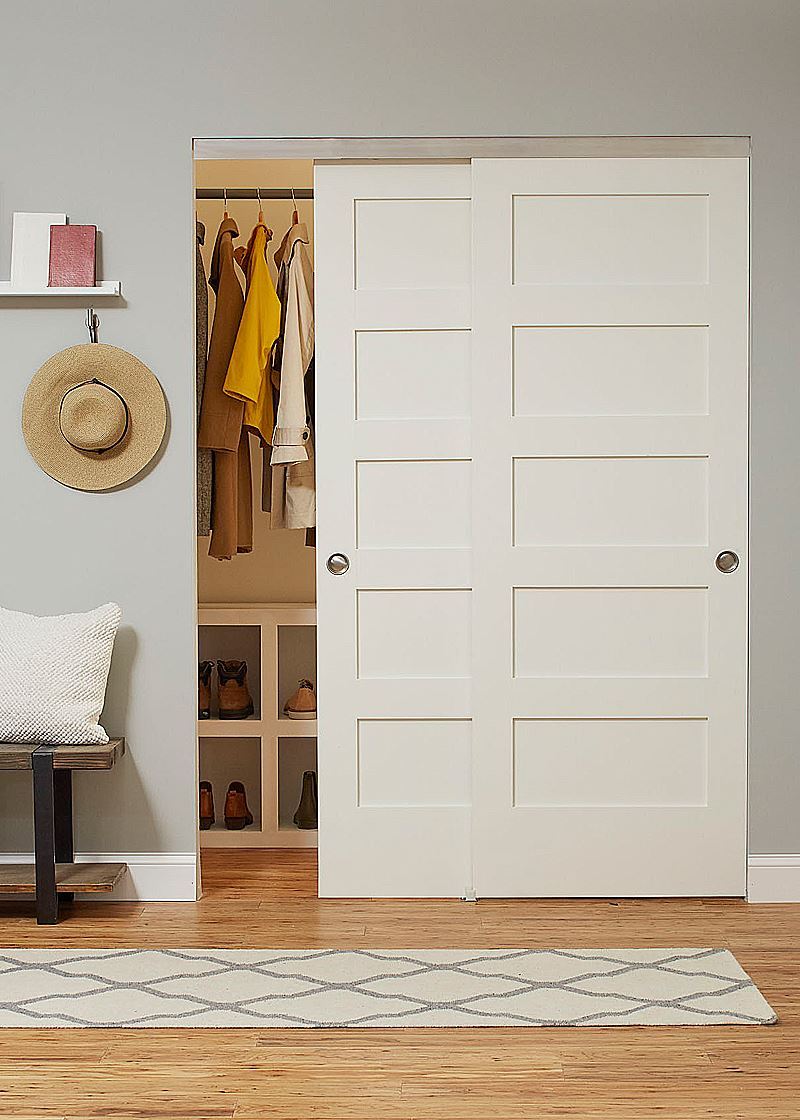

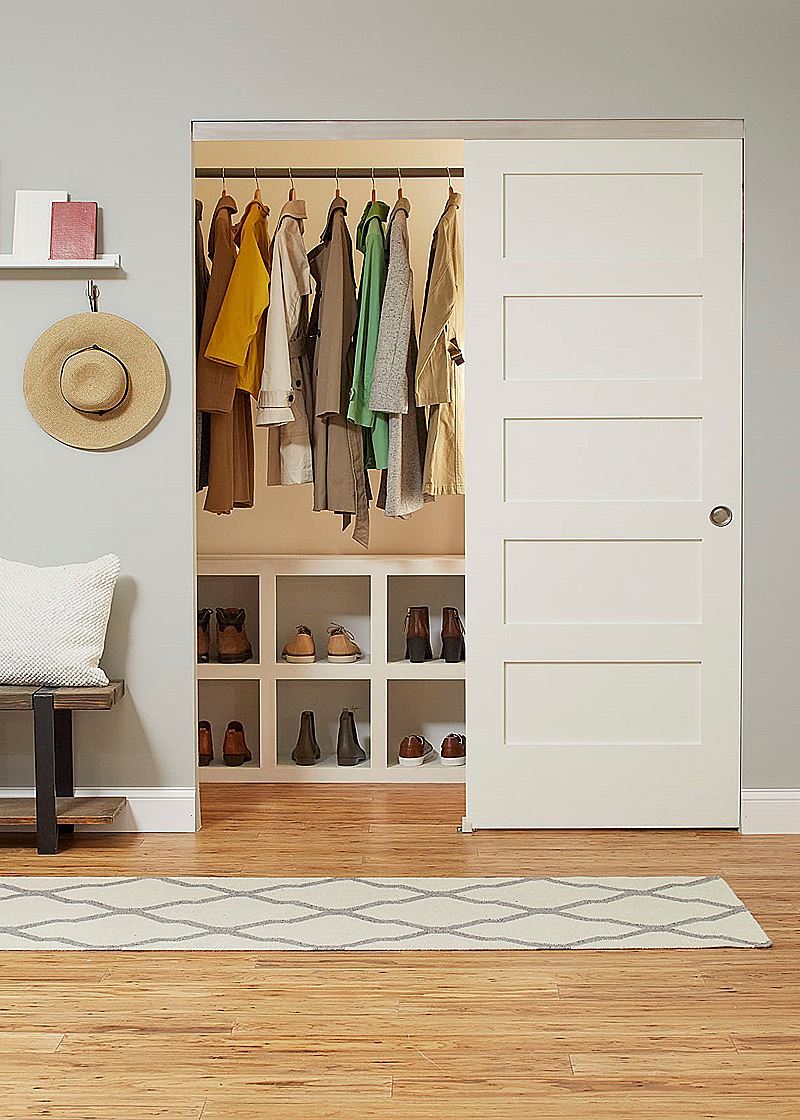

Picture of 134F/138F/118F Sliding Bypass Door Hardware
Picture of 134F/138F/118F Sliding Bypass Door Hardware Picture of 134F/138F/118F Sliding Bypass Door Hardware Picture of 134F/138F/118F Sliding Bypass Door Hardware Picture of 134F/138F/118F Sliding Bypass Door Hardware

134F/138F/118F Sliding Bypass Door Hardware

  • Soft-Close/Open Door Operation Available
  • 200lbs [91kg] Max Per Door*

  • 1-3/4" [44mm], 1-3/8" [35mm], 1-1/8" [28mm] Door Thickness
  • Top Mount or Side Mount Hanger Type

  • Twin Box Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • 134F Installation Instructions

    Products specifications
    Max. Weight Per Door200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Door Thickness1-3/4" [44mm]
    Series Track134F
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Door Thickness1-3/4" [44mm]
    Series Track134F
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
