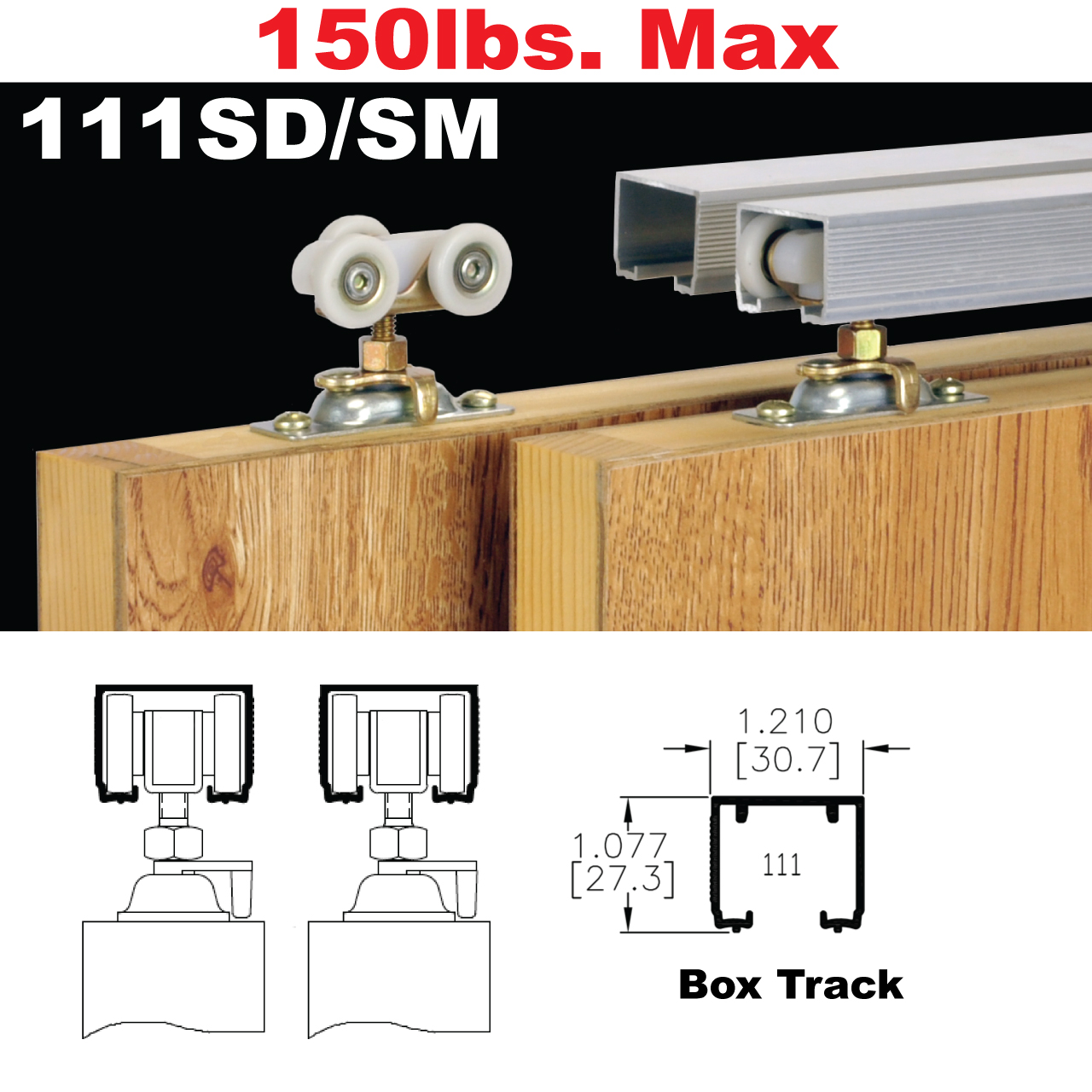

Picture of 111SD Sliding Bypass Door Hardware

111SD Sliding Bypass Door Hardware

  • 150lbs [68kg] Max Weight Per Door

  • 3/4" [19mm] Min Door Thickness
  • Top Mount/Side Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" 16/0 [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • 111SD Installation Instructions

    Products specifications
    Max. Weight Per Door150lbs. [68kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness3/4" [19mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door150lbs. [68kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness3/4" [19mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
