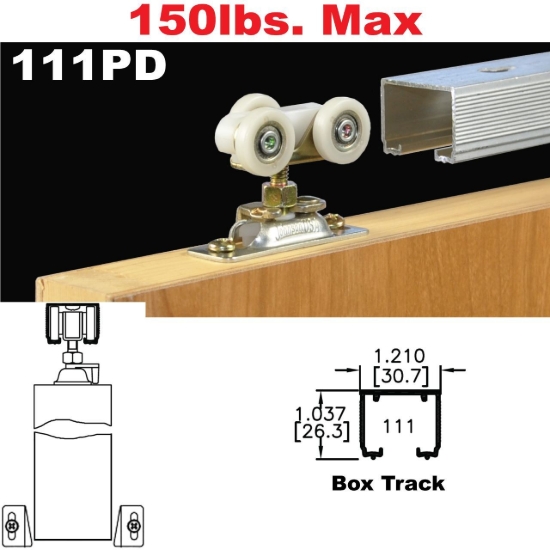

Picture of 111PD Pocket Door Hardware

111PD Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door*

  • 3/4" [19mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Pocket Door Hardware

    • *With Optional Ball Bearing Hangers

    111PD Installation Instructions

    Products specifications
    Max. Weight Per Door150lbs. [68kg] (W/1025 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Min. Door Thickness3/4" [19mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door150lbs. [68kg] (W/1025 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Min. Door Thickness3/4" [19mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
