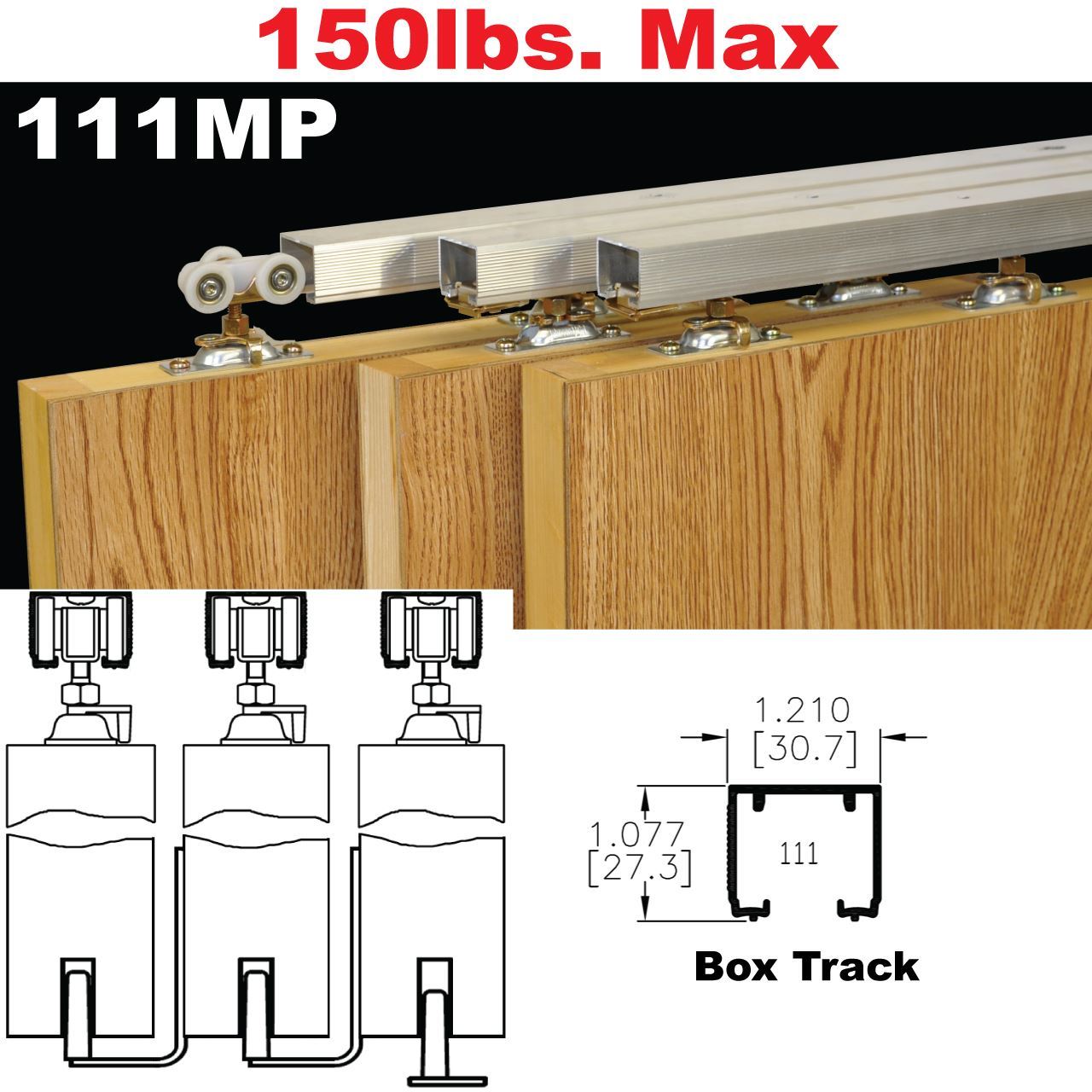

Picture of 111MP Tri-Pass Pocket Door Hardware

111MP Tri-Pass Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] Min. Wall Structure Thickness

  • *283" (25' - 1/2") [7188mm] Max. Opening Width

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

    • * 6-Door Configuration

    111MP Installation Instructions

    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

    Related Products

    Picture of 11311343 111MP 3-Door Part Set, 1-3/4" [44mm] Door

    11311343 111MP 3-Door Part Set, 1-3/4" [44mm] Door

    $142.04
    Picture of 11311383 111MP 3-Door Part Set, 1-3/8" [35mm] Door

    11311383 111MP 3-Door Part Set, 1-3/8" [35mm] Door

    $142.04
    Picture of 11311243 111MP 3-Door Part Set, 2-1/4" [57mm] Door

    11311243 111MP 3-Door Part Set, 2-1/4" [57mm] Door

    $142.04
    Picture of 111 Series Track

    111 Series Track

    From $11.66
  • 192" (16'- 0") [4877mm] Max. Length

  • Box Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade Aluminum Track Finish

    • Picture of 1021 Hanger Plate

    1021 Hanger Plate

    $2.03
  • Compatible with 1020 or 1025 Hanger Only

    • Picture of 1025 Ball Bearing Wheel Door Hanger

    1025 Ball Bearing Wheel Door Hanger

    $12.33
  • 150lbs [68kg] Weight capacity

  • 3/4" [19mm] Wheel diameter

  • Nylon Encapsulated Ball Bearing Wheel

  • Height Adjustable

  • Top Mount Hanger Plate

  • Commercial Grade

  • Compatible with 111 or 118F Series Track Only

    • Picture of 1155 Track Stop

    1155 Track Stop

    $1.92
    Track Stop for 100, 111, 134F, 138F and 2610F Series Track
    Picture of 1513 Door Bumper

    1513 Door Bumper

    $0.41
    Sliding Door Bumper
    Picture of 1712 Adjustment Wrench

    1712 Adjustment Wrench

    $0.60
    Adjustment Wrench
    Picture of 2030 Guide Post

    2030 Guide Post

    $4.41
    Picture of 2032 Side Mount 1-3/8" [35mm} Door Guide

    2032 Side Mount 1-3/8" [35mm} Door Guide

    $5.93
    Side Mount 1-3/8" Door Guide
    Picture of 2033 Side Mount 1-3/4" [44mm] Door Guide

    2033 Side Mount 1-3/4" [44mm] Door Guide

    $5.93
    Side Mount 1-3/4" Door Guide
    Picture of 2036 Side Mount 2-1/4" [57mm] Door Guide

    2036 Side Mount 2-1/4" [57mm] Door Guide

    $5.93
    Side Mount 2-1/4" Door Guide
    Picture of 2040 Door Guide Cover Plate

    2040 Door Guide Cover Plate

    $3.52
    Plate used to cover guide grooves routed in door bottom.
    Picture of 2054PLBG Multi-Door Pull Kit

    2054PLBG Multi-Door Pull Kit

    $13.43
    Picture of Auto-Latching Pocket Door Locks

    Auto-Latching Pocket Door Locks

    From $10.71
  • 1-3/8" [35mm] Door Thickness
  • 2-3/8" [60mm] Standard Backset

  • 2-1/8" [54mm] Lock Bore

  • 15/16" [24mm] End Bore

  • Privacy Lock Function

  • Self-Latching Lock Operation

  • US3, US15, Black Available Finishes

  • Residential Product Grade

    • Picture of Pocket Door Edge Pulls

    Pocket Door Edge Pulls

    From $7.55
    Pocket Door Edge Pulls provide a finger grip when pulling doors out of a pocket. Edge Pulls are mortised into the door edge and finger grips retract into the door edge when not in use for a clean look.
