  • 11MP1202 111MP 30" (1-3/4") x 3-Door Tri-Pass Pocket Door Hardware Set

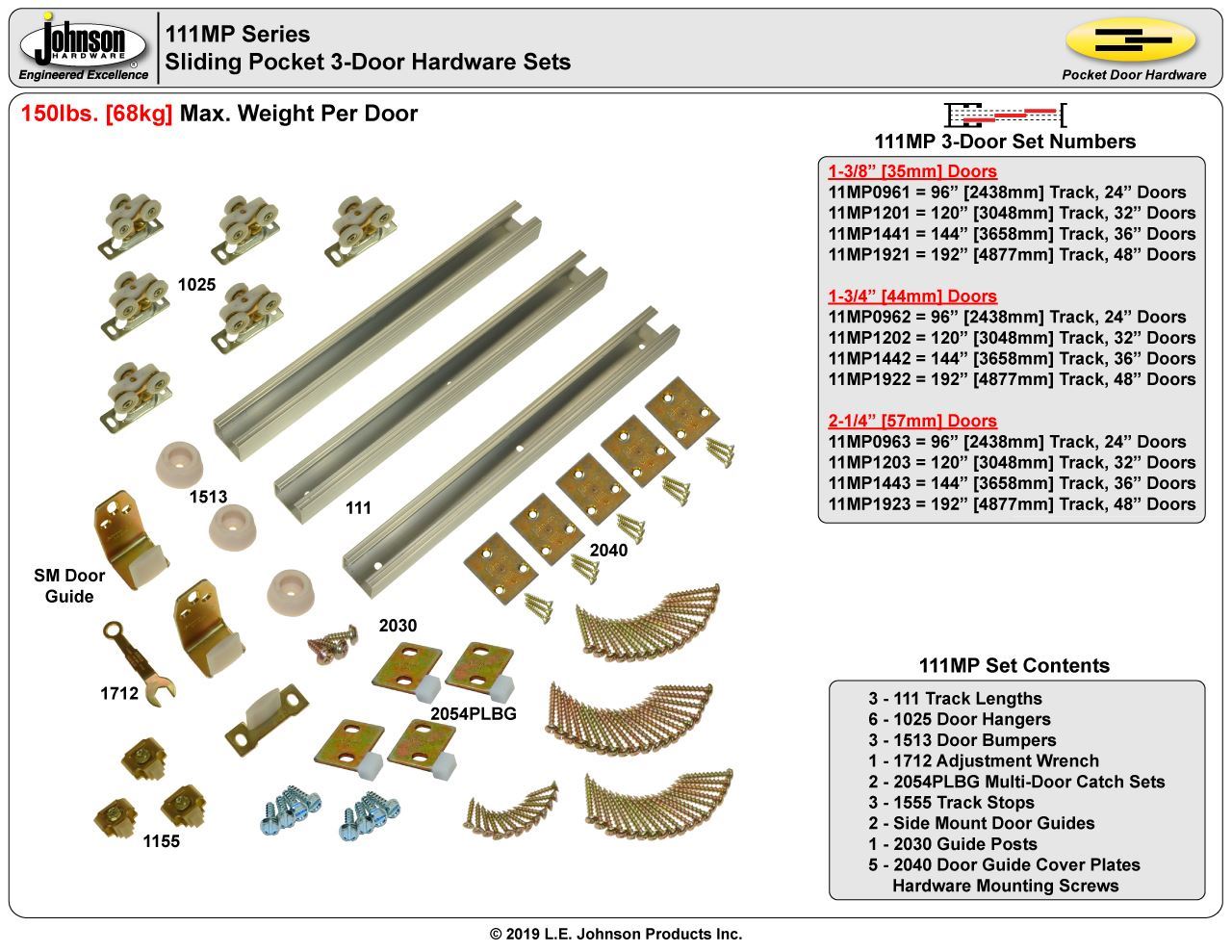

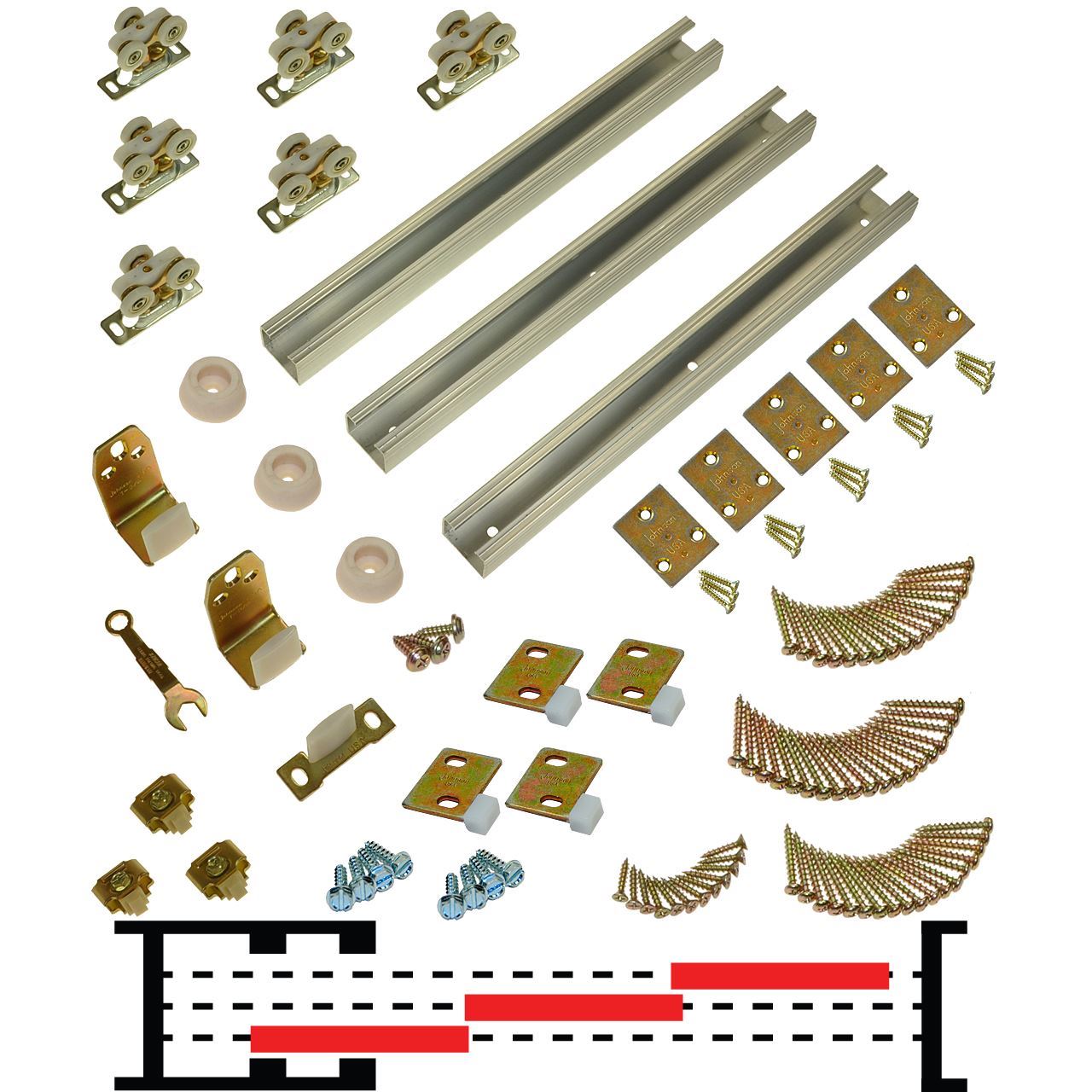

Picture of 11MP1202 111MP 30" (1-3/4") x 3-Door Tri-Pass Pocket Door Hardware Set
Picture of 11MP1202 111MP 30" (1-3/4") x 3-Door Tri-Pass Pocket Door Hardware Set Picture of 11MP1202 111MP 30" (1-3/4") x 3-Door Tri-Pass Pocket Door Hardware Set

11MP1202 111MP 30" (1-3/4") x 3-Door Tri-Pass Pocket Door Hardware Set

$256.36
  • 150lbs [68kg] Max. Weight Per Door

  • 30" 2/6 [762mm] x 3 Max. Width Per Door

  • 120" 10/0 [3048mm] x 3 Track Length

  • 1-3/4" [44mm] Door Thickness
  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • 86-3/4" (7'- 2-3/4") [2203mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 111MP Installation Instructions
    Manufacturer part number: 11MP1202
    Products specifications
    Hardware Sets 3-Door
    Max. Door Width 30" X 3 (2' - 6" X 3) [762mm X 3]
    Track Length 120" x 3 (10' - 0" x 3) [3048mm x 3]
    Min. Wall Structure Thickness 9-1/4" (2 x 10) [235mm]
    Door Thickness 1-3/4" [44mm]
    Products specifications
    Hardware Sets 3-Door
    Max. Door Width 30" X 3 (2' - 6" X 3) [762mm X 3]
    Track Length 120" x 3 (10' - 0" x 3) [3048mm x 3]
    Min. Wall Structure Thickness 9-1/4" (2 x 10) [235mm]
    Door Thickness 1-3/4" [44mm]
