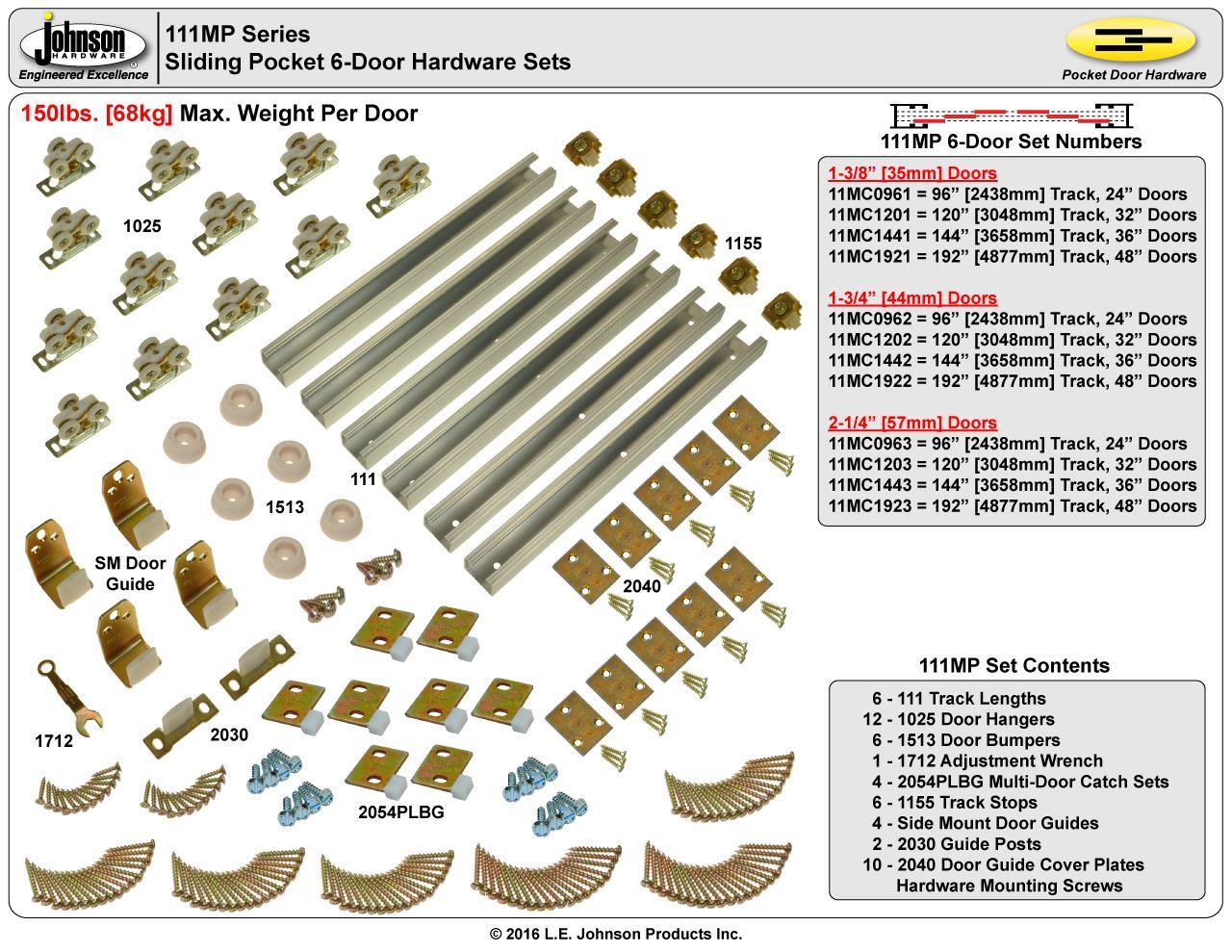

Picture of 11MC1922 111MC 48" (1-3/4") x 6-Door Tri-Pass Pocket Door Hardware Set

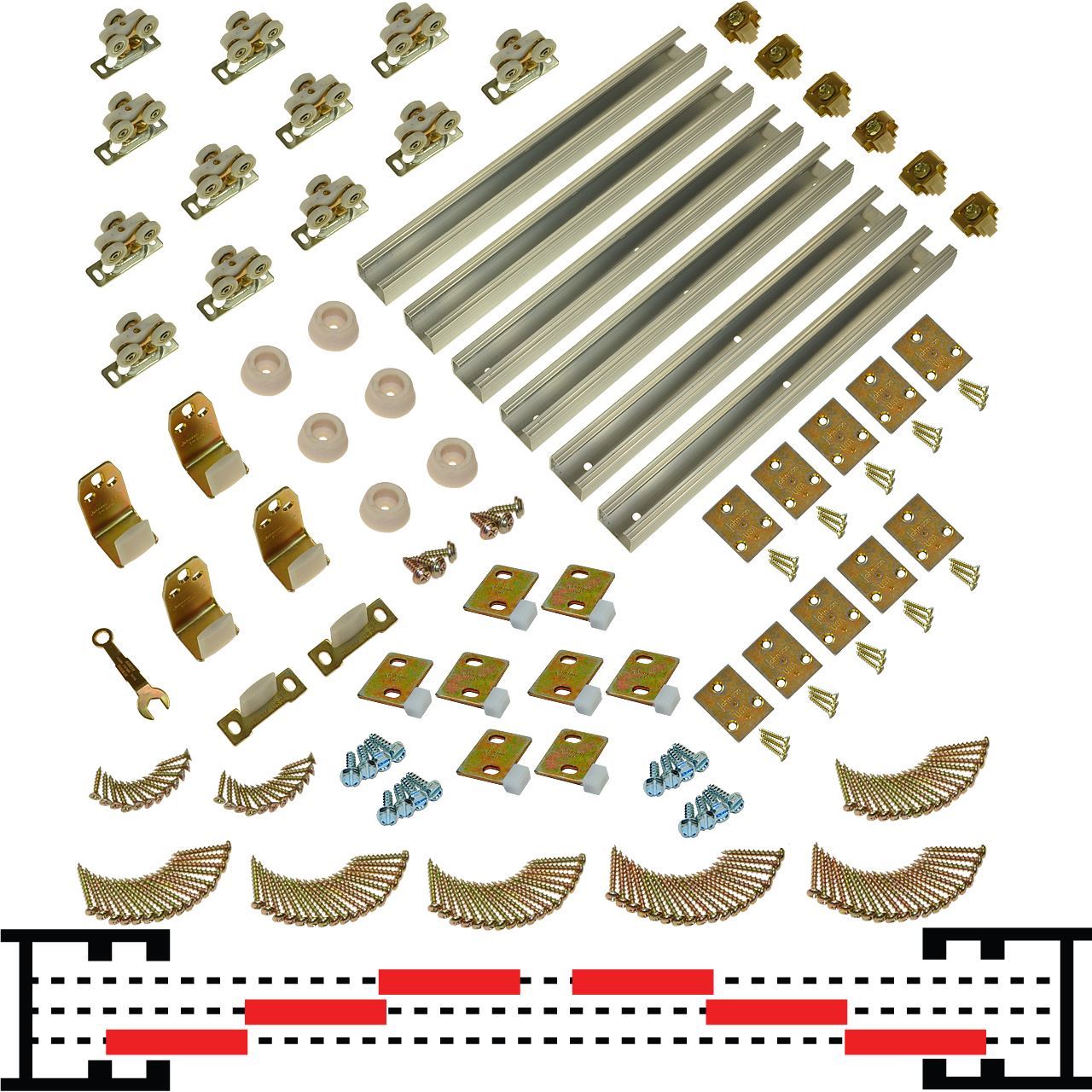

Picture of 11MC1922 111MC 48" (1-3/4") x 6-Door Tri-Pass Pocket Door Hardware Set Picture of 11MC1922 111MC 48" (1-3/4") x 6-Door Tri-Pass Pocket Door Hardware Set

11MC1922 111MC 48" (1-3/4") x 6-Door Tri-Pass Pocket Door Hardware Set

$655.27
  • 150lbs [68kg] Max. Weight Per Door

  • 48" 4/0 [1219mm] x 6 Max. Width Per Door

  • 192" 16/0 [4877mm] x 6 Track Length

  • 1-3/4" [44mm] Door Thickness
  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • 283" 23'- 7") [7188mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 111MP Installation Instructions
    Manufacturer part number: 11MC1922
    Products specifications
    Hardware Sets 6-Door Converging
    Door Thickness 1-3/4" [44mm]
    Max. Door Width 48" X 6 (4' - 0" X 6) [1219mm X 6]
    Track Length 192" x 6 (16' - 0" x 6) [4877mm x 6]
    Min. Wall Structure Thickness 9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets 6-Door Converging
    Door Thickness 1-3/4" [44mm]
    Max. Door Width 48" X 6 (4' - 0" X 6) [1219mm X 6]
    Track Length 192" x 6 (16' - 0" x 6) [4877mm x 6]
    Min. Wall Structure Thickness 9-1/4" (2 x 10) [235mm]
