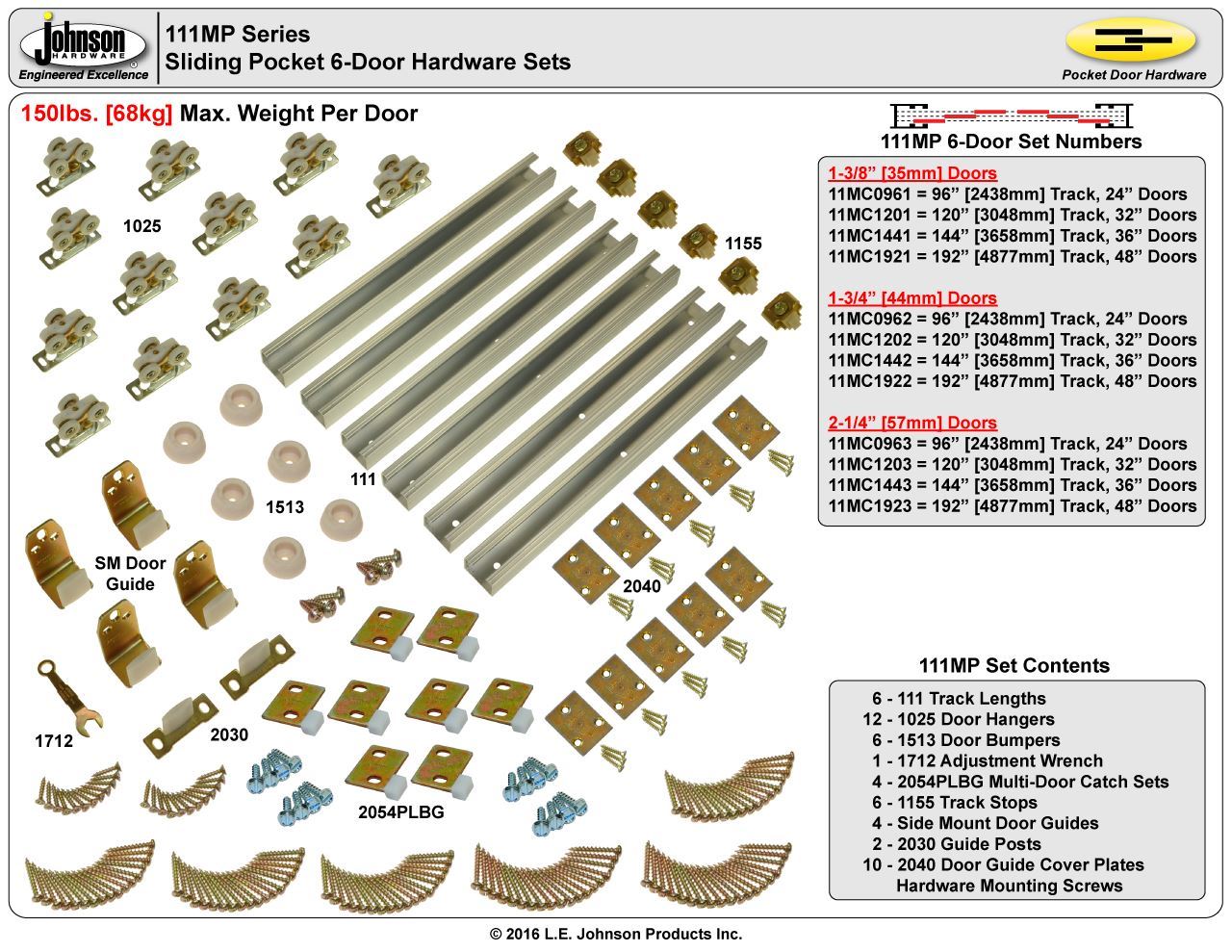

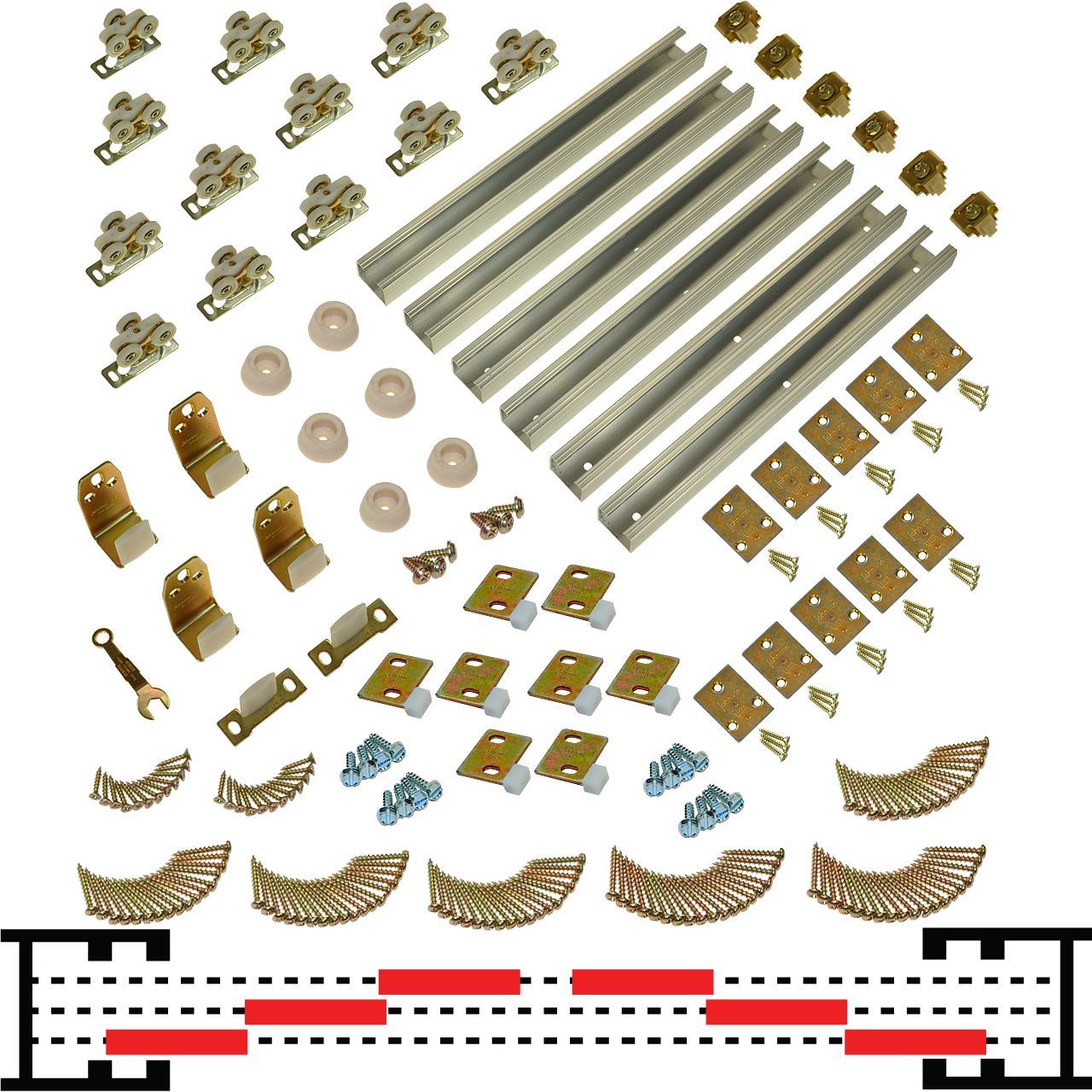

Picture of 11MC1203 111MC 30" (2-1/4") x 6-Door Tri-Pass Pocket Door Hardware Set
Picture of 11MC1203 111MC 30" (2-1/4") x 6-Door Tri-Pass Pocket Door Hardware Set Picture of 11MC1203 111MC 30" (2-1/4") x 6-Door Tri-Pass Pocket Door Hardware Set

11MC1203 111MC 30" (2-1/4") x 6-Door Tri-Pass Pocket Door Hardware Set

$512.70
  • 150lbs [68kg] Max. Weight Per Door

  • 30" 2/6 [762mm] x 6 Max. Width Per Door

  • 120" 10/0 [3048mm] x 6 Track Length

  • 2-1/4" [57mm] Door Thickness
  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • 175" 14'- 7") [4445mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 111MP Installation Instructions
    Manufacturer part number: 11MC1203
    Products specifications
    Hardware Sets 6-Door Converging
    Door Thickness 2-1/4" [57mm]
    Max. Door Width 30" x 6 (2' - 6" X 6) [762mm X 6]
    Track Length 120" x 6 (10' - 0" x 6) [3048mm x 6]
    Min. Wall Structure Thickness 9-1/4" (2 x 10) [235mm]
    Products specifications
    Hardware Sets 6-Door Converging
    Door Thickness 2-1/4" [57mm]
    Max. Door Width 30" x 6 (2' - 6" X 6) [762mm X 6]
    Track Length 120" x 6 (10' - 0" x 6) [3048mm x 6]
    Min. Wall Structure Thickness 9-1/4" (2 x 10) [235mm]
