  • 11134604 111FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 60" 5/0 [1524mm] Track Length

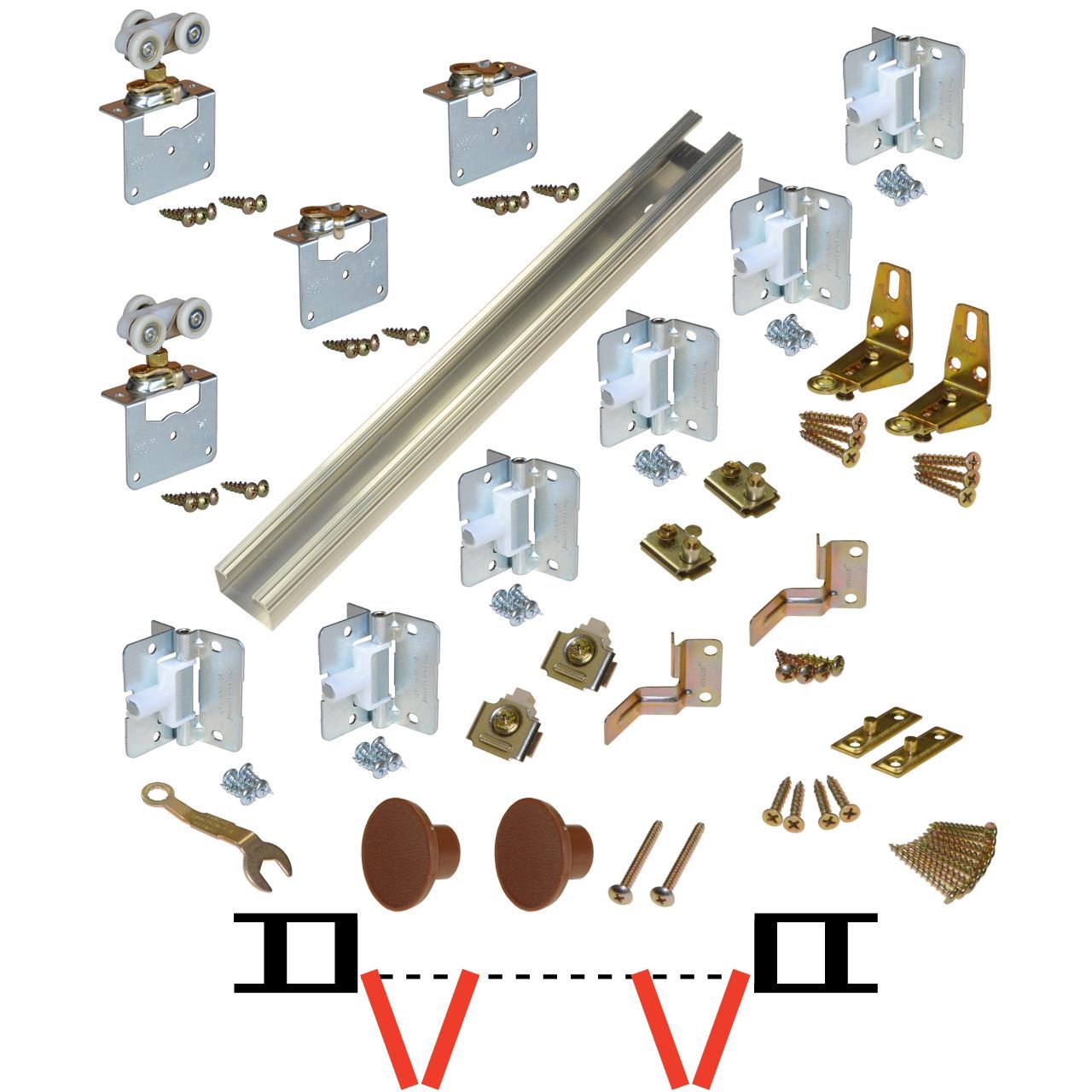

Picture of 11134604 111FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 60" 5/0 [1524mm] Track Length
Picture of 11134604 111FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 60" 5/0 [1524mm] Track Length Picture of 11134604 111FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 60" 5/0 [1524mm] Track Length

11134604 111FS 4-Panel Side Mount Hardware Set, 3/4" [19mm] Door, 60" 5/0 [1524mm] Track Length

$95.29
  • 50lbs [23kg] Max Weight per Panel

  • 60" 5/0 [1524mm] Track Length

  • 15" 1/3 [381mm] x 4 Nominal Max Width per Panel

  • 108" 9/0 [2743mm] Max Panel Height

  • 3/4" [19mm] Panel Thickness
  • Side Mount Hardware Attachment

  • Commercial Grade Top Hung Bi-Fold Door Hardware

    • 111FS Installation Instructions
    Manufacturer part number: 11134604

    Products specifications
    Hardware Sets4-Panel
    Max. Weight Per Panel50 lbs. [23kg]
    Track Length60" (5' - 0") [1524mm]
    Max. Panel Width15" x 4 (1' - 3" x 4) [381mm x 4]
    Panel Thickness3/4" [19mm]

    Products specifications
    Hardware Sets4-Panel
    Max. Weight Per Panel50 lbs. [23kg]
    Track Length60" (5' - 0") [1524mm]
    Max. Panel Width15" x 4 (1' - 3" x 4) [381mm x 4]
    Panel Thickness3/4" [19mm]
