  • 11138484 111FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length

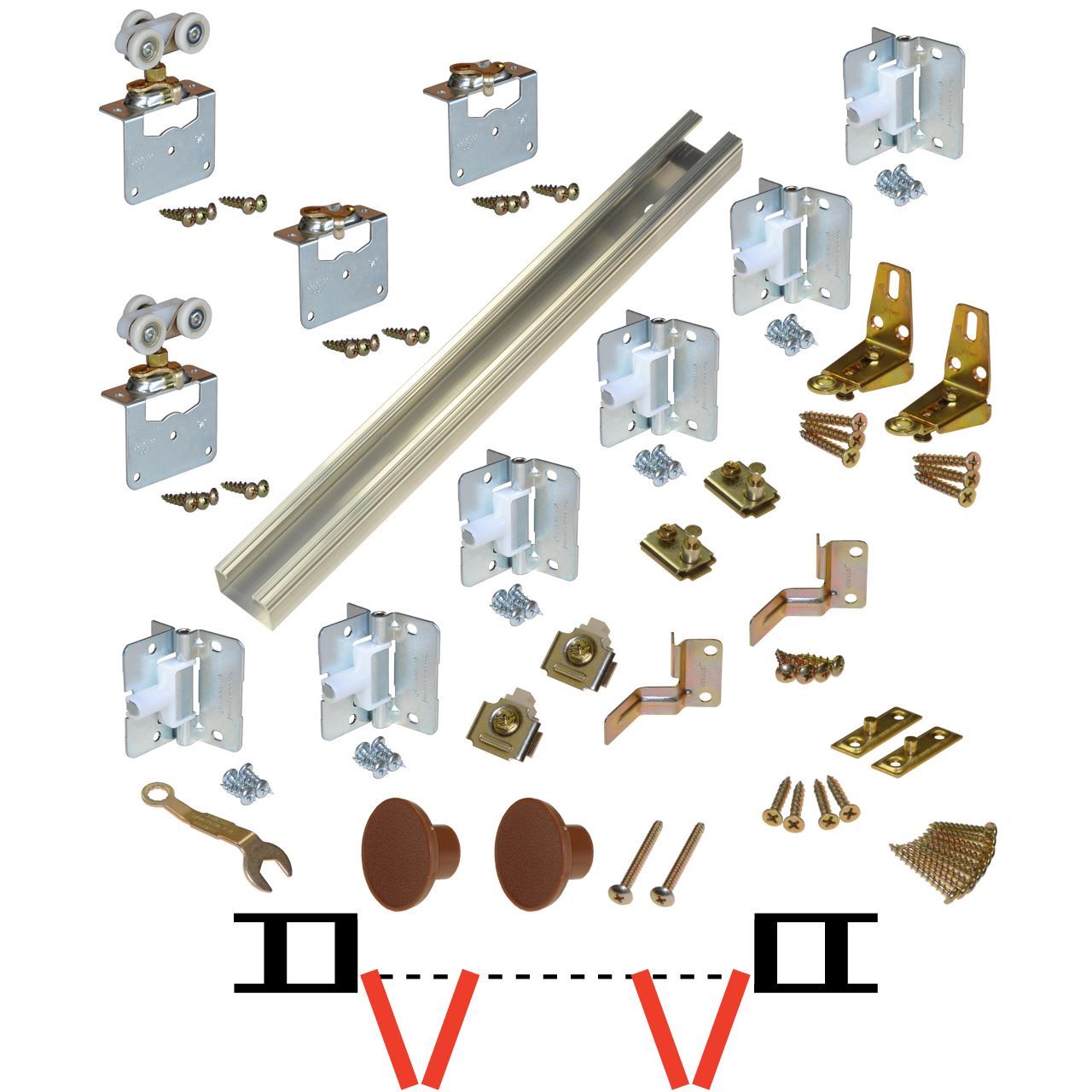

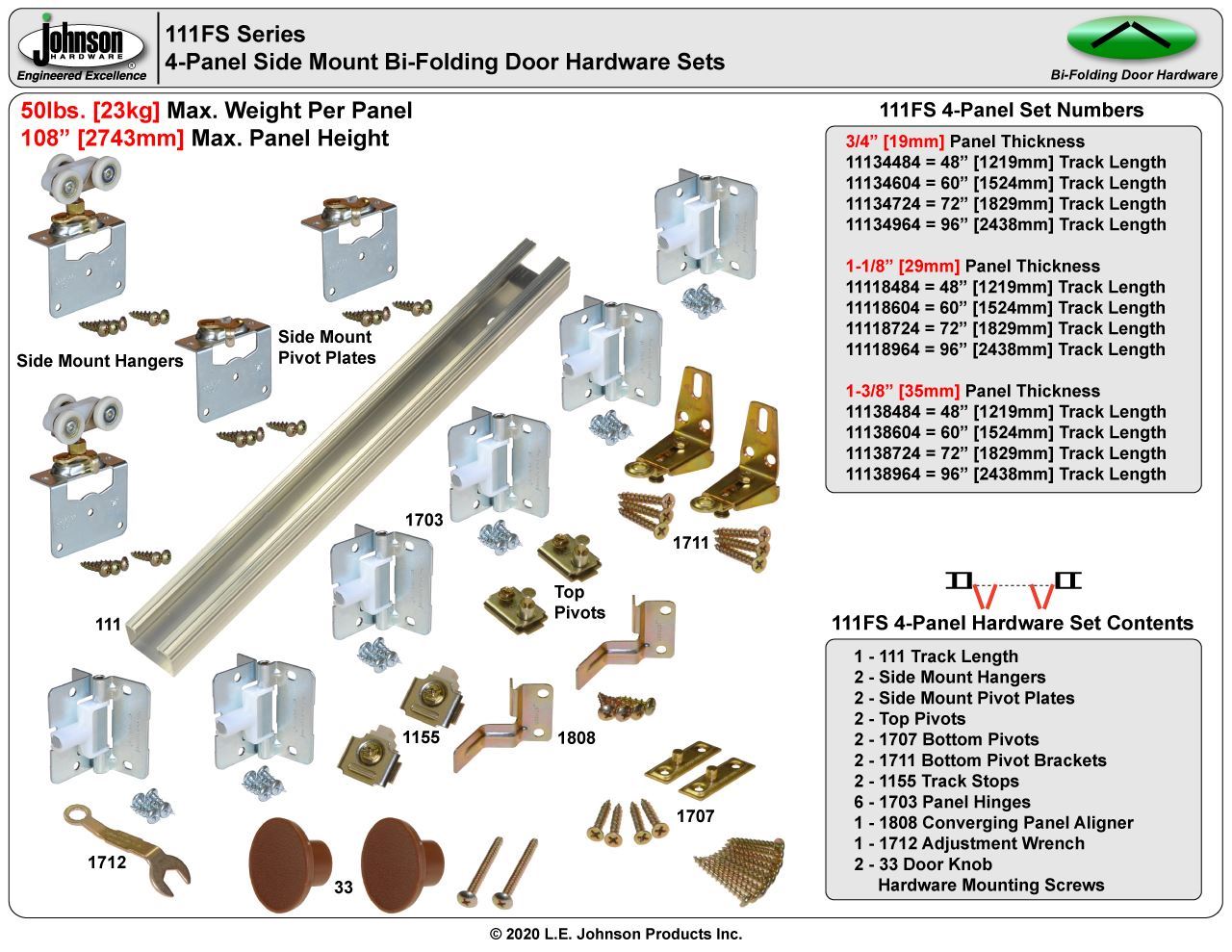

Picture of 11138484 111FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length
Picture of 11138484 111FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length Picture of 11138484 111FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length

11138484 111FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 48" 4/0 [1219mm] Track Length

$92.17
  • 50lbs [23kg] Max Weight per Panel

  • 48" 4/0 [1219mm] Track Length

  • 12" 1/0 [305mm] x 4 Nominal Max Width per Panel

  • 108" 9/0 [2743mm] Max Panel Height

  • 1-3/8" [35mm] Panel Thickness
  • Side Mount Hardware Attachment

  • Commercial Grade Top Hung Bi-Fold Door Hardware

    • 111FS Installation Instructions
    Manufacturer part number: 11138484

    Products specifications
    Hardware Sets4-Panel
    Max. Weight Per Panel50 lbs. [23kg]
    Track Length48" (4' - 0") [1219mm]
    Max. Panel Width12" x 4 (1' - 0" x 4) [305mm x 4]
    Panel Thickness1-3/8" [35mm]

    Products specifications
    Hardware Sets4-Panel
    Max. Weight Per Panel50 lbs. [23kg]
    Track Length48" (4' - 0") [1219mm]
    Max. Panel Width12" x 4 (1' - 0" x 4) [305mm x 4]
    Panel Thickness1-3/8" [35mm]
