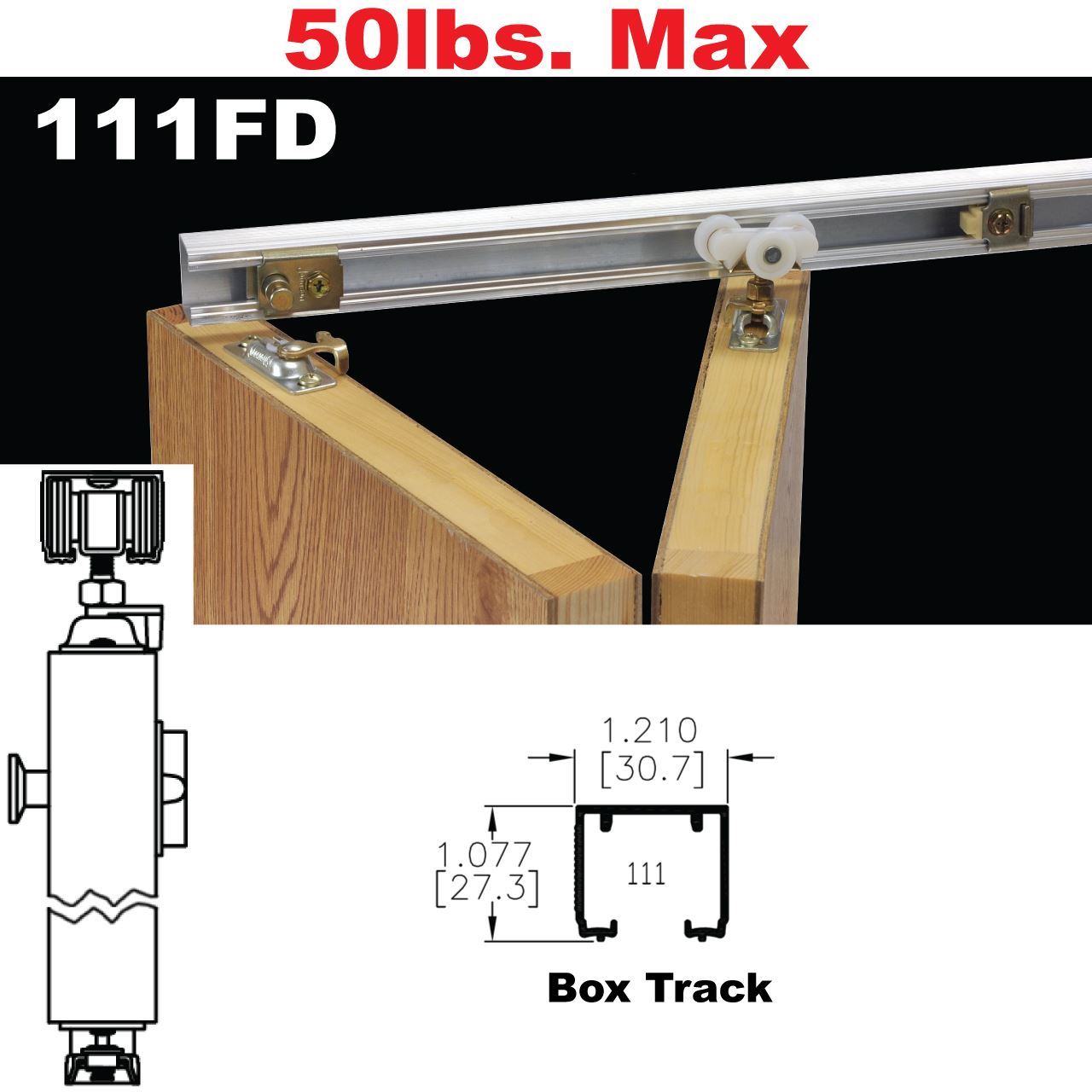

Picture of 111FD Bi-Fold Door Hardware

111FD Bi-Fold Door Hardware

  • 50lbs [23kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 3/4" [19mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount or Side Mount Hardware Attachment

  • Commercial Grade Top Hung Bi-Fold Door Hardware

    • 111FD Installation Instructions

    Products specifications
    Max. Weight Per Panel50 lbs. [23kg]
    ApplicationInterior Residential/Commercial
    Panel Thickness3/4" [19mm] to 1-3/4" [44mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Panel50 lbs. [23kg]
    ApplicationInterior Residential/Commercial
    Panel Thickness3/4" [19mm] to 1-3/4" [44mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeMachine Turned and Balanced Nylon, Factory Greased
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
