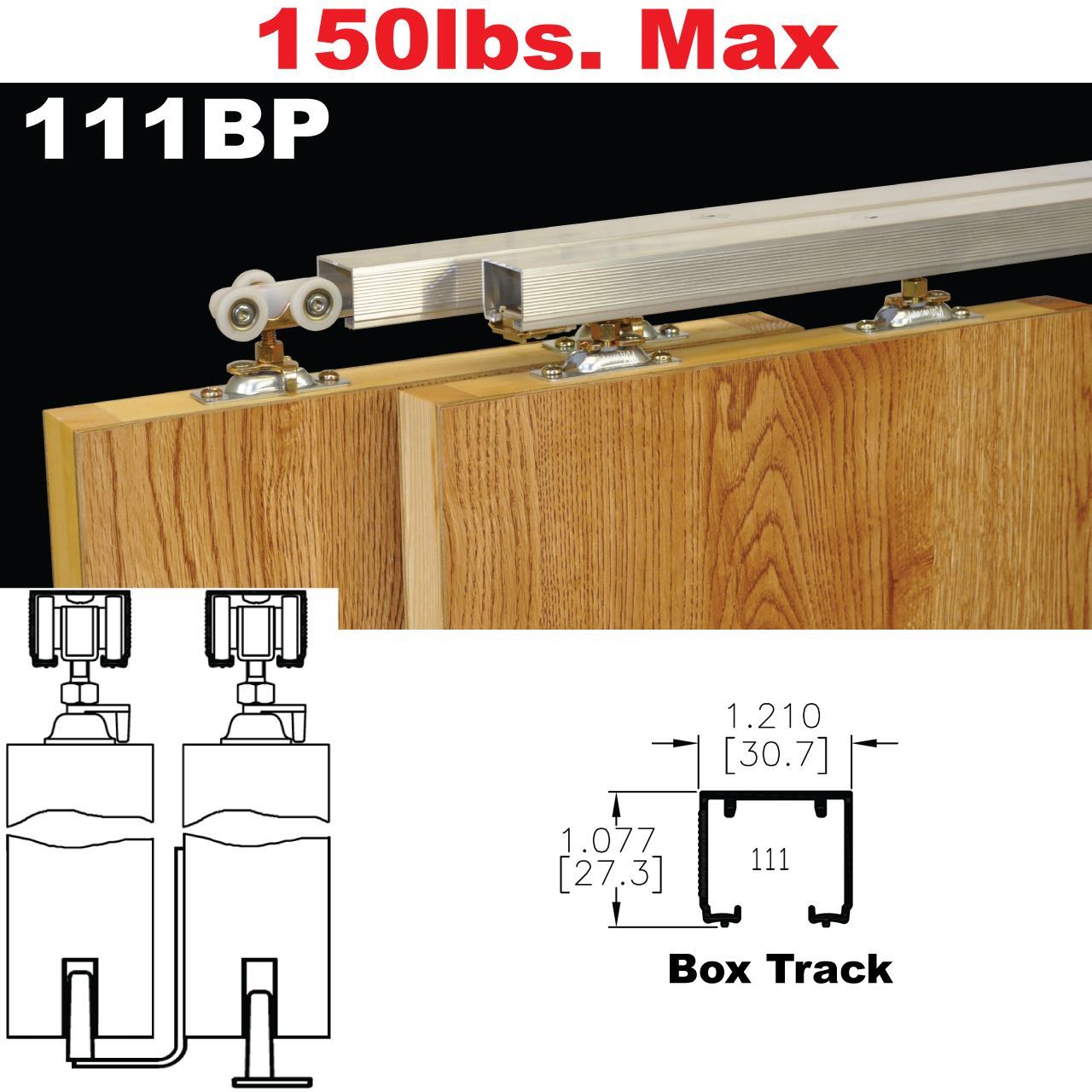

Picture of 111BP Bypass Pocket Door Hardware

111BP Bypass Pocket Door Hardware

  • 150lbs [68kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 7-1/4" [184mm] Min. Wall Structure Thickness

  • *189-1/2" (15' - 3/4") [4813mm] Max. Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • * 4-Door Configuration

    111BP Installation Instructions

    Products specifications
    Max. Weight Per Door150lbs. [68kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door150lbs. [68kg]
    ApplicationInterior Residential/Commercial
    Door Thickness1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
    Series Track111
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.3/4"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
