  • 11BP1063 111BP 36" (2-1/4") x 2-Door Bypass Pocket Door Hardware Set

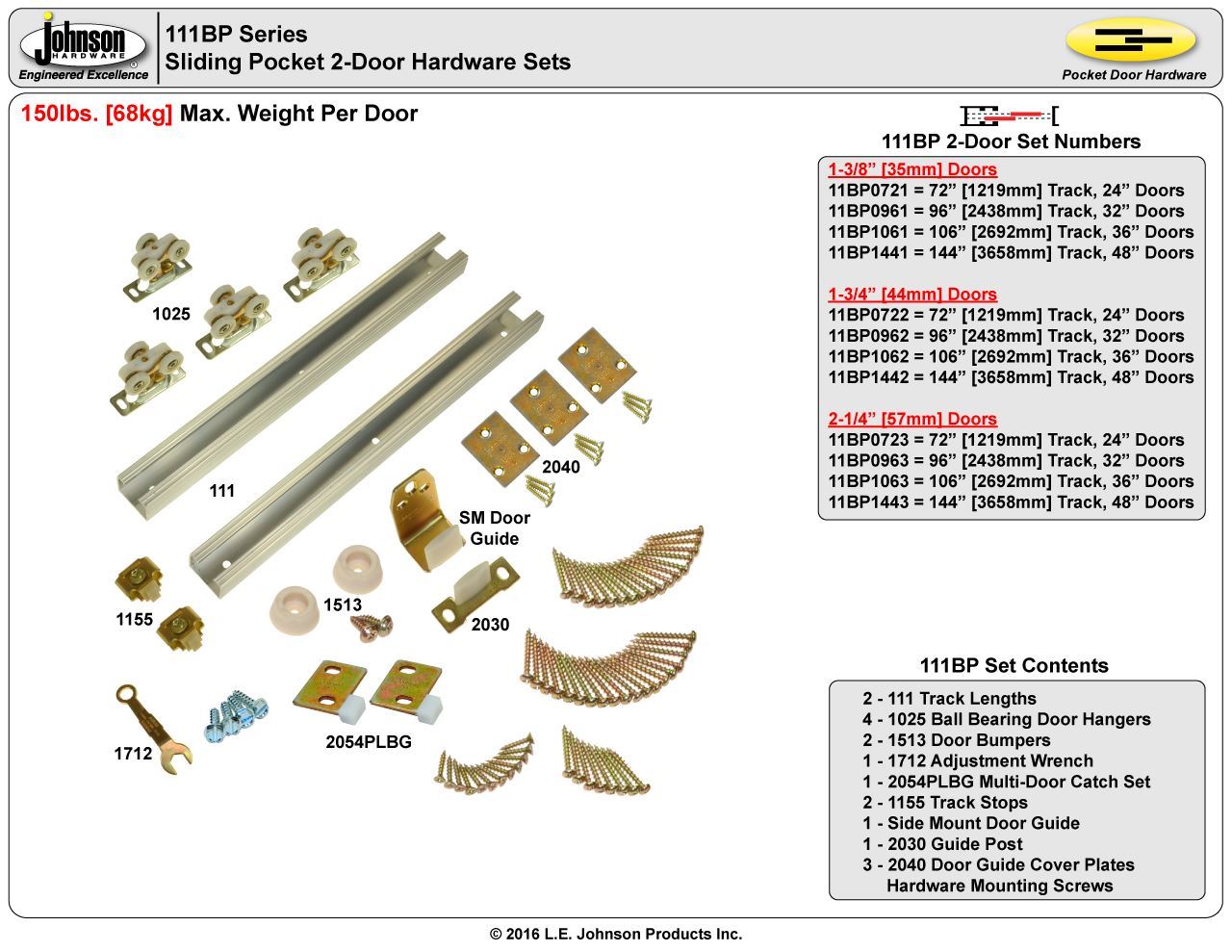

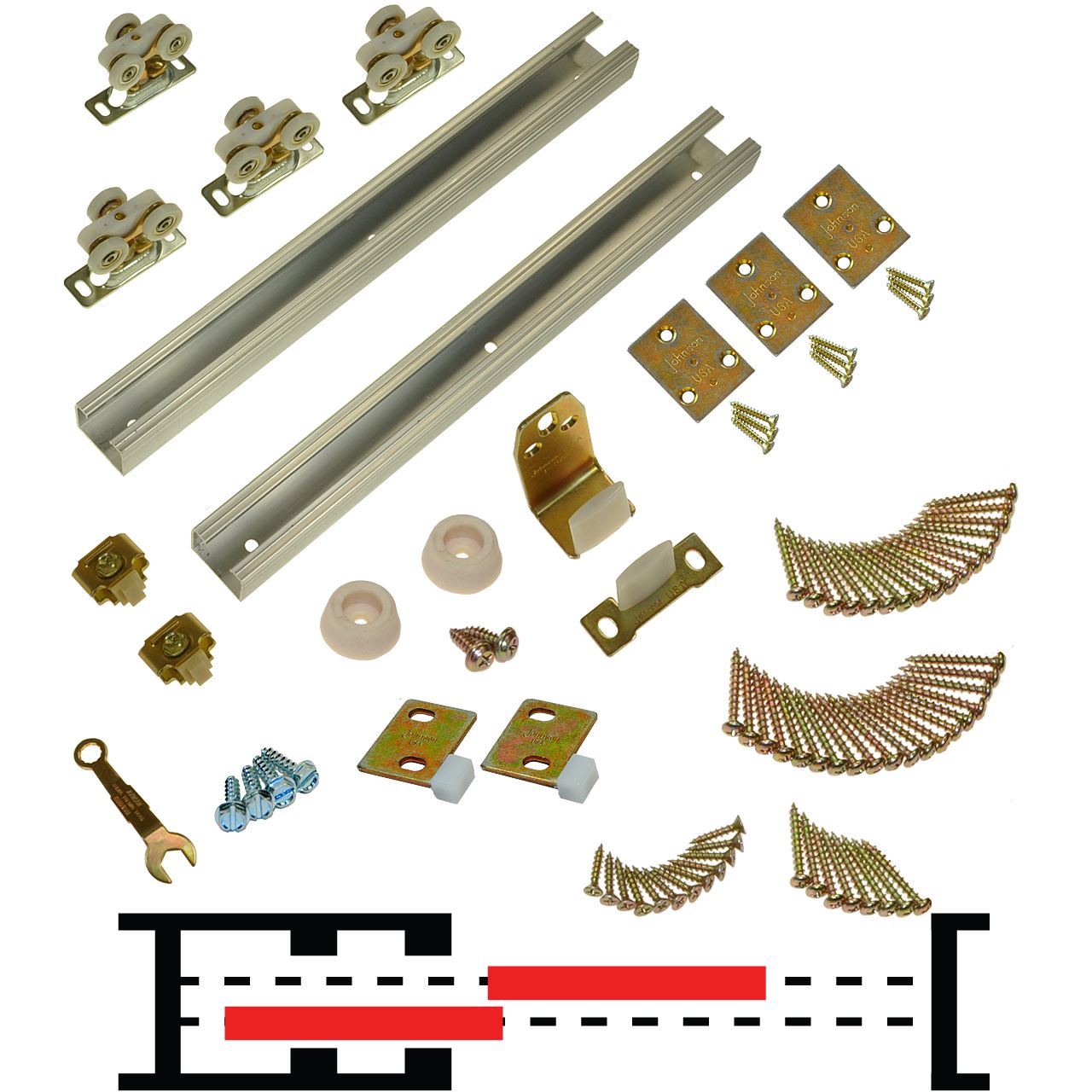

Picture of 11BP1063 111BP 36" (2-1/4") x 2-Door Bypass Pocket Door Hardware Set
Picture of 11BP1063 111BP 36" (2-1/4") x 2-Door Bypass Pocket Door Hardware Set Picture of 11BP1063 111BP 36" (2-1/4") x 2-Door Bypass Pocket Door Hardware Set

11BP1063 111BP 36" (2-1/4") x 2-Door Bypass Pocket Door Hardware Set

$156.77
  • 150lbs [68kg] Max. Weight Per Door

  • 36" 3/0 [914mm] x 2 Max. Width Per Door

  • 106" 8/10 [2692mm] x 2 Track Length

  • 2-1/4" [57mm] Door Thickness
  • 7-1/4" (2 x 8) [184mm] Min. Wall Structure Thickness

  • 70" (5' - 10") [1778mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 111BP Installation Instructions
    Manufacturer part number: 11BP1063
    Products specifications
    Hardware Sets2-Door
    Door Thickness2-1/4" [57mm]
    Max. Door Width36" X 2 (3' - 0" X 2) [914mm X 2]
    Track Length106" x 2 (8' - 10" x 2) [2692mm x 2]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
    Products specifications
    Hardware Sets2-Door
    Door Thickness2-1/4" [57mm]
    Max. Door Width36" X 2 (3' - 0" X 2) [914mm X 2]
    Track Length106" x 2 (8' - 10" x 2) [2692mm x 2]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
