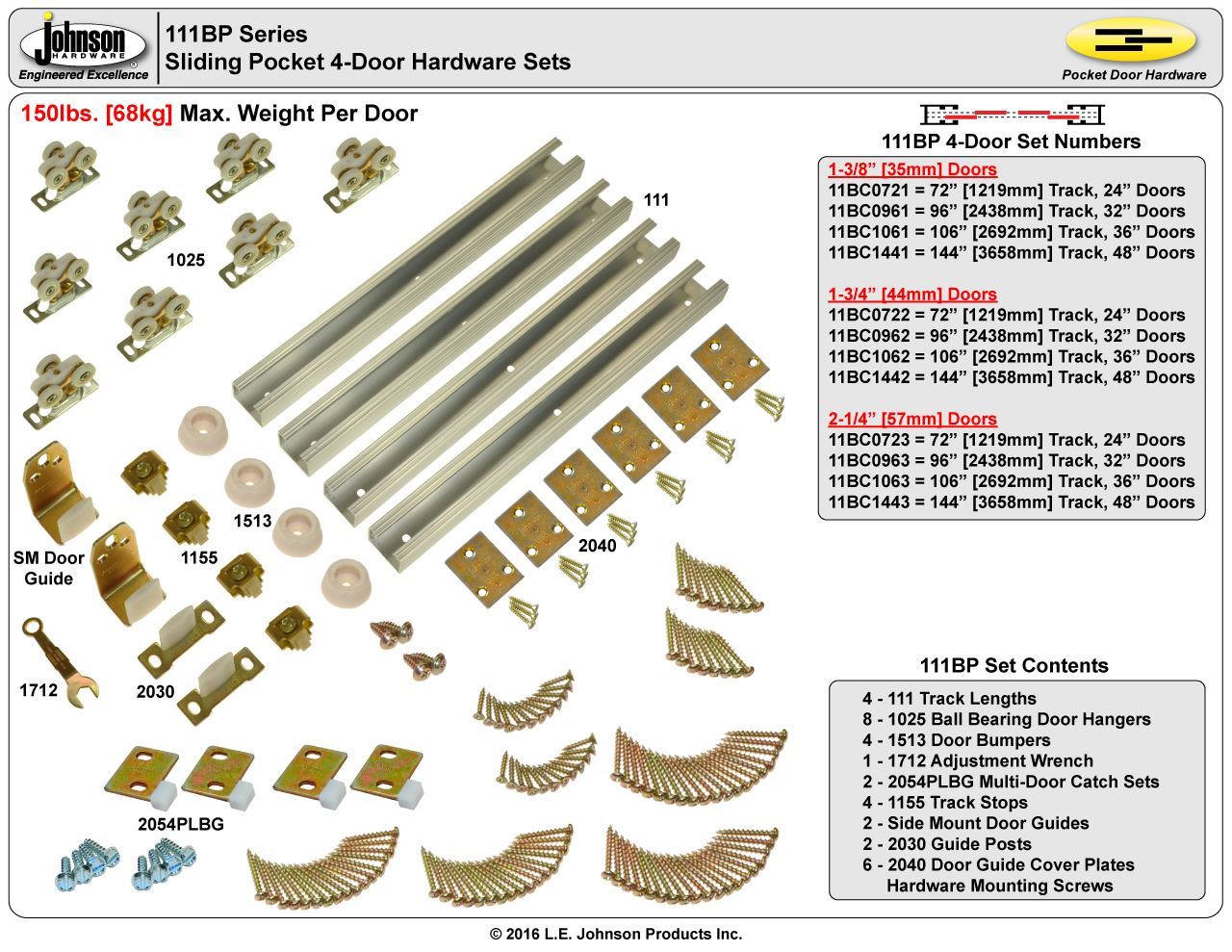

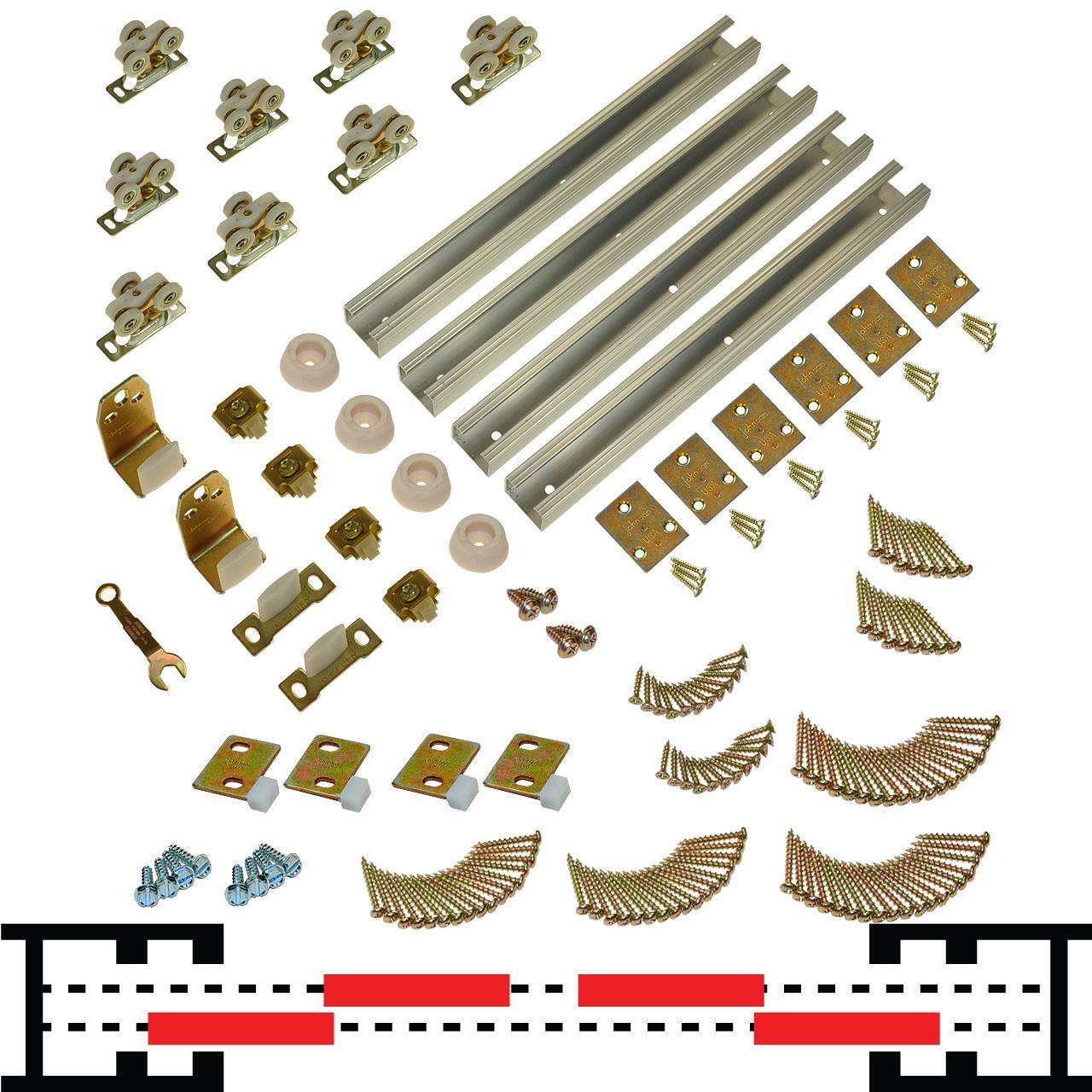

11BC0962 111BC 32" (1-3/4") x 4-Door Bypass Pocket Door Hardware Set

$277.75
  • 150lbs [68kg] Max. Weight Per Door

  • 32" 2/8 [813mm] x 4 Max. Width Per Door

  • 96" 8/0 [2438mm] x 4 Track Length

  • 1-3/4" [44mm] Door Thickness
  • 7-1/4" (2 x 8) [184mm] Min. Wall Structure Thickness

  • 125 - 1/2" (10' - 5-1/2") [3188mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 111BP Installation Instructions
    Manufacturer part number: 11BC0962
    Products specifications
    Hardware Sets4-Door Converging
    Door Thickness1-3/4" [44mm]
    Max. Door Width32" X 4 (2' - 8" X 4) [813mm X 4]
    Track Length96” x 4 (8' - 0" x 4) [2438mm x 4]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
    Products specifications
    Hardware Sets4-Door Converging
    Door Thickness1-3/4" [44mm]
    Max. Door Width32" X 4 (2' - 8" X 4) [813mm X 4]
    Track Length96” x 4 (8' - 0" x 4) [2438mm x 4]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
