- 1060 1060 SOFT CLOSE BULK BOX

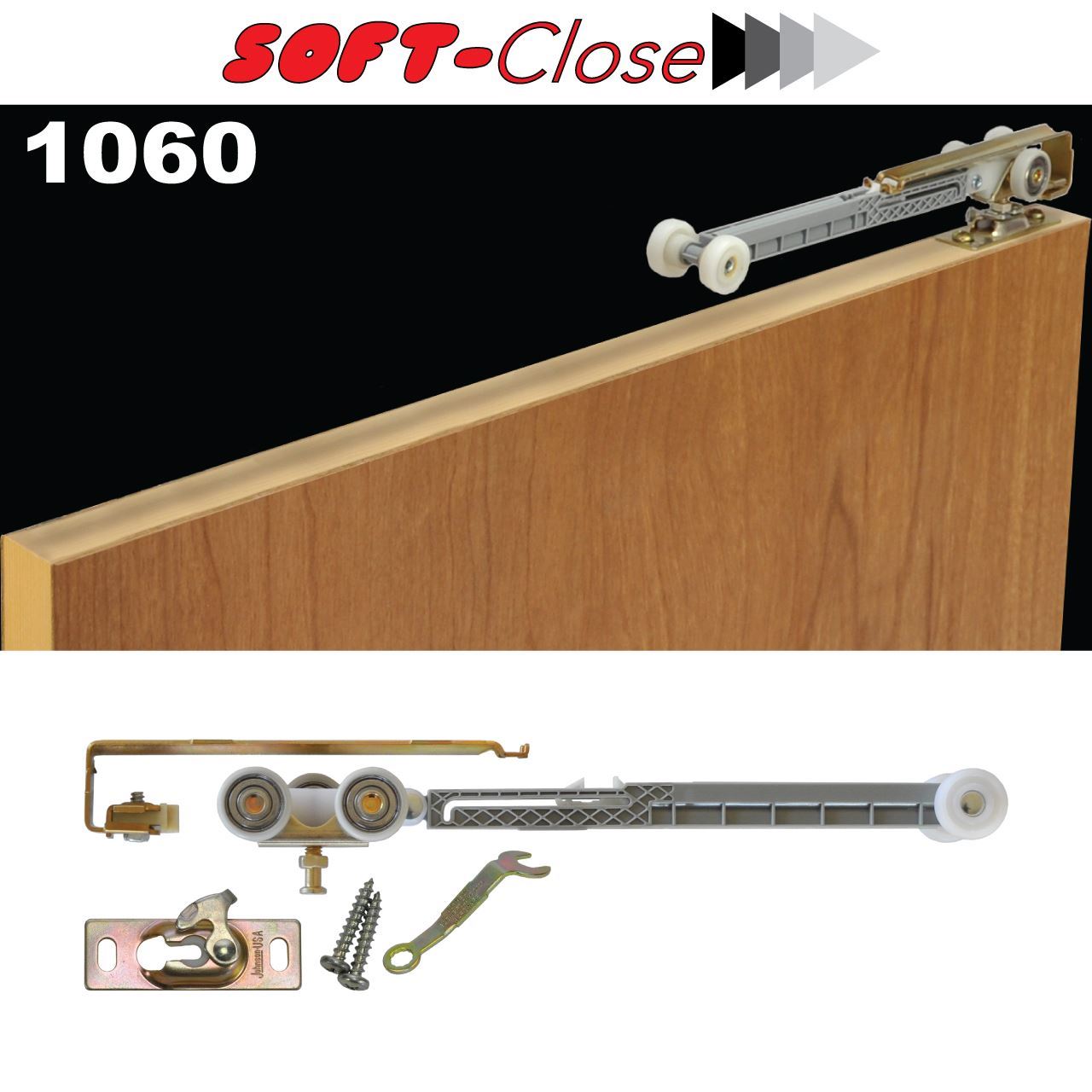

The 1060 Single Direction Soft Operation Kit contains a single soft operation dampener which will make a single door softly operate in a single direction only. For single direction soft door operation, the 1060 must be used in combination with a 1125 Ball Bearing Door Hanger, dampener on one end of the door and 1125 on the other end. For bi-directional soft door operation two 1060's are required, one on each end of the door. Soft operation kits can also be used to convert existing non-soft operating 100 Series Track installations to soft operation or are available prepackaged with select 100 Series Hardware Sets for new installations.
|
Related Products
1031SC01 100PD W/1060 PARTS BAG
Use this part set in combination with 1060 Soft-Close Kits and 100 Series Track to create custom 100 Series hardware sets.
1060SOFT 100 RETROFIT SOFT CLOSE
1062 Bidirectional Soft Operation Kit
1031SC02 SOFT CLOSE 2DR BYPASS BAG
1031SC03 SOFT CLOSE 3DR BYPASS BAG
1031SC04 SOFT CLOSE 4DR BYPASS BAG
100PD Pocket Door Hardware

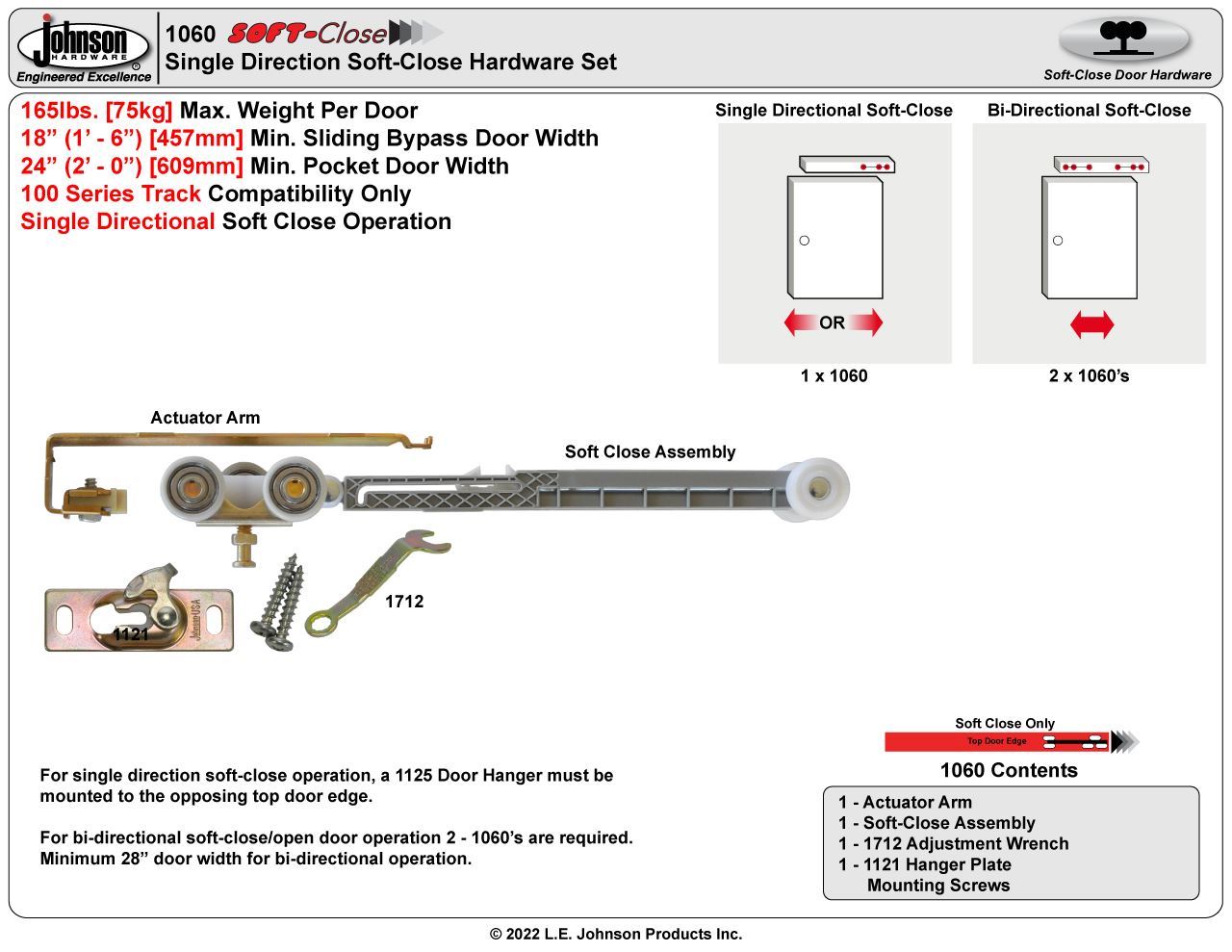

1060 Soft-Close Instructions
1060 Soft-Close Dimensions
28" 2/4 [711mm] min. door width for bidirectional soft operation
20" 1/8 [508mm] min. door width for single direction soft operation100BP Bypass Pocket Door Hardware
100MP Tri-Pass Pocket Door Hardware
100MD Multi-Pass Sliding Door Hardware
1500HD/SC Series Pocket Door Frames
1560/SC Series Pocket Door Frames
1562 Series Bypass Pocket Door Frames
2610F Wall Mount Sliding Door Hardware
Soft Close Hangers 165lbs. (75kg) max per door
Ball Bearing Wheel Hangers 200lbs. (91kg) max per door
