Picture of 1020 Standard Wheel Door Hanger
Picture of 1020 Standard Wheel Door Hanger Picture of 1020 Standard Wheel Door Hanger Picture of 1020 Standard Wheel Door Hanger

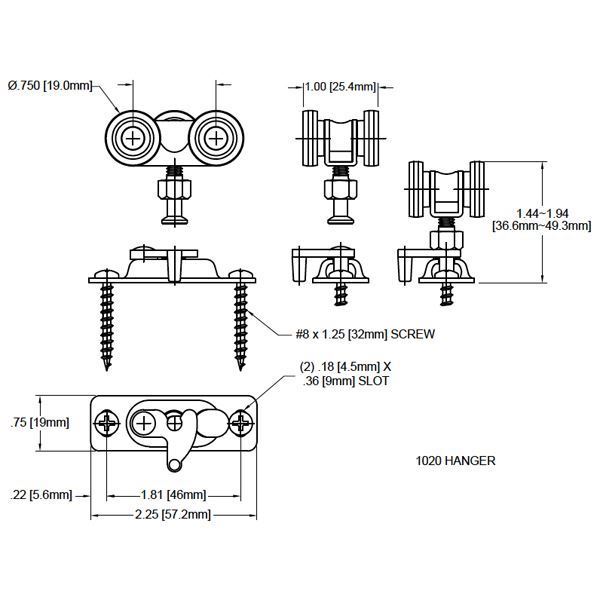

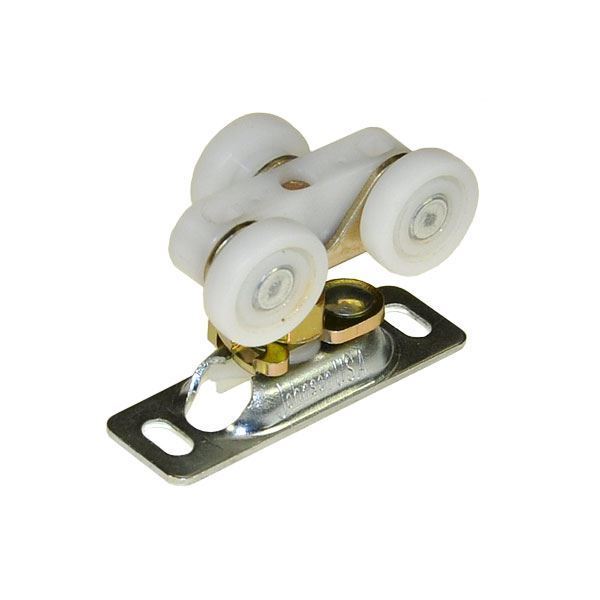

1020 Standard Wheel Door Hanger

$6.44
  • 80lbs [36kg] Weight capacity

  • 3/4" [19mm] Wheel diameter

  • Solid Nylon Wheel

  • Height Adjustable

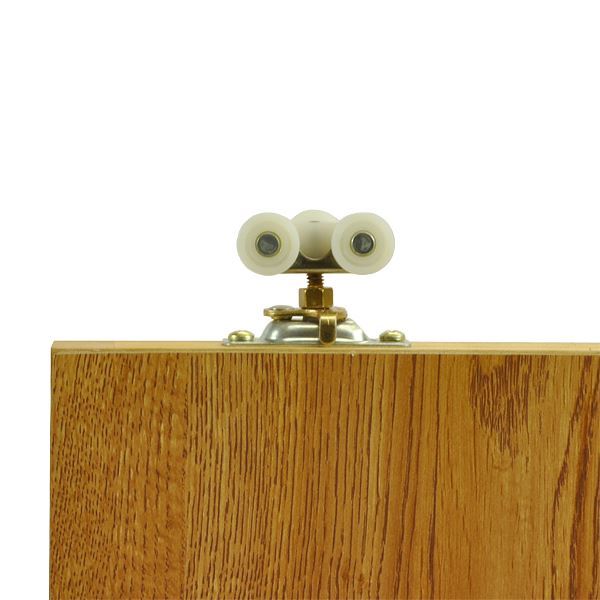

  • Top Mount Hanger Plate

  • Commercial Grade

  • Compatible with 111 or 118F Series Track Only

    • Manufacturer part number: 1020
