  • 10S48234 100SMSC 2-Door Soft Operating Side Mount Sliding Bypass Hardware Set, 1-3/4" [44mm] Door, 48" 4/0 [1219mm] x 2 Track Length

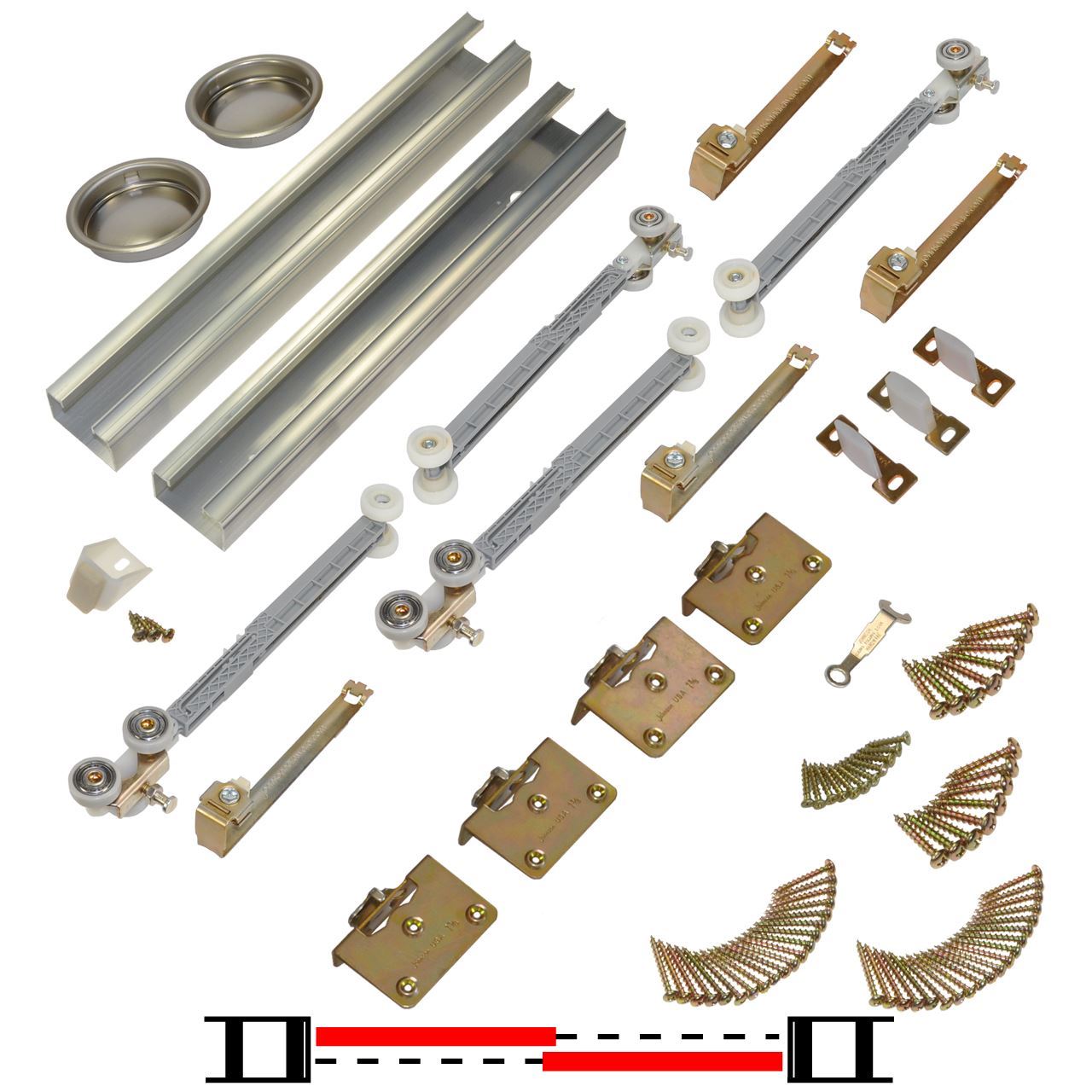

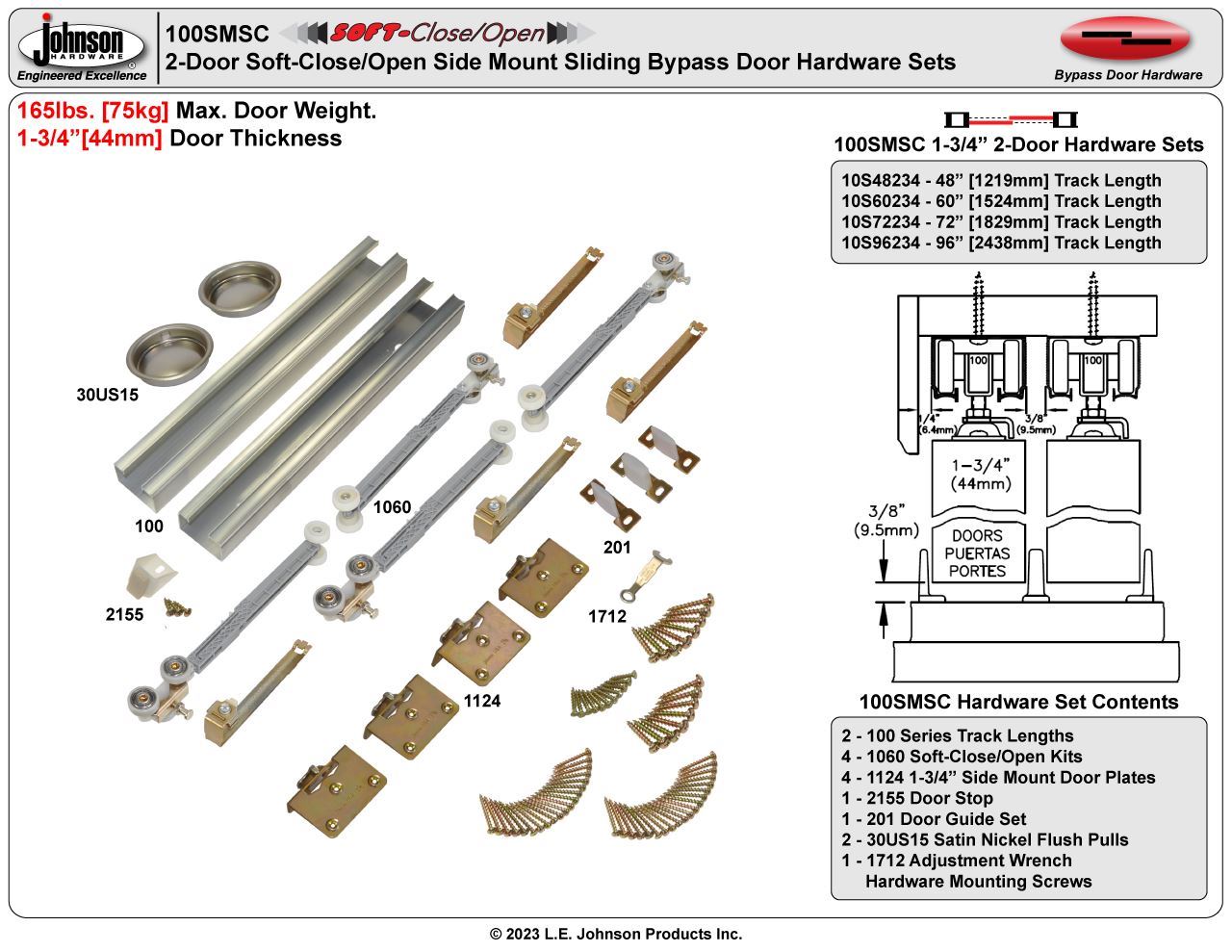

Picture of 10S48234 100SMSC 2-Door Soft Operating Side Mount Sliding Bypass Hardware Set, 1-3/4" [44mm] Door, 48" 4/0 [1219mm] x 2 Track Length
Picture of 10S48234 100SMSC 2-Door Soft Operating Side Mount Sliding Bypass Hardware Set, 1-3/4" [44mm] Door, 48" 4/0 [1219mm] x 2 Track Length Picture of 10S48234 100SMSC 2-Door Soft Operating Side Mount Sliding Bypass Hardware Set, 1-3/4" [44mm] Door, 48" 4/0 [1219mm] x 2 Track Length

10S48234 100SMSC 2-Door Soft Operating Side Mount Sliding Bypass Hardware Set, 1-3/4" [44mm] Door, 48" 4/0 [1219mm] x 2 Track Length

$272.85
  • 165lbs [75kg] Max. Per Door

  • 48" 4/0 [1219mm] x 2 Track Length
  • 24" 2/0 [610mm] x 2 Max. Door Width

  • 1-3/4" [44mm] Door Thickness
  • Soft Operating Ball Bearing Hanger Type

  • Commercial Grade Sliding Bypass Door Hardware

    • 100SD Installation Instructions
    Manufacturer part number: 10S48234
    Products specifications
    Hardware SetsSoft-Open/Close - Mill Track
    Max. Door Width24" X 2 (2' - 0" X 2) [610mm X 2], 24" X 2 (2' - 0" X 2) [610mm X 2]
    Doors2 - Doors
    Max. Weight Per Door200lbs. [91kg]
    Track Length48" x 2 (4' - 0" x 2) [1219mm x 2]
    Max. Door HeightUnlimited
    Door Thickness1-3/4" [44mm]
    Products specifications
    Hardware SetsSoft-Open/Close - Mill Track
    Max. Door Width24" X 2 (2' - 0" X 2) [610mm X 2], 24" X 2 (2' - 0" X 2) [610mm X 2]
    Doors2 - Doors
    Max. Weight Per Door200lbs. [91kg]
    Track Length48" x 2 (4' - 0" x 2) [1219mm x 2]
    Max. Door HeightUnlimited
    Door Thickness1-3/4" [44mm]
