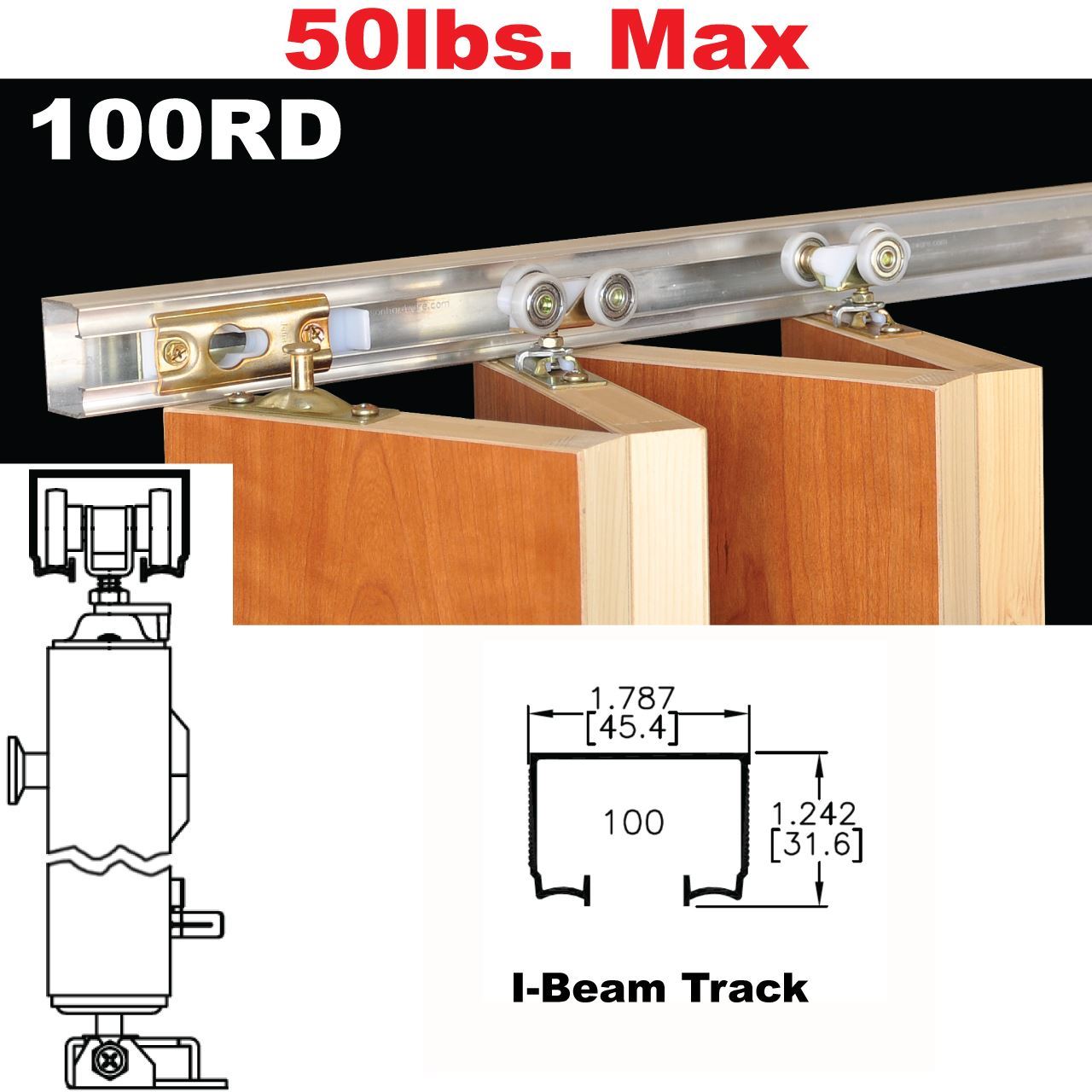

Picture of 100RD Multi-Fold Door Hardware

100RD Multi-Fold Door Hardware

  • 50lbs [23kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 1" [25mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Commercial Grade Top Hung Multi-Fold Door Hardware

    • 100RD Installation Instructions
    Products specifications
    Max. Weight Per Panel50 lbs. [23kg]
    ApplicationInterior Residential
    Panel Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Panel50 lbs. [23kg]
    ApplicationInterior Residential
    Panel Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
