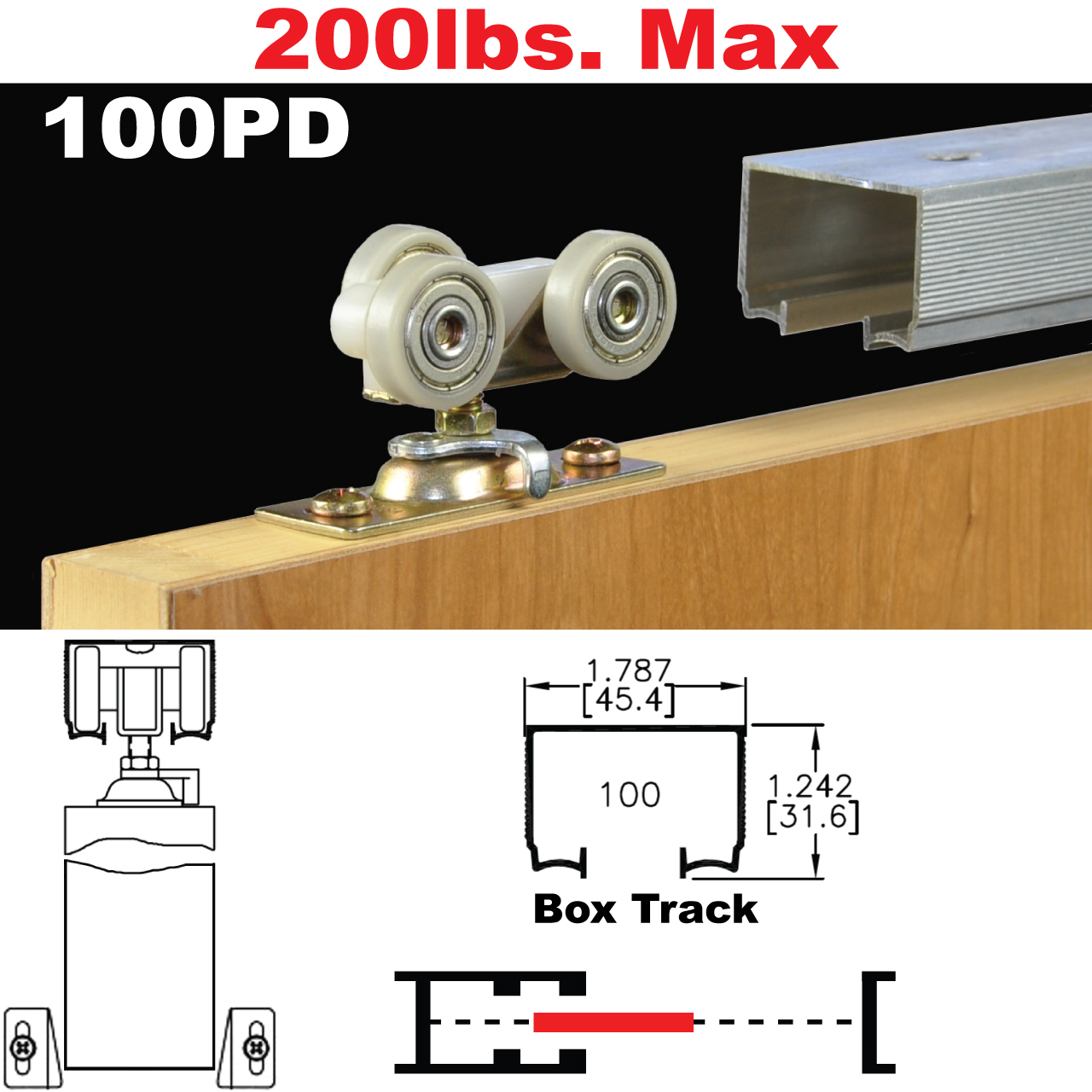

Picture of 100PD Pocket Door Hardware

100PD Pocket Door Hardware

  • 125lbs [57kg] Max. per door standard wheel hanger

  • 165lbs [75kg] Max. per door soft operation hanger

  • 200lbs [91kg] Max. per door ball bearing hanger

  • 1" [25mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Pocket Door Hardware

    • 100PD Installation Instructions
    1060 Soft-Close Instructions
    1060 Soft-Close Dimensions

    28" 2/4 [711mm] min. door width for bidirectional soft operation

    20" 1/8 [508mm] min. door width for single direction soft operation

    Products specifications
    Max. Weight Per Door200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1" [25mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1" [25mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
