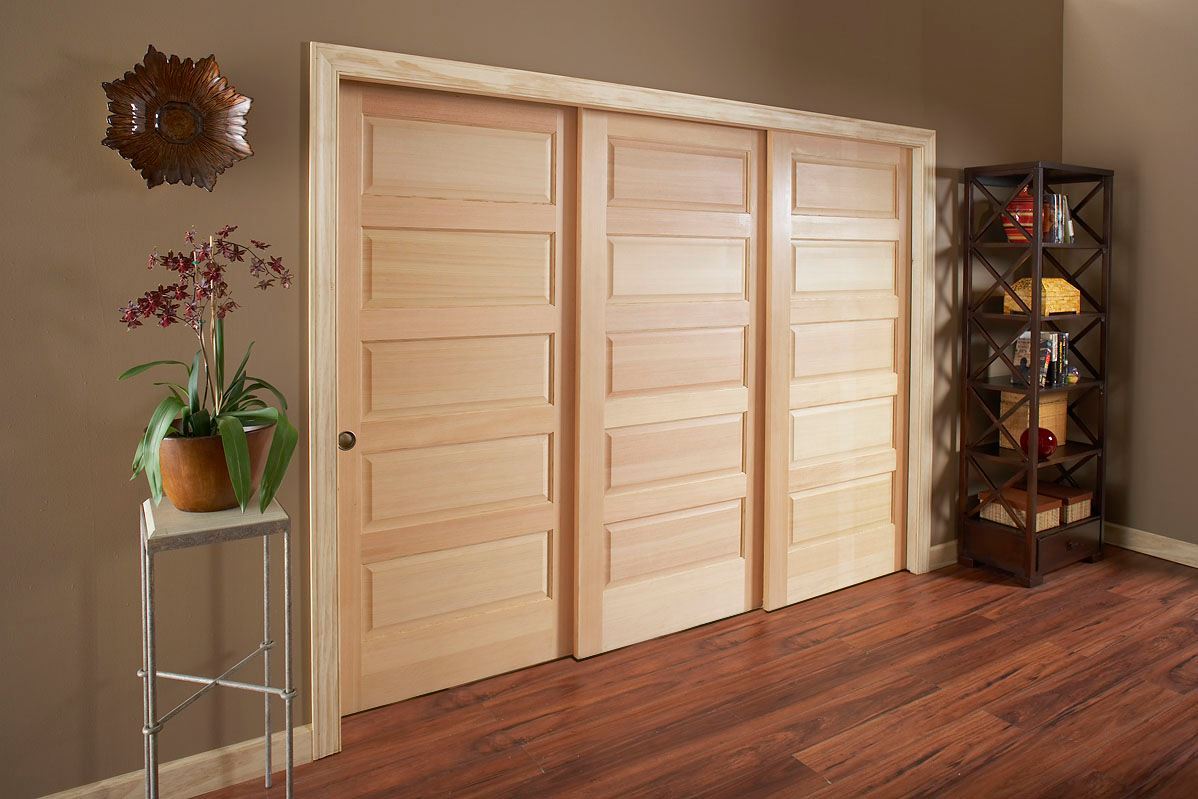

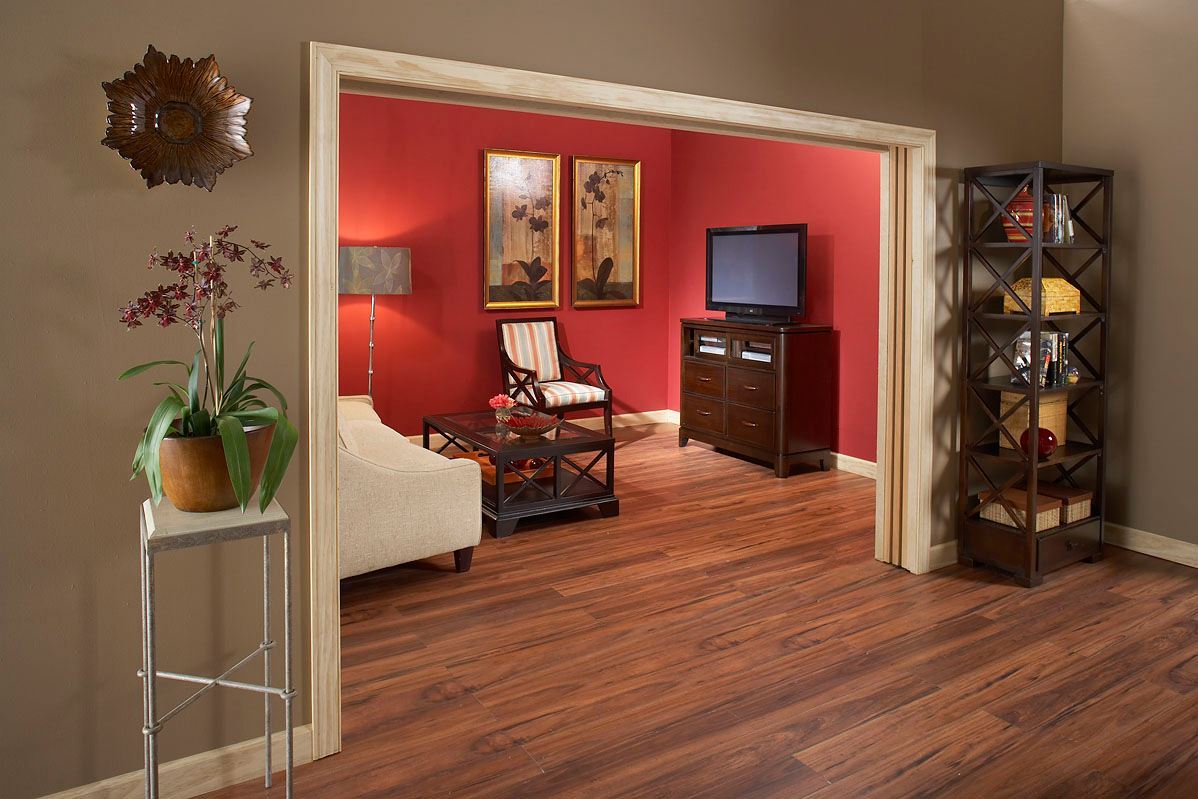

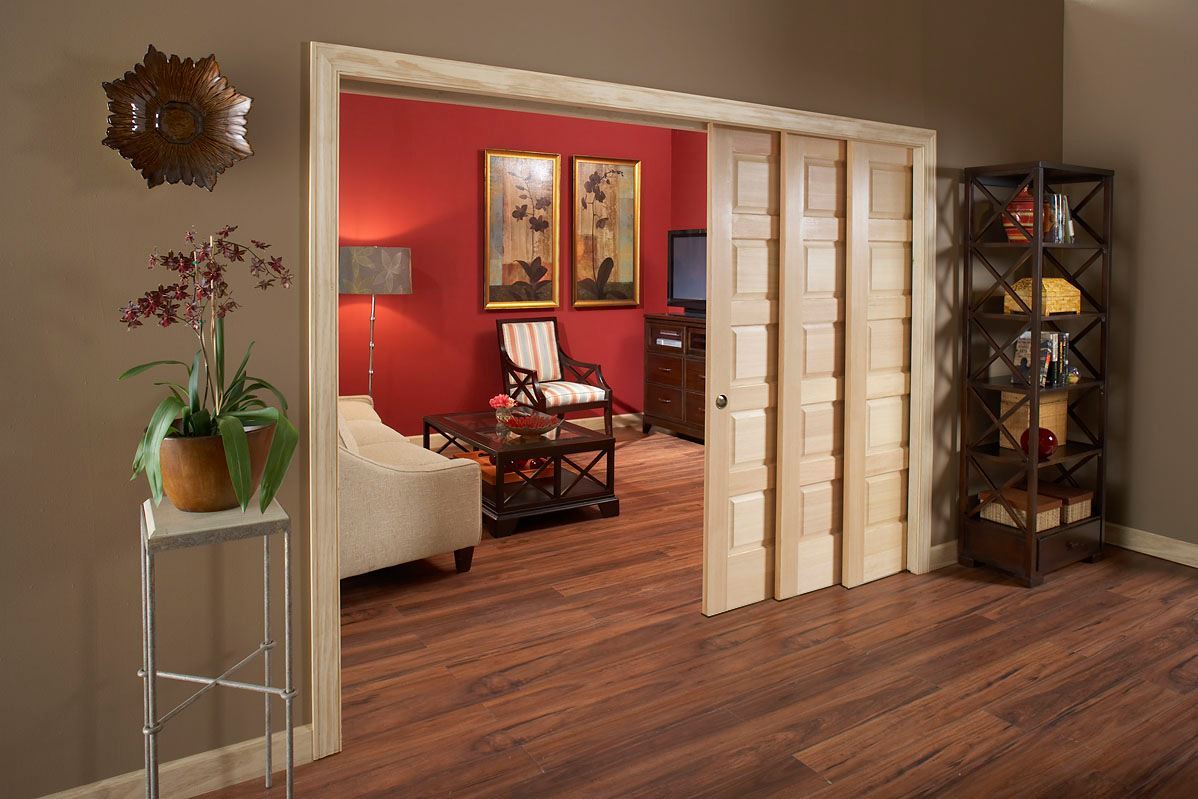

100MP Tri-Pass Pocket Door Hardware

200lbs [91kg] Max. Weight Per Door

1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness

48" 4/0 [1219mm] Max. Width Per Door

9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

*283" (25' - 1/2") [7188mm] Max. Opening Width

Soft-Close Compatible W/ Optional Soft-Close Kits

Commercial Grade Top Hung Tri-pass Pocket Door Hardware

* 6-Door Configuration

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track	100
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum

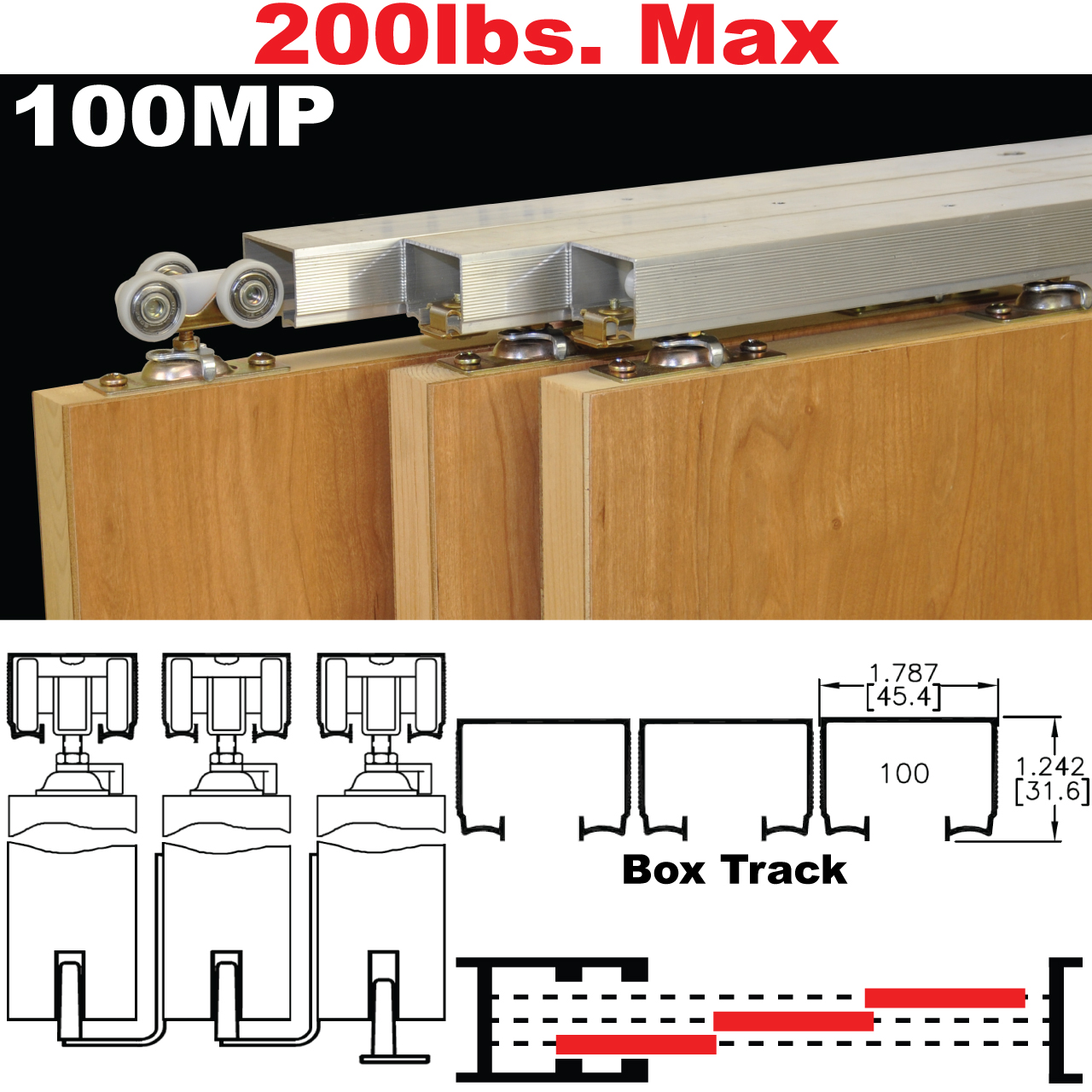

Track Profile	Box Track
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track	100
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
