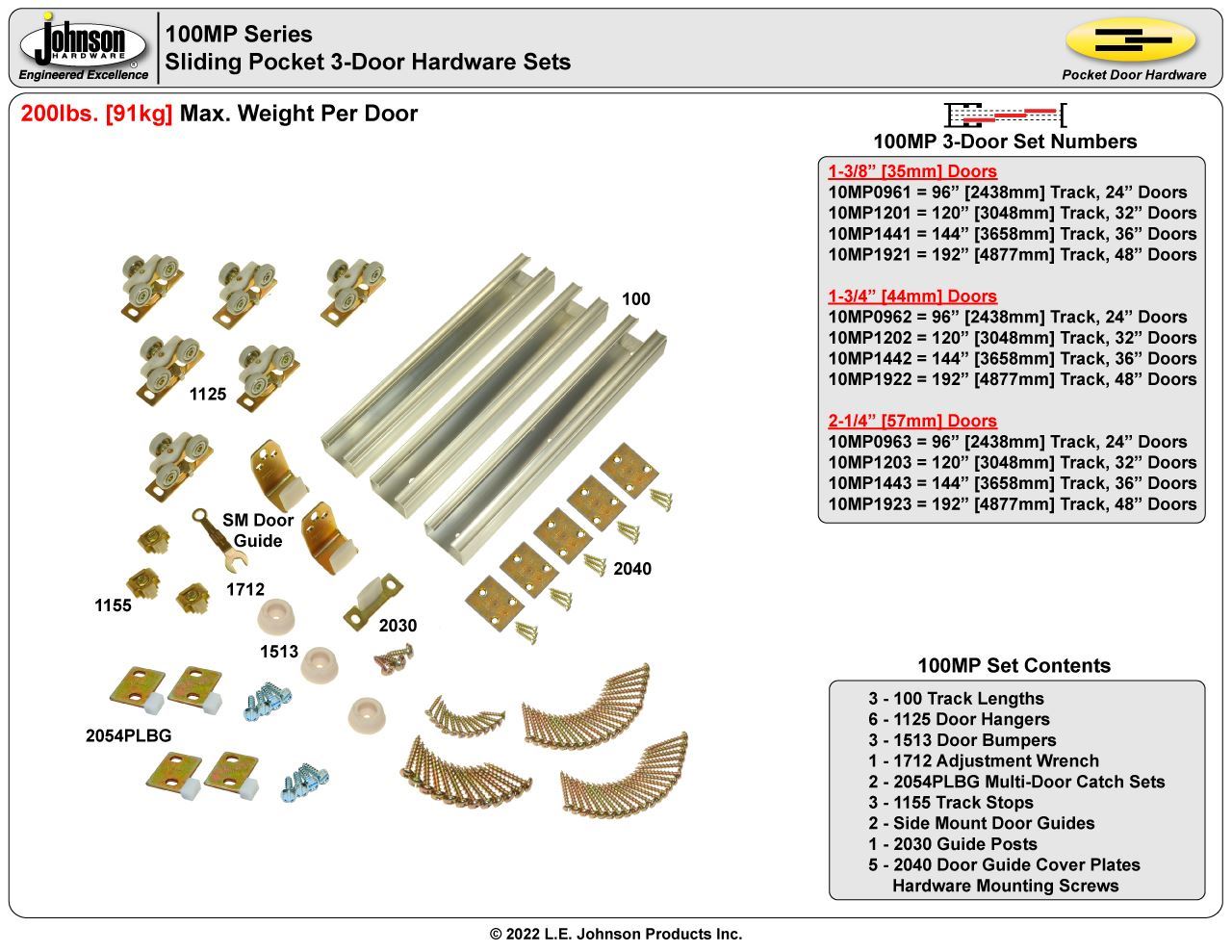

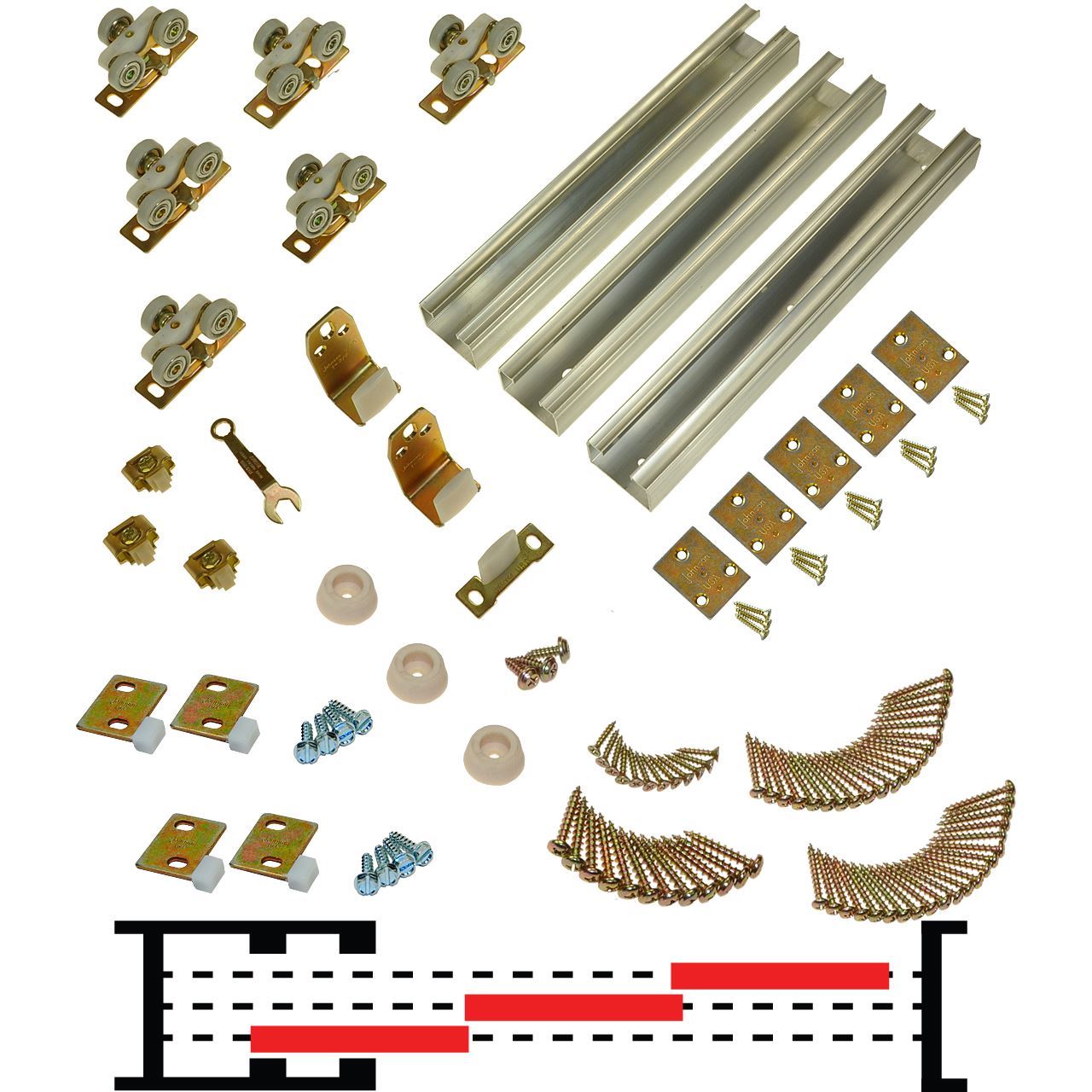

  • 10MP1921 100MP 48" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set
Picture of 10MP1921 100MP 48" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set
Picture of 10MP1921 100MP 48" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set Picture of 10MP1921 100MP 48" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set

10MP1921 100MP 48" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set

$396.48
  • 200lbs [91kg] Max. Weight Per Door

  • 192" 16/0 [4877mm] x 3 Track Length
  • 48" 4/0 [1219mm] x 3 Max. Width Per Door

  • 1-3/8" [35mm] Door Thickness
  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • 140-3/4" (11' - 8-3/4") [3575mm] Max Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • 100MP Installation Instructions
    Manufacturer part number: 10MP1921
    Products specifications
    Hardware Sets3-Door
    Door Thickness1-3/8" [35mm]
    Max. Door Width48" X 3 (4' - 0" X 3) [1219mm X 3]
    Track Length192" x 3 (16' - 0" x 3) [4877mm x 3]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    ApplicationInterior Residential/Commercial
    Max. Weight Per Door200lbs. [91kg]
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Track ProfileBox Track
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Wheel Dia.1"
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
