  • 10MP1441 100MP 36" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set

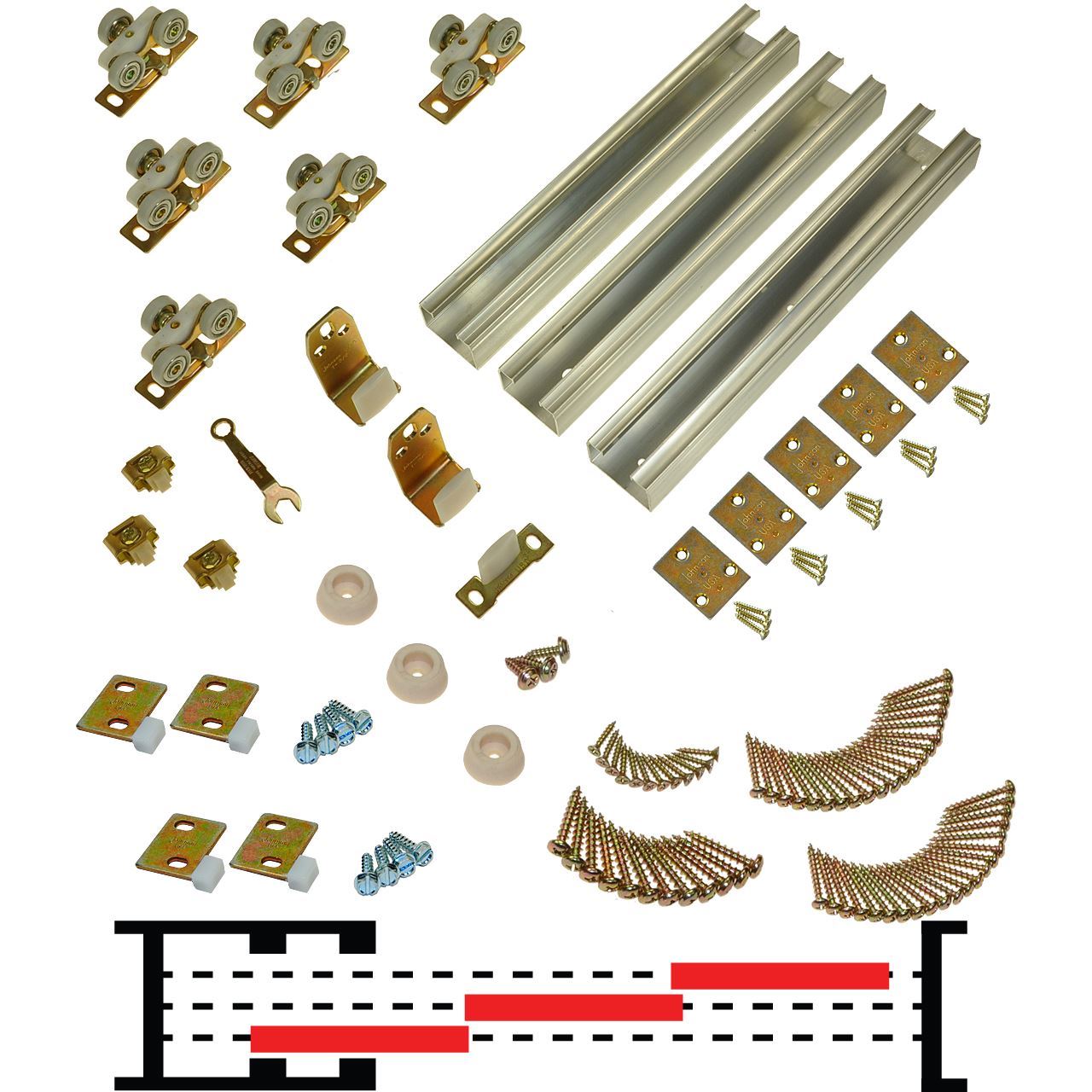

Picture of 10MP1441 100MP 36" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set
Picture of 10MP1441 100MP 36" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set Picture of 10MP1441 100MP 36" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set

10MP1441 100MP 36" (1-3/8") x 3-Door Tri-Pass Pocket Door Hardware Set

$331.65
  • 200lbs [91kg] Max. Weight Per Door

  • 144" 12/0 [3658mm] x 3 Track Length
  • 36" 3/0 [914mm] x 3 Max. Width Per Door

  • 1-3/8" [35mm] Door Thickness
  • 9-1/4" (2 x 10) [235mm] Min. Wall Structure Thickness

  • 104-3/4" (8' - 8-3/4") [2661mm] Max Opening Width

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

  • Trackless Door Guiding
    • 100MP Installation Instructions
    Manufacturer part number: 10MP1441
    Products specifications
    Hardware Sets3-Door
    Door Thickness1-3/8" [35mm]
    Max. Door Width36" X 3 (3' - 0" X 3) [914mm X 3]
    Track Length144" x 3 (12' - 0" x 3) [3658mm x 3]
    Min. Wall Structure Thickness9-1/4" (2 x 10) [235mm]
    ApplicationInterior Residential/Commercial
    Max. Weight Per Door200lbs. [91kg]
    Track Material6063T6 Extruded Aluminum
    Track FinishMill Aluminum
    Track ProfileBox Track
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Wheel Dia.1"
    PackagingSingle Packed, Reinforced Corrugated Box
    Country of OriginU.S.A.
