Picture of 100MD Multi-Pass Sliding Door Hardware
Picture of 100MD Multi-Pass Sliding Door Hardware Picture of 100MD Multi-Pass Sliding Door Hardware Picture of 100MD Multi-Pass Sliding Door Hardware Picture of 100MD Multi-Pass Sliding Door Hardware

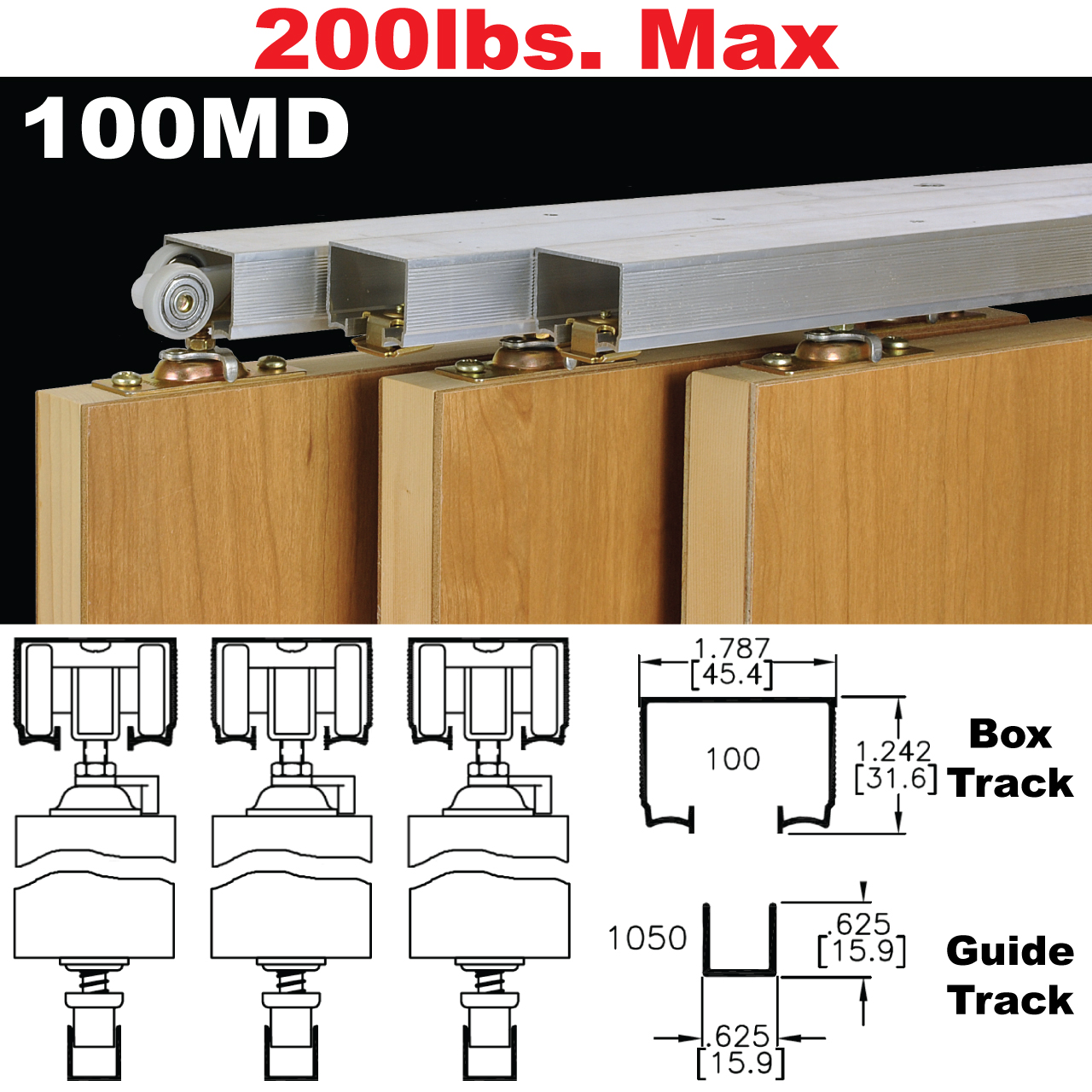

100MD Multi-Pass Sliding Door Hardware

  • Soft-Close/Open Door Operation w/optional 1060 Kit
  • 200lbs [91kg] Max Weight Per Door

  • 5-1/4" [133mm] Min Wall Structure Thickness*

  • 1" [25mm] Min Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • *Wall Structure Thickness Varies With Door Thickness

    100MD Installation Instructions

    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1" [25mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Door200lbs. [91kg]
    ApplicationInterior Residential/Commercial
    Min. Door Thickness1" [25mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
