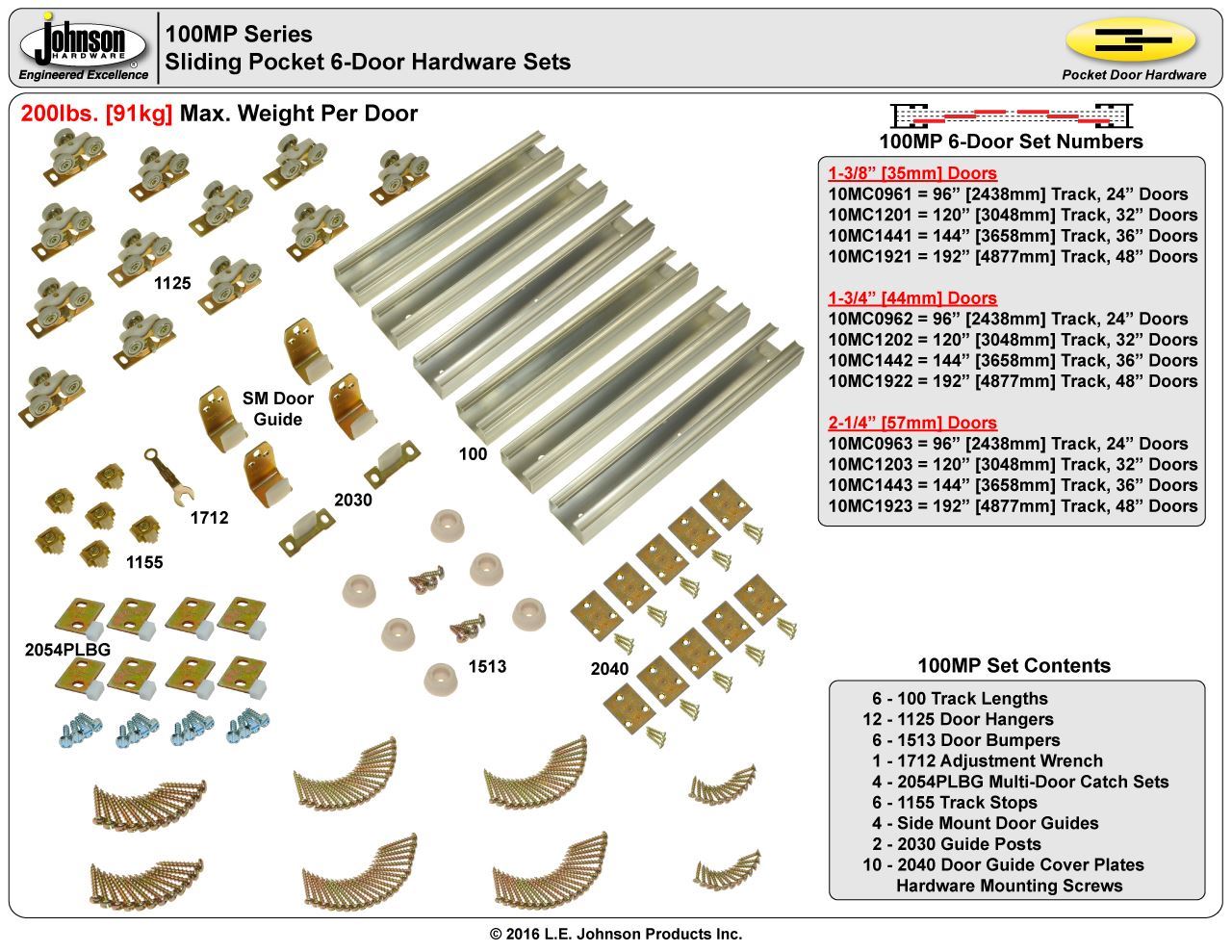

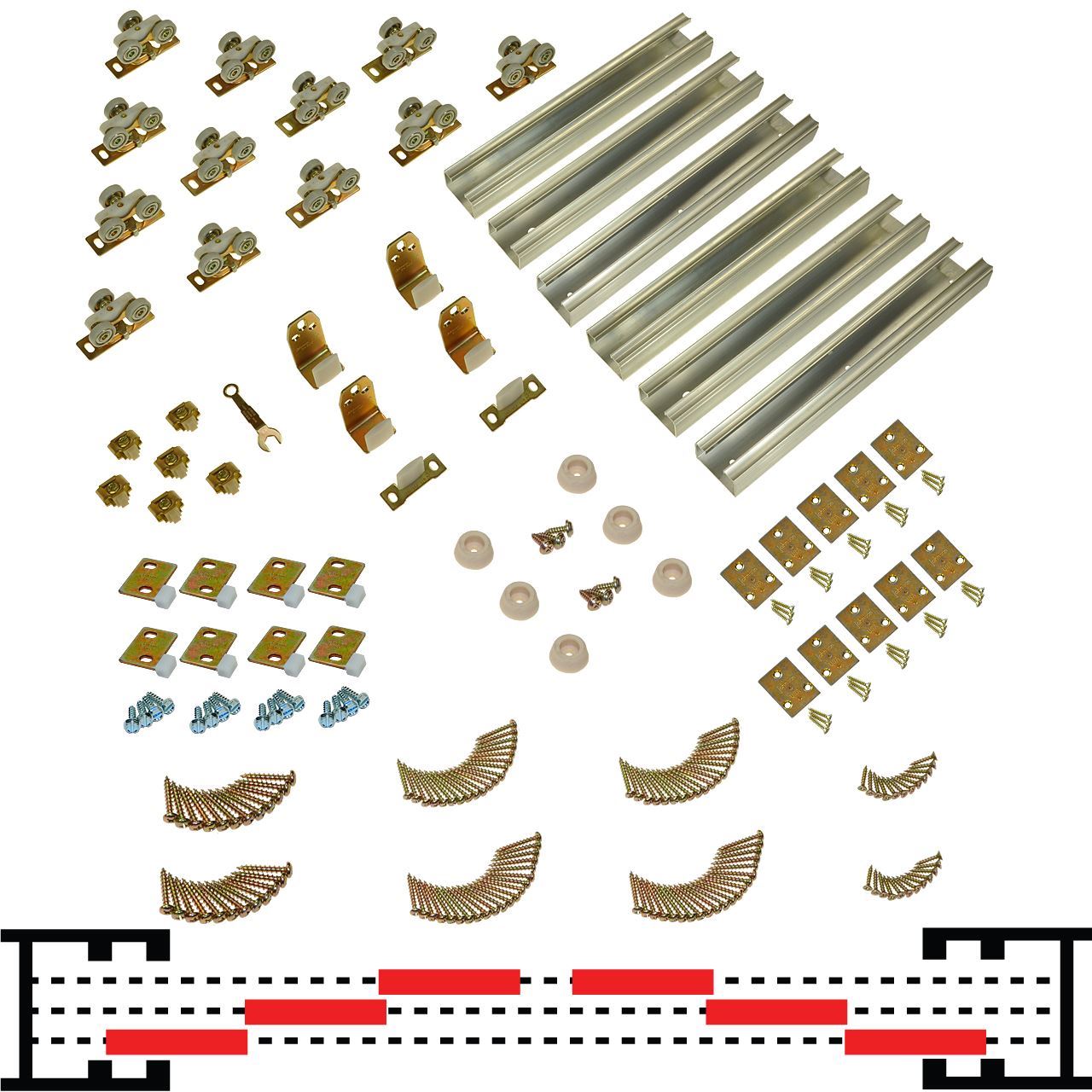

The 100MP is one of the finest medium to heavy duty sliding door systems made. The 100MP is designed to carry heavy solid core doors in both residential and commercial applications where quality counts and trouble-free long life operation is required. The heavy gauge convex rail box track is extruded to the most precise specification, and the fully adjustable guaranteed jump proof tricycle ball bearing hangers glide effortlessly with feather touch operation. Heavy gauge steel components are zinc trivalent plated for a quality appearance.
Products specifications
| Hardware Sets | 6-Door Converging |
| Door Thickness | 1-3/4" [44mm] |
| Max. Door Width | 36" X 6 (3' - 0" X 6) [914mm X 6] |
| Track Length | 144" x 6 (12' - 0" x 6) [3658mm x 6] |
| Min. Wall Structure Thickness | 9-1/4" (2 x 10) [235mm] |
| Application | Interior Residential/Commercial |
| Max. Door Height | 80" (6'- 8") [2032mm] |
| Max. Weight Per Door | 200lbs. [91kg] |
| Track Material | 6063T6 Extruded Aluminum |
| Track Finish | Mill Aluminum |
| Track Profile | Box Track |
| Wheel Type | Nylon Encapsulated Sealed Ball Bearing |
| Wheel Dia. | 1" |
| Packaging | Single Packed, Reinforced Corrugated Box |
| Country of Origin | U.S.A. |
