  • 100FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 60" 5/0 [1524mm] Track Length

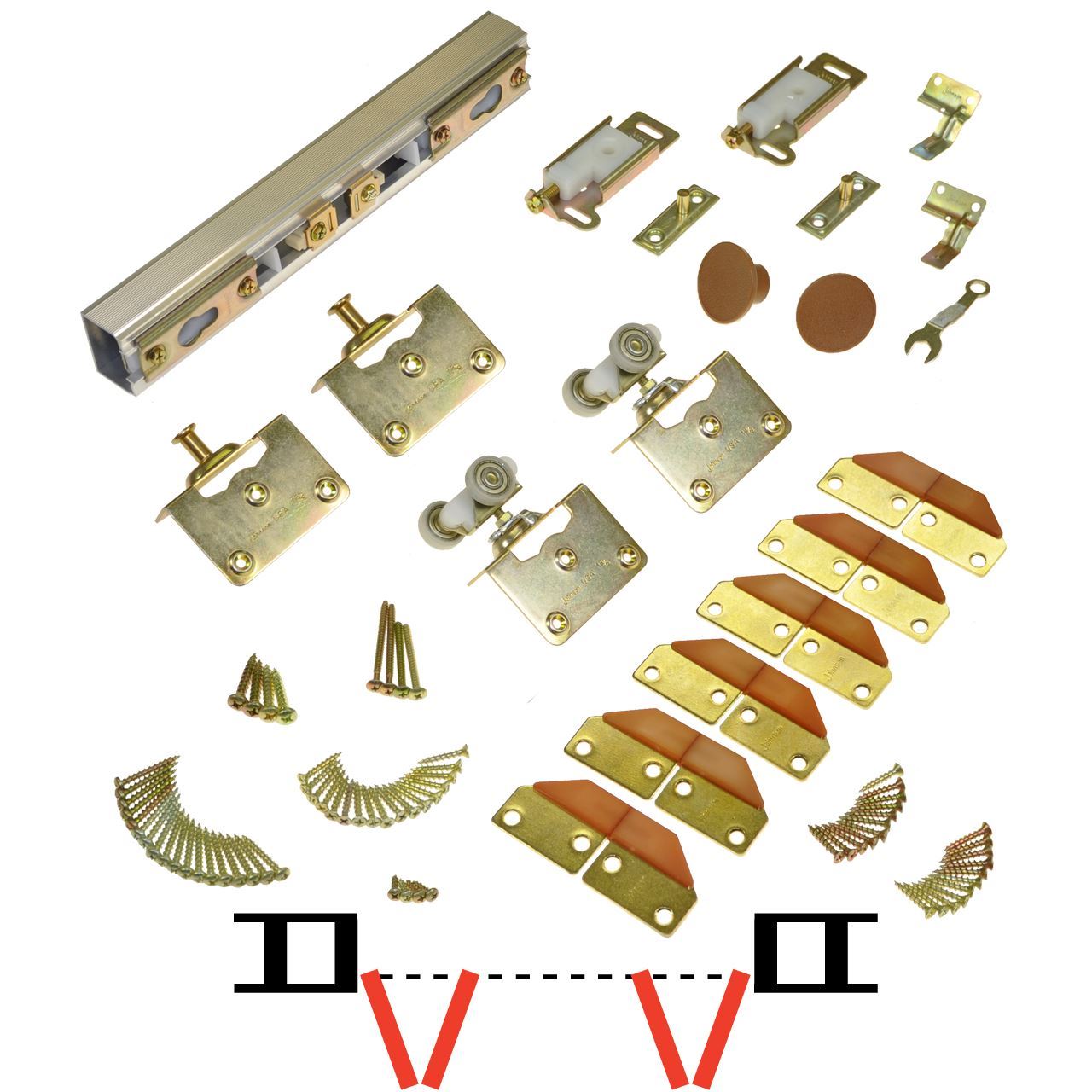

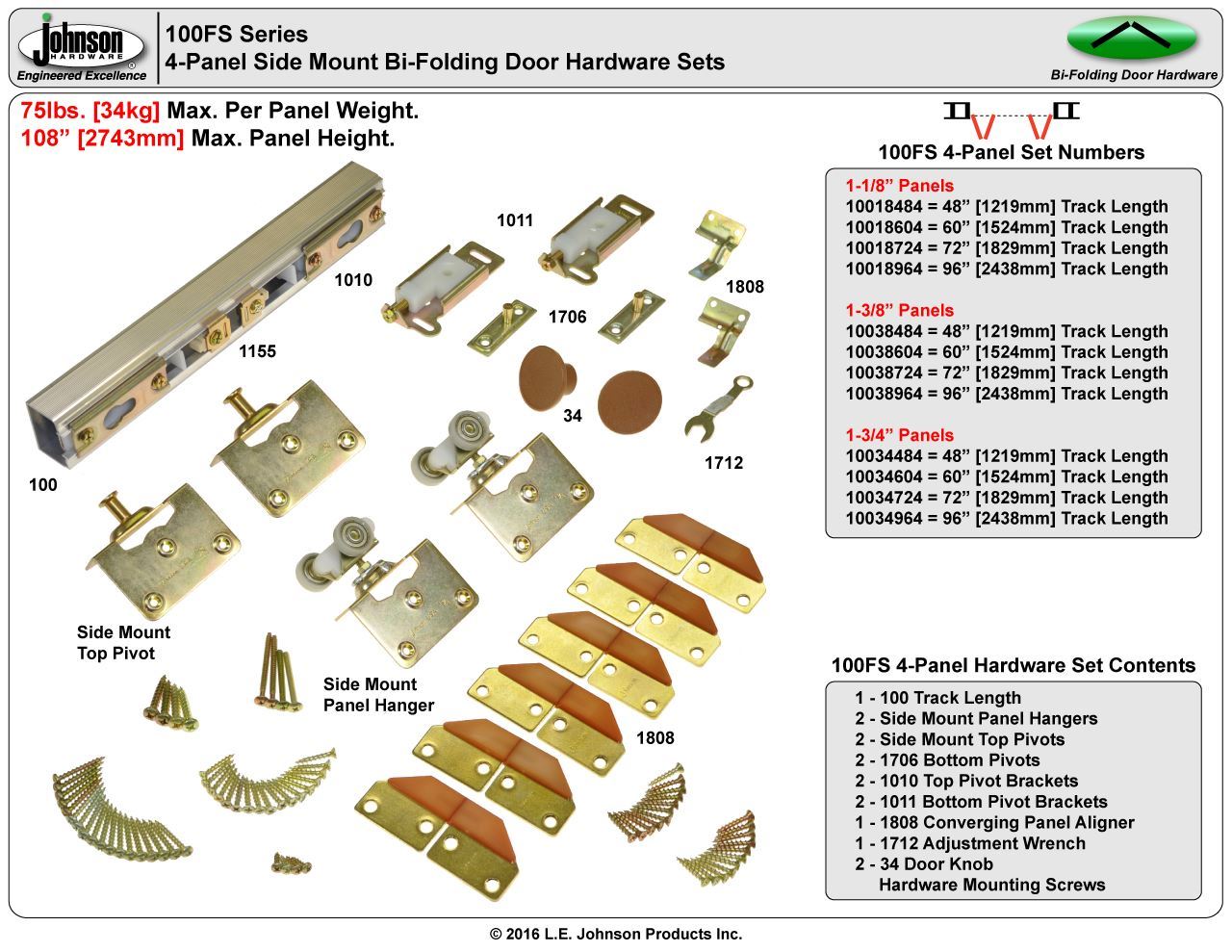

Picture of 100FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 60" 5/0 [1524mm] Track Length
Picture of 100FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 60" 5/0 [1524mm] Track Length Picture of 100FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 60" 5/0 [1524mm] Track Length

100FS 4-Panel Side Mount Hardware Set, 1-3/8" [35mm] Door, 60" 5/0 [1524mm] Track Length

$133.28
  • 75lbs [34kg] Max Weight Per Panel

  • 60" 5/0 [1524mm] Track Length

  • 15" 1/3 [381mm] x 4 Nominal Max Width Per Panel

  • 1-3/8" [35mm] Panel Thickness
  • Side Mount Hardware Attachment

  • Commercial Grade Top Hung, Side Mount Bi-Fold Door Hardware

    • 100FS Installation Instructions
    Manufacturer part number: 10038604
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width15" x 4 (1' - 3" x 4) [381mm x 4]
    Track Length60" (5' - 0") [1524mm]
    Panel Thickness1-3/8" [35mm]
    Panels4-Panels
    Products specifications
    Hardware Sets4-Panel
    Max. Panel Width15" x 4 (1' - 3" x 4) [381mm x 4]
    Track Length60" (5' - 0") [1524mm]
    Panel Thickness1-3/8" [35mm]
    Panels4-Panels
