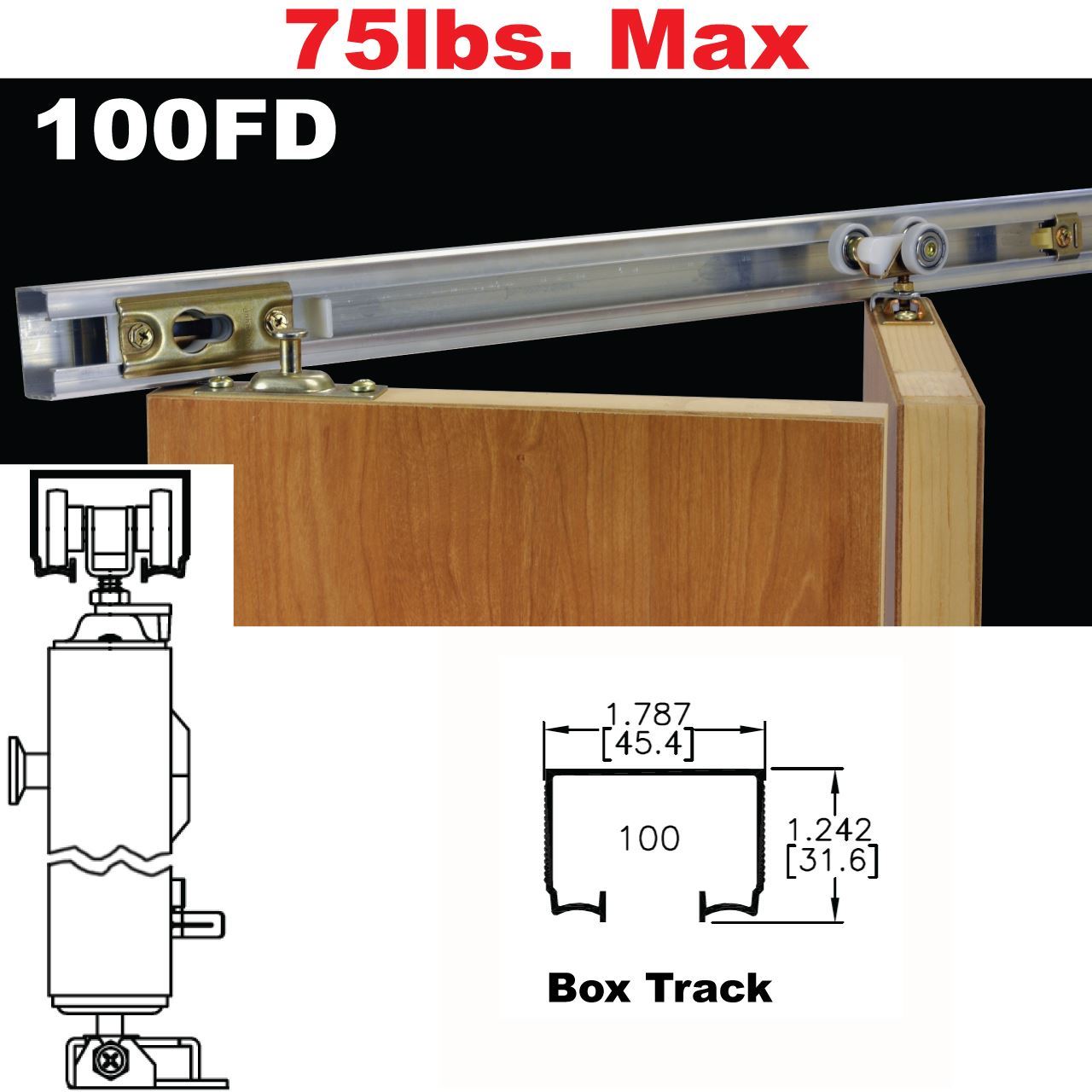

Picture of 100FD Bi-Fold Door Hardware

100FD Bi-Fold Door Hardware

  • 75lbs [34kg] Max Weight Per Panel

  • 24" [610mm] Nominal Max Width Per Panel

  • 108" [2743mm] Max Panel Height

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount or Side Mount Hardware Attachment

  • Commercial Grade Top Hung Bi-Fold Door Hardware

    • 100FD Installation Instructions
    100FS Installation Instructions

    Products specifications
    Max. Weight Per Panel75 lbs. [34kg]
    ApplicationInterior Residential/Commercial
    Panel Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
    Products specifications
    Max. Weight Per Panel75 lbs. [34kg]
    ApplicationInterior Residential/Commercial
    Panel Thickness1" [25mm] to 1-3/4" [44mm]
    Series Track100
    Track FinishMill Aluminum
    Track Material6063T6 Extruded Aluminum
    Track ProfileBox Track
    Hanger TypeTop Mount
    Wheel Dia.1"
    Wheel TypeNylon Encapsulated Sealed Ball Bearing
    Steel Component FinishZinc Trivalent Plated
    Steel Components12-14 Gauge
    Product GradeCommercial/Residential
    PackagingRigid cardboard tube
    Country of OriginU.S.A.
    Specification ConditionsAll product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
