  • 10BP0962 100BP 32" (1-3/4") x 2-Door Bypass Pocket Door Hardware Set
Picture of 10BP0962 100BP 32" (1-3/4") x 2-Door Bypass Pocket Door Hardware Set
Picture of 10BP0962 100BP 32" (1-3/4") x 2-Door Bypass Pocket Door Hardware Set Picture of 10BP0962 100BP 32" (1-3/4") x 2-Door Bypass Pocket Door Hardware Set

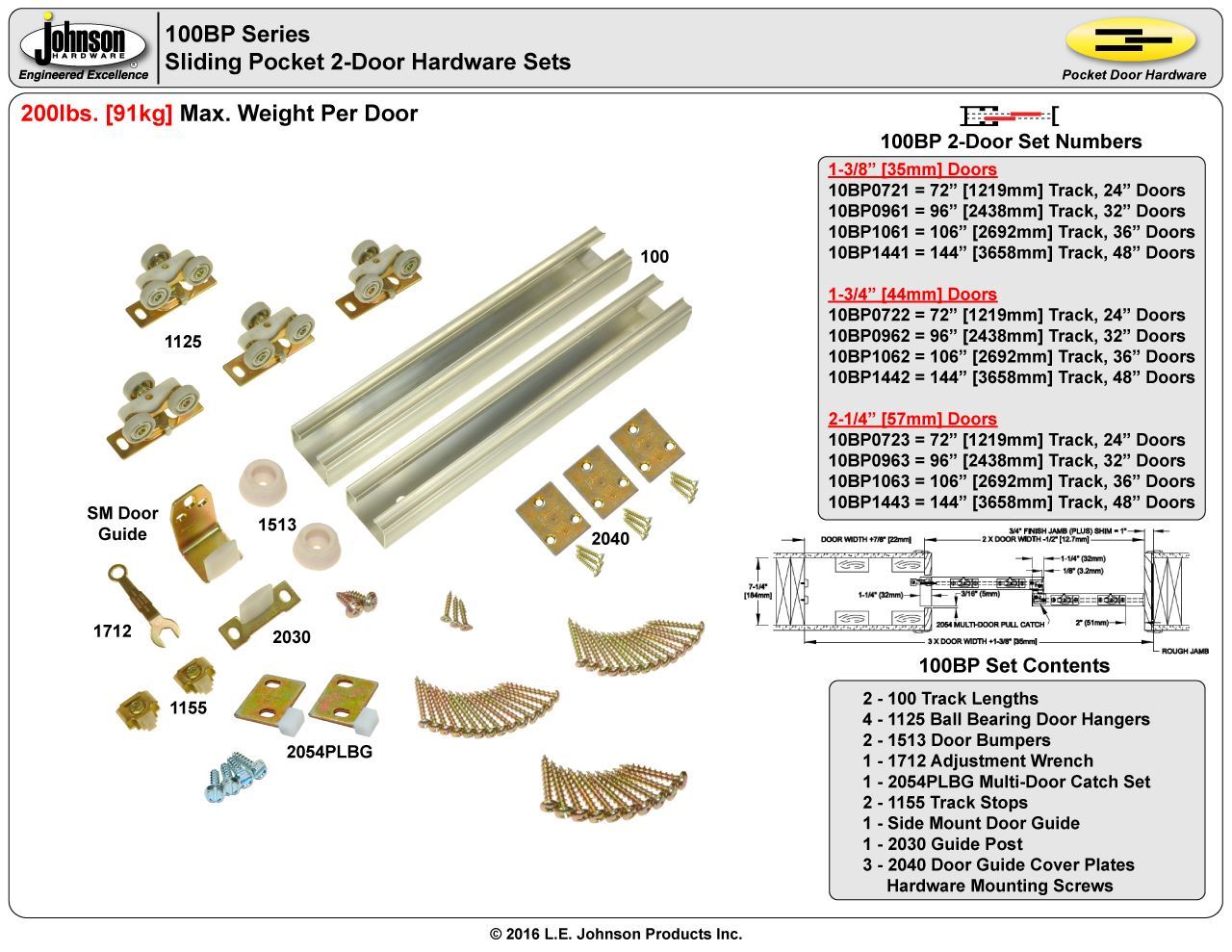

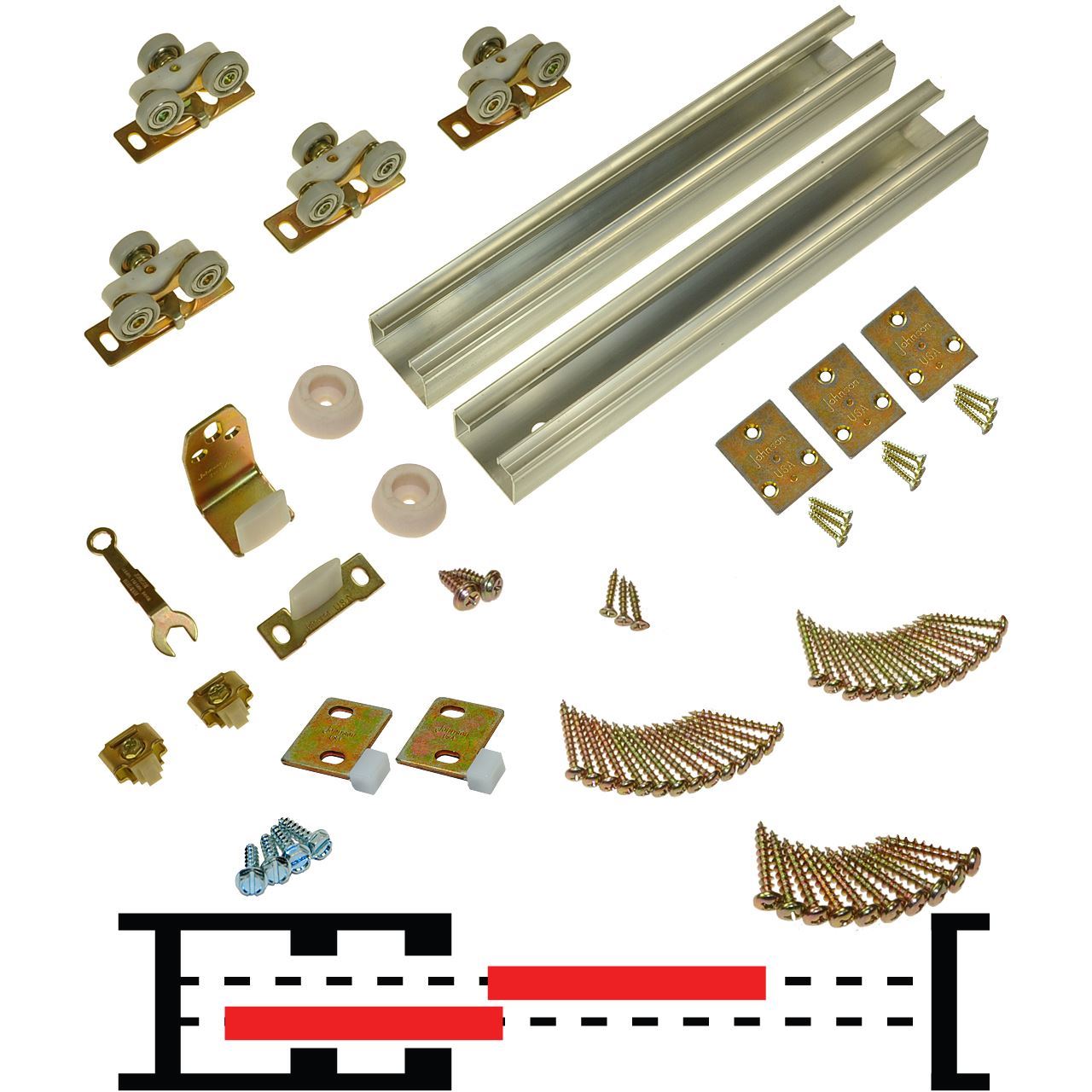

10BP0962 100BP 32" (1-3/4") x 2-Door Bypass Pocket Door Hardware Set

$168.86
  • 200lbs [91kg] Max. Weight Per Door

  • 32" 2/8 [813mm] x 2 Max. Width Per Door

  • 96" 8/0 [2438mm] x 2 Track Length

  • 1-3/4" [44mm] Door Thickness
  • 7-1/4" (2 x 8) [184mm] Min. Wall Structure Thickness

  • 62" (5' - 2") [1575mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 100BP Installation Instructions
    Manufacturer part number: 10BP0962
    Products specifications
    Hardware Sets2-Door
    Max. Door Width32" X 2 (2' - 8" X 2) [813mm X 2]
    Track Length96” x 2 (8' - 0" x 2) [2438mm x 2]
    Door Thickness1-3/4" [44mm]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
    Products specifications
    Hardware Sets2-Door
    Max. Door Width32" X 2 (2' - 8" X 2) [813mm X 2]
    Track Length96” x 2 (8' - 0" x 2) [2438mm x 2]
    Door Thickness1-3/4" [44mm]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
