  • 10BC0721 100BC 24" (1-3/8") x 4-Door Bypass Pocket Door Hardware Set
Picture of 10BC0721 100BC 24" (1-3/8") x 4-Door Bypass Pocket Door Hardware Set
Picture of 10BC0721 100BC 24" (1-3/8") x 4-Door Bypass Pocket Door Hardware Set Picture of 10BC0721 100BC 24" (1-3/8") x 4-Door Bypass Pocket Door Hardware Set

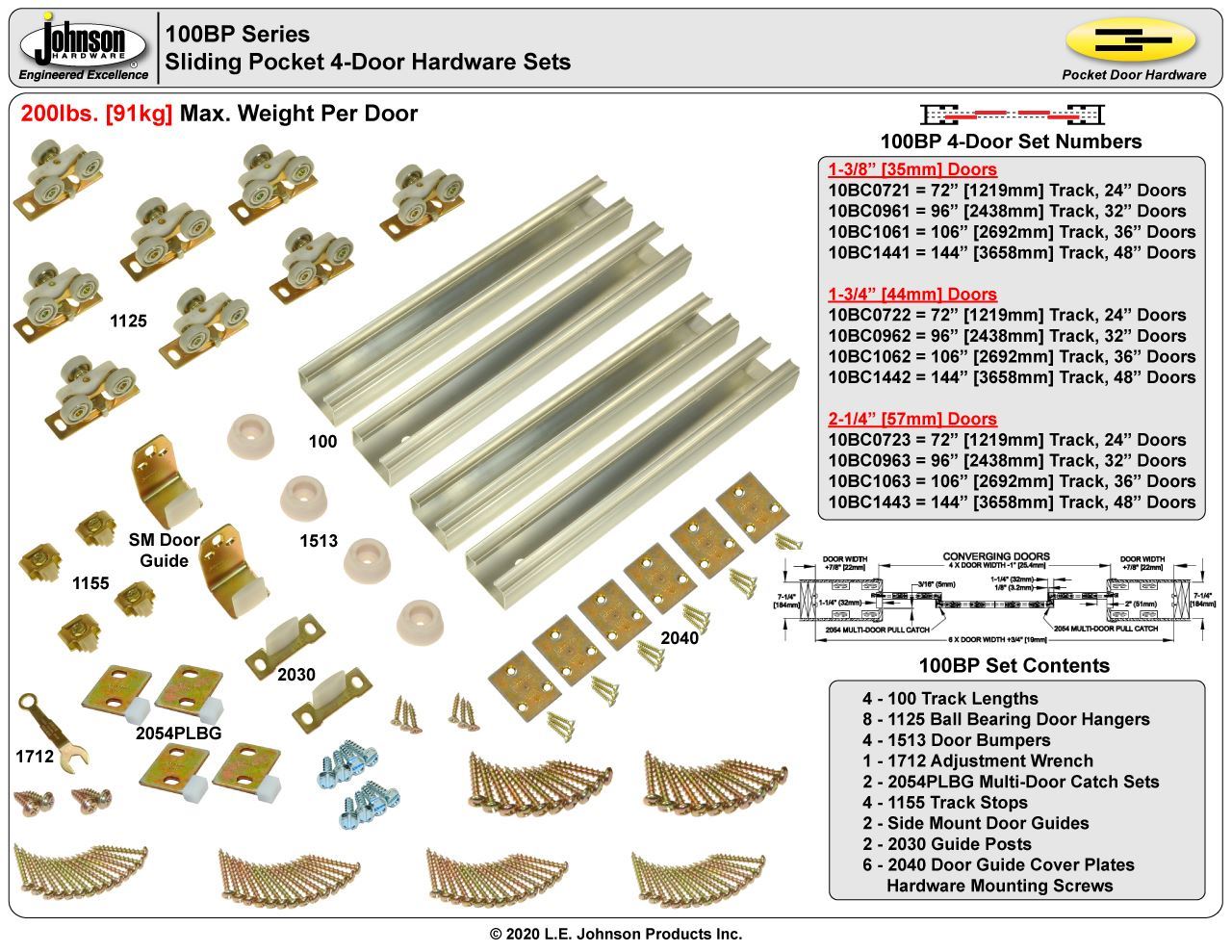

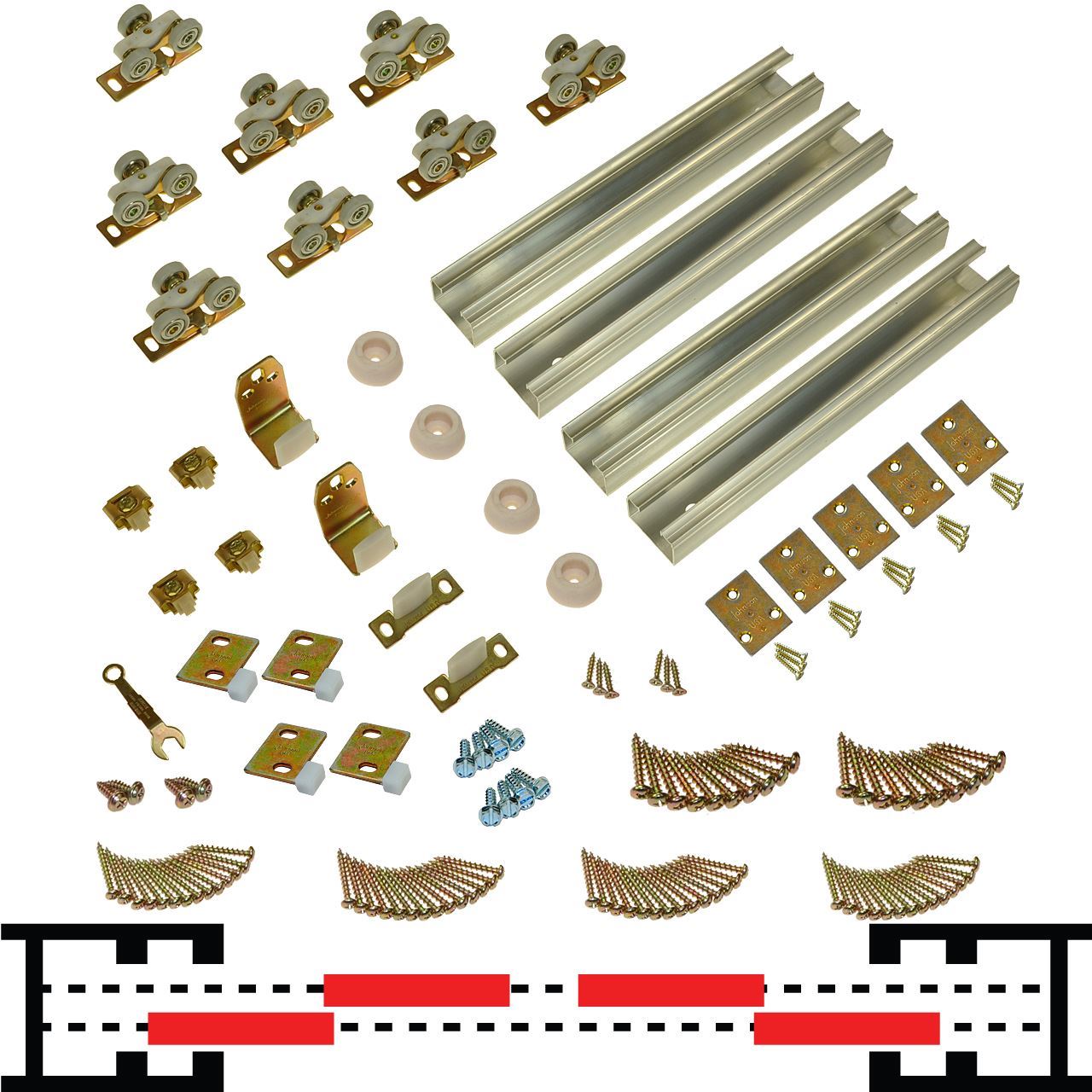

10BC0721 100BC 24" (1-3/8") x 4-Door Bypass Pocket Door Hardware Set

$298.58
  • 200lbs [91kg] Max. Weight Per Door

  • 24" 2/0 [610mm] x 4 Max. Width Per Door

  • 72" 6/0 [1829mm] x 4 Track Length

  • 1-3/8" [35mm] Door Thickness
  • 7-1/4" (2 x 8) [184mm] Min. Wall Structure Thickness

  • 93-1/2" (7' - 9-1/2") [2375mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • 100BP Installation Instructions
    Manufacturer part number: 10BC0721
    Products specifications
    Hardware Sets4-Door Converging
    Door Thickness1-3/8" [35mm]
    Max. Door Width24" X 4 (2' - 0" X 4) [610mm X 4]
    Track Length72" x 4 (6' - 0" x 4) [1829mm x 4]
    Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
