  • 100BC 24" (1-3/4") x 4-Door Bypass Pocket Door Hardware Set

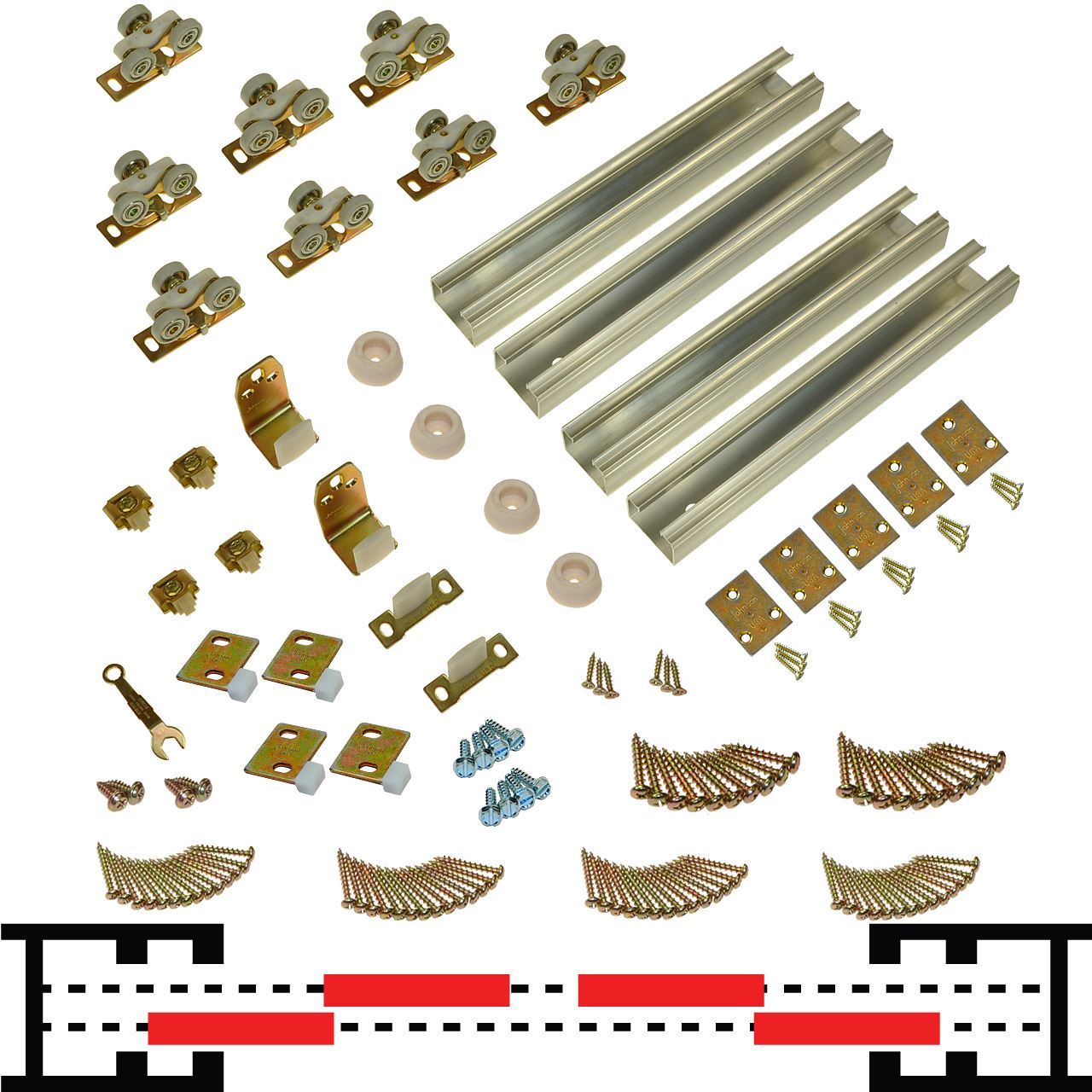

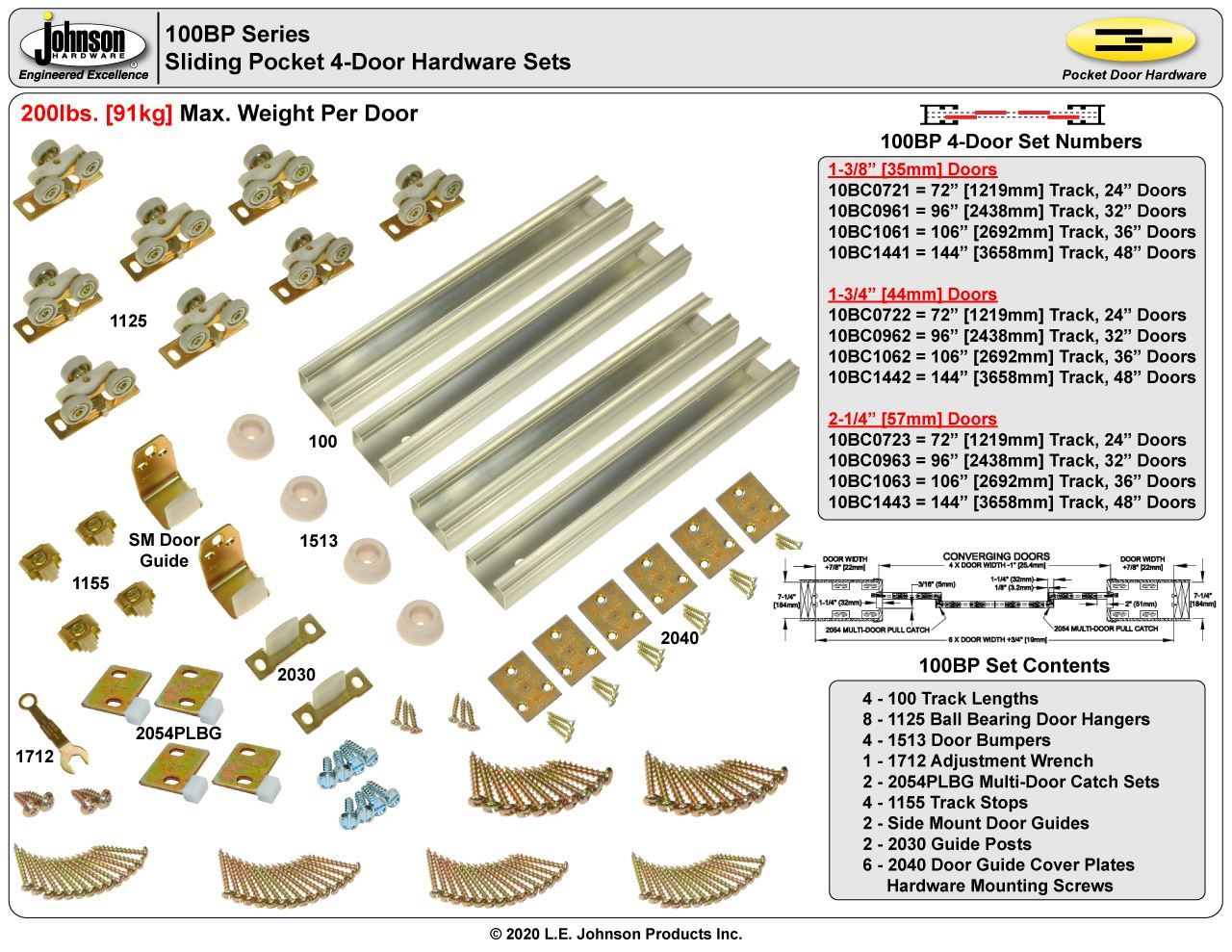

Picture of 100BC 24" (1-3/4") x 4-Door Bypass Pocket Door Hardware Set
Picture of 100BC 24" (1-3/4") x 4-Door Bypass Pocket Door Hardware Set Picture of 100BC 24" (1-3/4") x 4-Door Bypass Pocket Door Hardware Set

100BC 24" (1-3/4") x 4-Door Bypass Pocket Door Hardware Set

$322.70
Track Length: 72" x 4 [1829mm x 4]

Door Thickness: 1-3/4" [44mm]

Max Door Width: 24" x 4 [610mm x 4]

Max Opening Width: 93-1/2" (7' - 9-1/2") [2375mm]

Max Door Weight: 200lbs [91kg.] Each

Manufacturer part number: 10BC0722
Products specifications
Hardware Sets4-Door Converging
Door Thickness1-3/4" [44mm]
Max. Door Width24" X 4 (2' - 0" X 4) [610mm X 4]
Track Length72" x 4 (6' - 0" x 4) [1829mm x 4]
Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
Products specifications
Hardware Sets4-Door Converging
Door Thickness1-3/4" [44mm]
Max. Door Width24" X 4 (2' - 0" X 4) [610mm X 4]
Track Length72" x 4 (6' - 0" x 4) [1829mm x 4]
Min. Wall Structure Thickness7-1/4" (2 x 8) [184mm]
