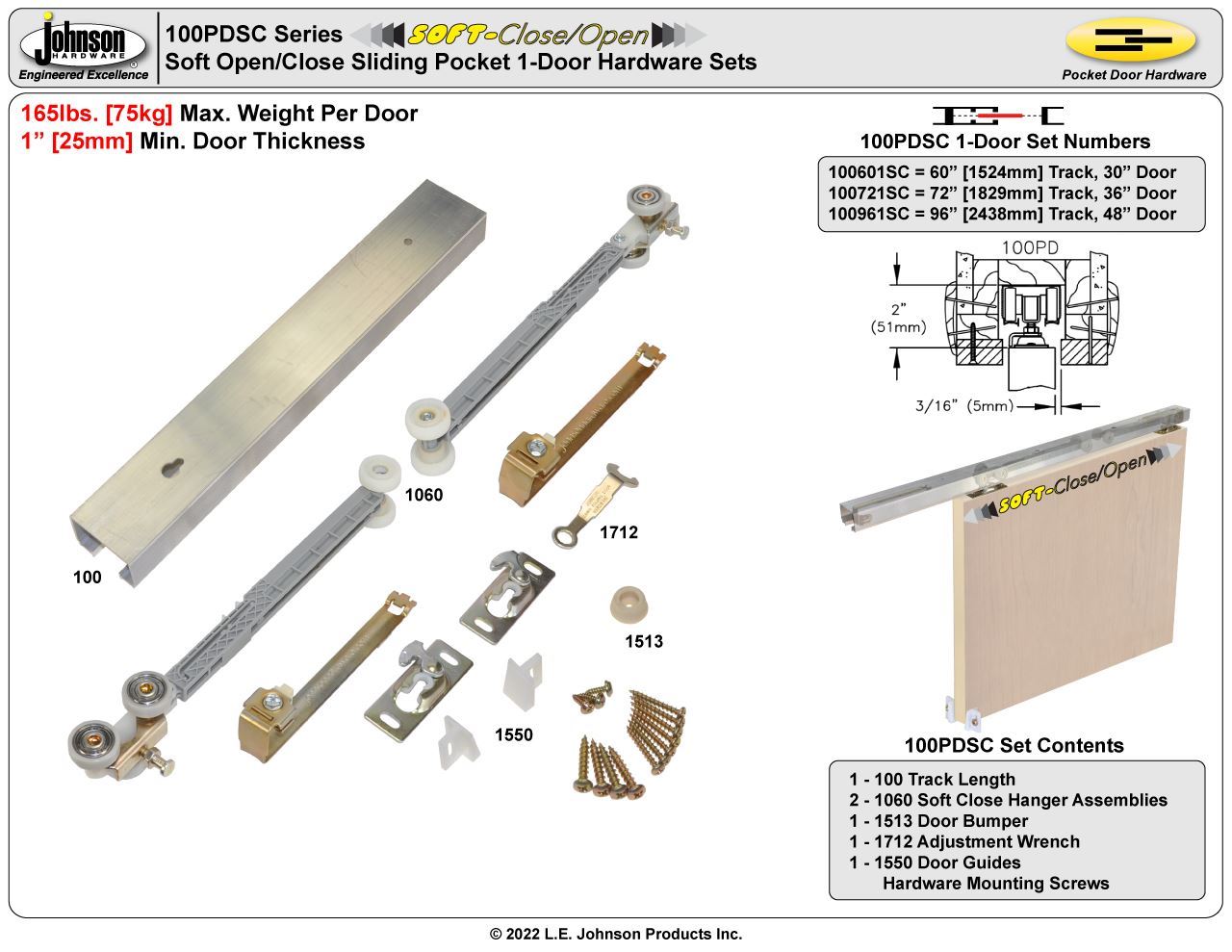

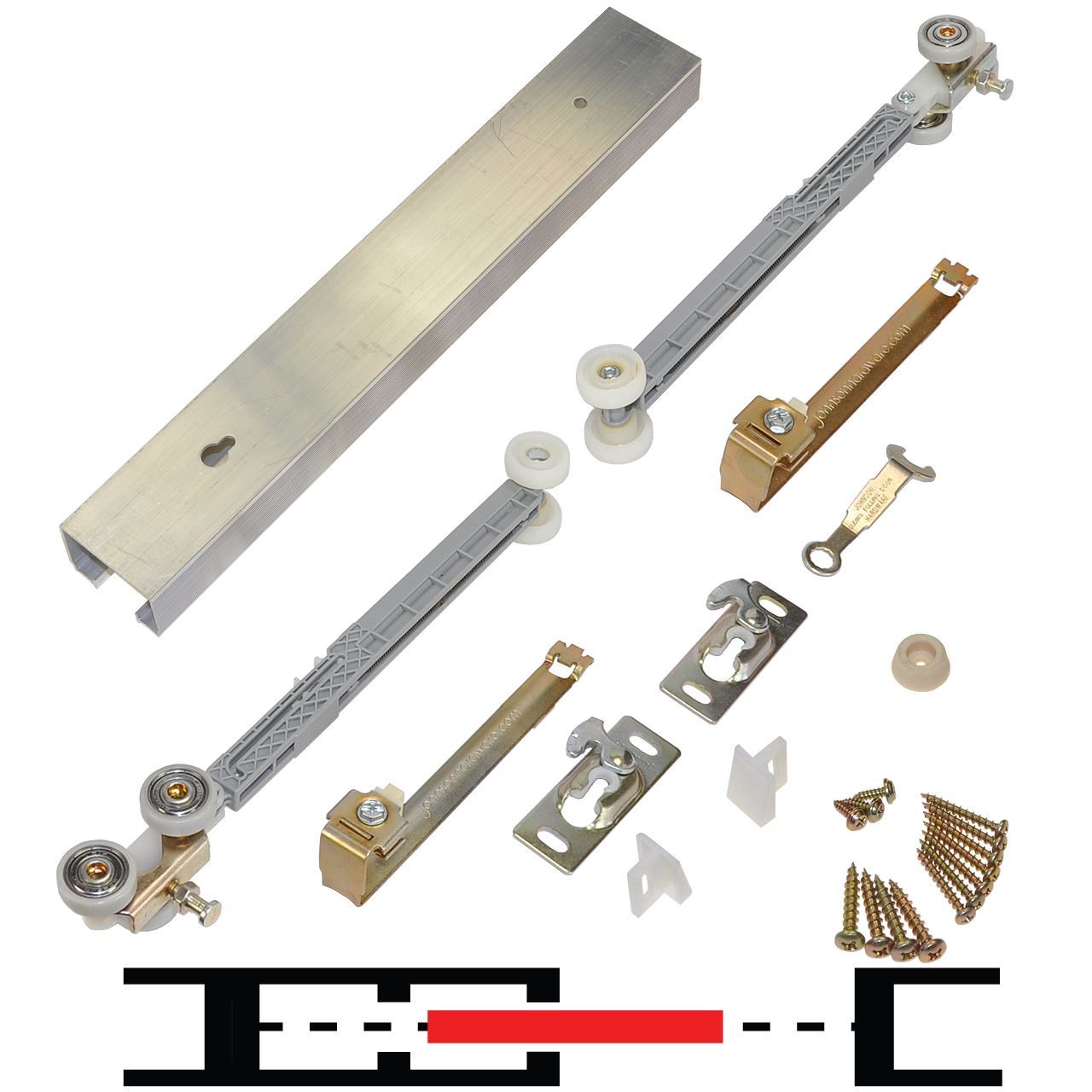

100721SC 100PDSC 1-Door Hardware Set, 72" Track

$137.63
  • 165lbs [75kg] Max. Per Door

  • 72" 6/0 [1829mm] Track Length
  • 36" 3/0 [914mm] Max. Door Width

  • 1" [25mm] Min Door Thickness
  • Bi-Directional Soft Operation Hanger Type

  • Commercial Grade Pocket Door Hardware

    • 100PD Installation Instructions
    1060 Soft-Close Instructions
    1060 Soft-Close Dimensions

    28" 2/4 [711mm] min. door width for bidirectional soft operation

    20" 1/8 [508mm] min. door width for single direction soft operation
    Manufacturer part number: 100721SC
    Products specifications
    Hardware Sets1-Door Soft-Open/Close Hardware Sets
    Track Length72" (6' - 0") [1829mm]
    Max. Door Width36" (3'- 0") [914mm]
    Max. Weight Per Door165lbs. [75kg]
    Products specifications
    Hardware Sets1-Door Soft-Open/Close Hardware Sets
    Track Length72" (6' - 0") [1829mm]
    Max. Door Width36" (3'- 0") [914mm]
    Max. Weight Per Door165lbs. [75kg]
