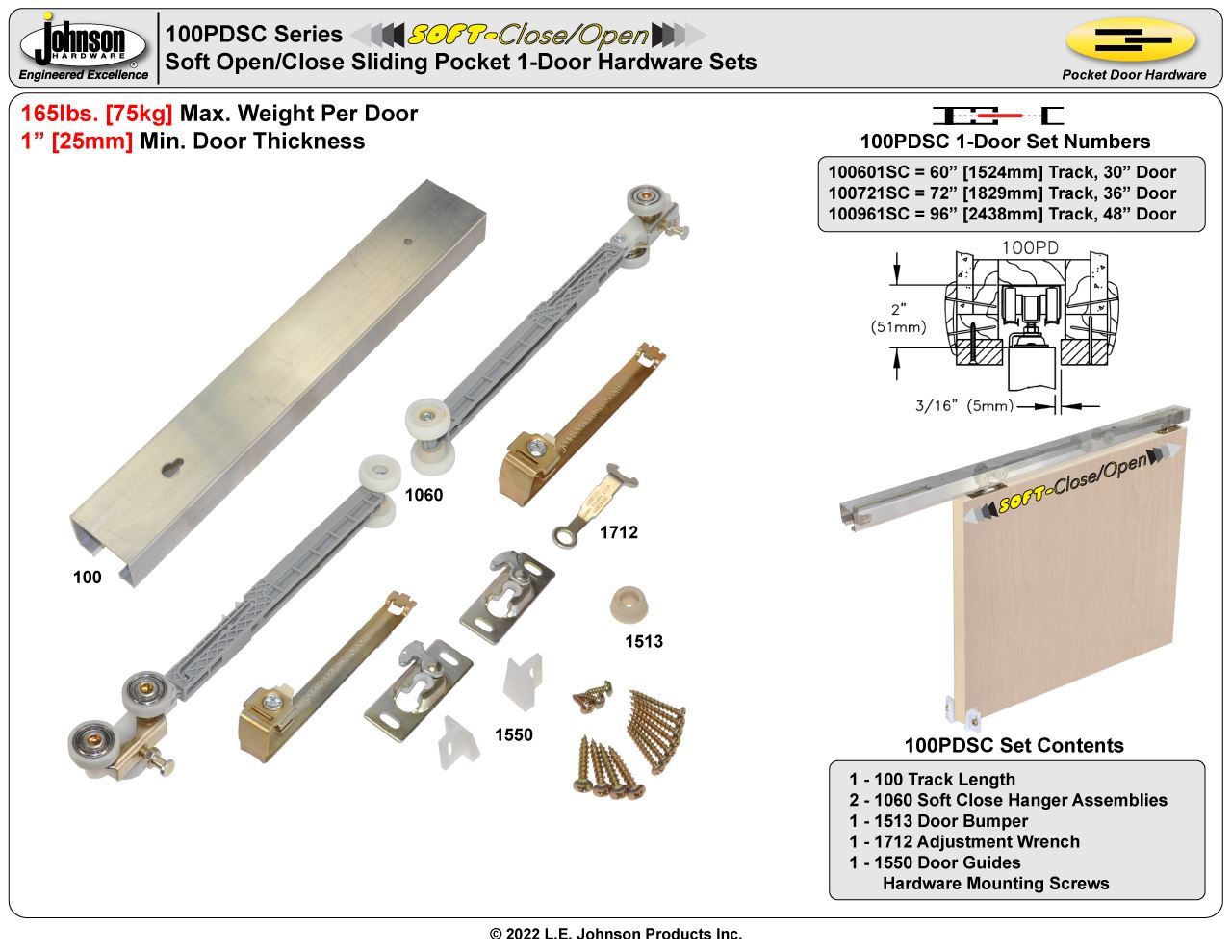

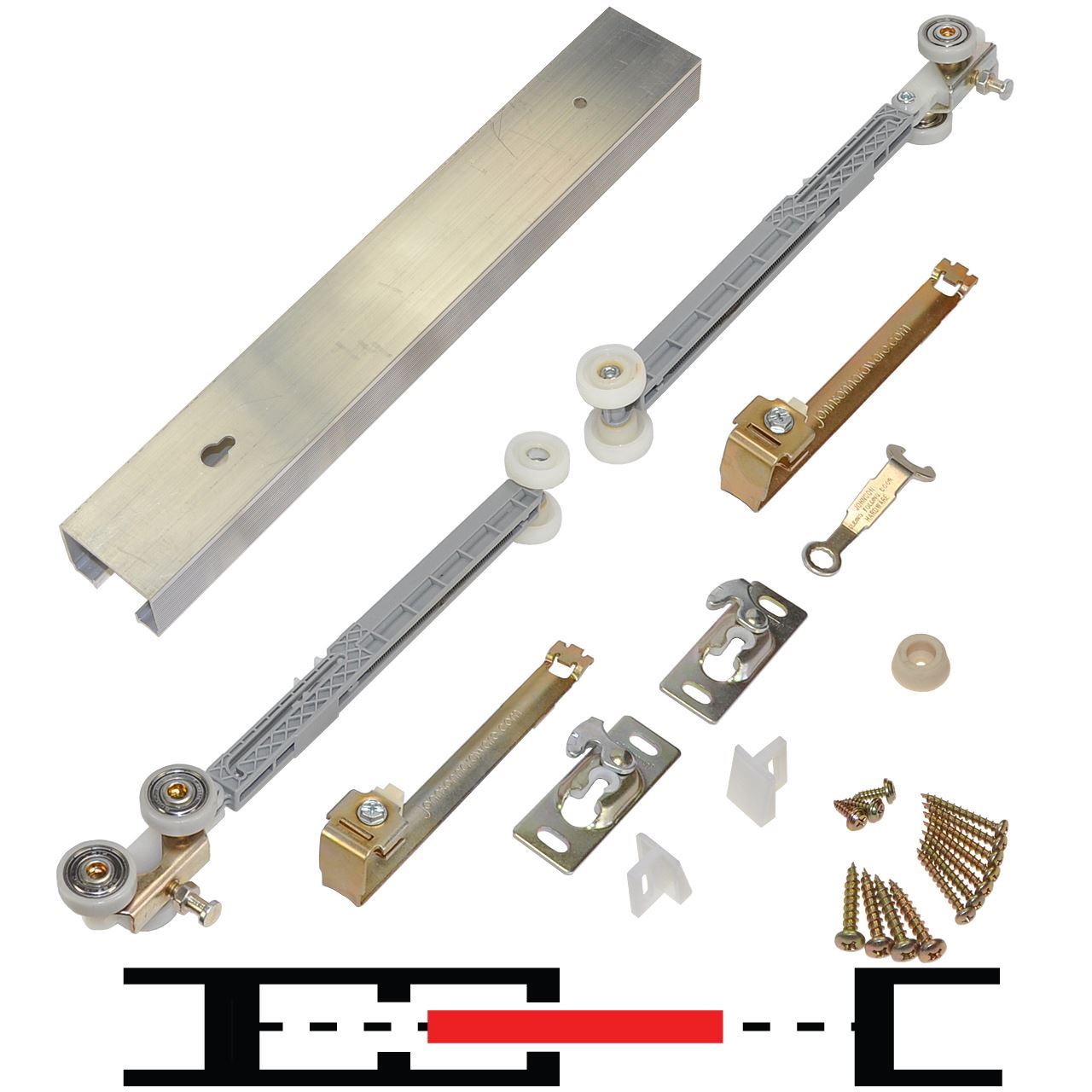

100601SC 100PDSC 1-Door Hardware Set, 60" Track

$132.31
  • 165lbs [75kg] Max. Per Door

  • 60" 5/0 [1524mm] Track Length
  • 30" 2/6 [762mm] Max. Door Width

  • 1" [25mm] Min Door Thickness
  • Bi-Directional Soft Operation Hanger Type

  • Commercial Grade Pocket Door Hardware

    • 100PD Installation Instructions
    1060 Soft-Close Instructions
    1060 Soft-Close Dimensions

    28" 2/4 [711mm] min. door width for bidirectional soft operation

    20" 1/8 [508mm] min. door width for single direction soft operation
    Manufacturer part number: 100601SC
    Products specifications
    Hardware Sets1-Door Soft-Open/Close Hardware Sets
    Track Length60" (5' - 0") [1524mm]
    Max. Door Width30" (2'- 6") [762mm]
    Max. Weight Per Door165lbs. [75kg]
